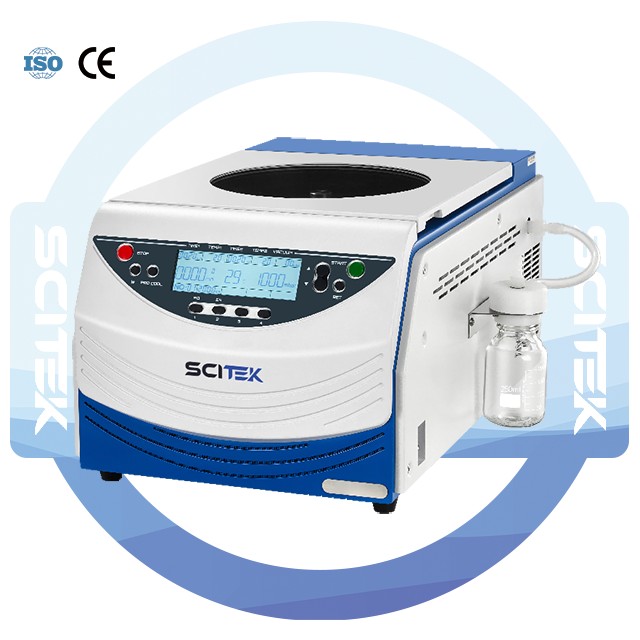

Integrated Vacuum Centrifugal Concentrator

Integrated Vacuum Centrifugal Concentrator

This device features an integrated vacuum pumping system, eliminating the requirement for an external vacuum pump.

Model: VCC-R3
Speed Range: 800–2000 rpm
Maximum Centrifugal Force: 530 ×g
Temperature Control Range: 30℃ to 100℃
Standard Rotor: 90×1.5/2 mL
Ultimate Vacuum Value: <13 mbar

Share the product

Warning: call_user_func_array() expects parameter 1 to be a valid callback, function 'wpb_pcf_contact_form_button' not found or invalid function name in /www/wwwroot/www.scitekuae.com/wp-includes/class-wp-hook.php on line 341

分类： Centrifugal Vacuum Concentrators 标签： Centrifugal Vacuum Concentrator, Vacuum Concentrator

详细资料

Integrated Vacuum Centrifugal Concentrator Feature:

Integrated design with imported corrosion-resistant diaphragm pump.
Teflon-coated chamber and pump head for corrosion resistance.
One-button start/stop prevents misoperation.
Auto vacuum release on power failure with exhaust function.
Preset programs for water/ethanol; 30 user programs.
Two-stage temperature control ensures sample safety.

Specification of Vacuum Centrifugal Concentrator:

Model	VCC-R3
Speed Range	800–2000 rpm
Maximum Centrifugal Force	530 ×g
Time Range	1–9999 mins
Temperature Control Range	30 ℃ to 100 ℃
Ultimate Vacuum Value	<13 mbar
Pumping Speed	33 L/min
Noise	≤ 60 dB (A)
Power	1150 W
Standard Rotor	90×1.5/2 mL
Power Supply	AC 220/110 V, 50/60Hz, 10 A
Overall Dimension (W×D×H)	608×370×299 mm
Shipping Size (W×D×H)	710×480×480 mm
N.W/G.W	37.9/50 kg
Optional	Rotor, Cold Trap（CT-M50/CT-M80）

Specification of Rotor:

Type	Aperture (Number and Capacity of Sample Tube)
Standard	90×1.5/2 mL
Optional	24×5 mL+66×1.5 mL
	72×5 mL(Round bottom)
	24×8×0.2 mL
	8×50 mL(Conical bottom)
	20×15 mL(Conical bottom)
	64×2 mL(Glass vial)
	2×96 Microplate
