- Model : IDO-45; IDO-80; IDO-140; IDO-250
- Capacity : 43L / 81L / 138L / 252L
- Circulation Mode : Natural convection
- Temperature Range: RT+5~300℃
- Timer : 0~9999min
Infrared Fast Heating Drying Oven
Infrared Fast Heating Drying Oven Feature:
- Forced convection circulation ensures excellent performance and reliability in air drying.
- Wide temperature range for diverse applications.
- Digital LCD display for precise control of operating parameters.
- Timed wait function adds convenience to the drying process.
- Corrosion-resistant construction for enhanced durability and robustness.
- Configurable racks offer flexibility for various sample loads.
- Multiple safety features ensure secure operation.

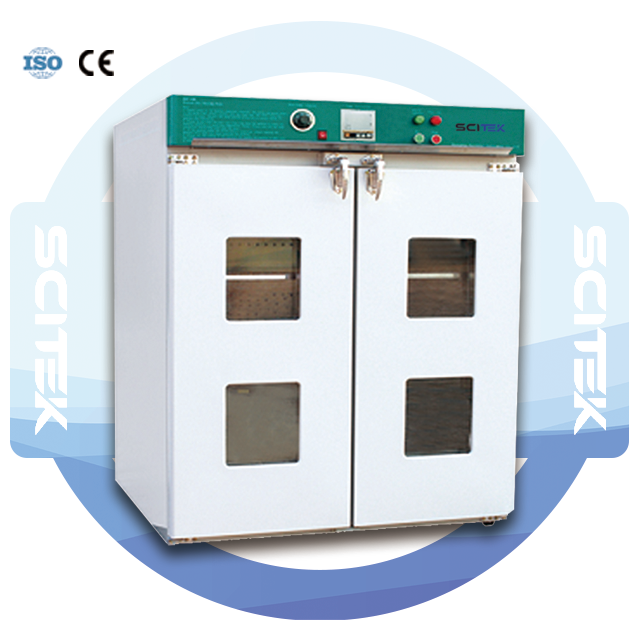

Infrared Fast Heating Drying Oven Specifications:
| Model | FDO-640B/ FDO-640 | FDO-1000B/ FDO-1000 | FDO-1300B/ FDO-1300 | FDO-1870B/ FDO-1870 | FDO-3070B/ FDO-3070 | |
| Capacity(L) | 640 | 1000 | 1300 | 1870 | 3070 | |
| Circulation Mode | Forced convection | |||||
| Size(WxDxH) | Internal (mm) | 800x800x1000 | 1000x1000x1000 | 1000x1000x1300 | 1200x1200x1300 | 1600x1200x1600 |
| External (mm) | 940x1000x1400 | 1040x1200x1400 | 1230x1200x1670 | 1330x1400x1670 | 1750x1400x1900 | |
| Temperature | Range (℃) | RT+10~250℃ | RT+10~300℃ | |||
| Fluctuation (℃) | ±1 | |||||
| Resolution (℃) | 0.1 | |||||
| Uniformity (℃) | ±3% | |||||
| Sensor | PT100 | |||||
| Controller | PID | |||||
| Display | Digital LCD | |||||
| Timer | 0~9999min(with timing wait function) | |||||
| Material | Internal | B: Iron sheet, Without B: Stainless steel | ||||
| External | Galvanized sheet electrostatic spraying exterior | |||||
| Shelves (Standard / Max ) | 2/11 | 2/11 | 2/15 | 2/15 | 2/18 | |
| Exhaust Hole | On top or side | |||||
| Safety Device | One key to start overheat power off | |||||
| Electricity | Voltage/ Frequency | 380V, 50/60Hz | ||||
| Consumption (W) | 6000 | 6600 | 9000 | 12000 | 15000 | |
| N.W./G.W. (kg) | 130/200 | 190/260 | 280/350 | 410/480 | 700/800 | |
| Shipping Size (WxDxH)(mm) | 1060x1190x1520 | 1260x1290x1520 | 1350x1300x1890 | 1550x1500x1890 | 1870x1620x2230 | |
| Optional | Programmed temperature control instrument, spare shelf, RS485 interface, printer | |||||
Applications of Forced Air Drying Oven:
- Drying laboratory glassware and instruments.
- Preparing samples for analysis by removing moisture.
- Curing and drying coatings, adhesives, and paints.
- Sterilizing medical equipment and materials.
- Conducting stability and aging tests on various products.
