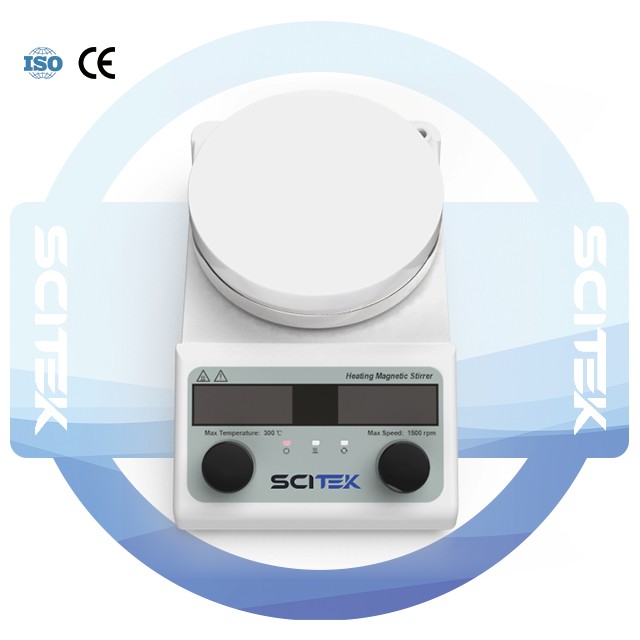

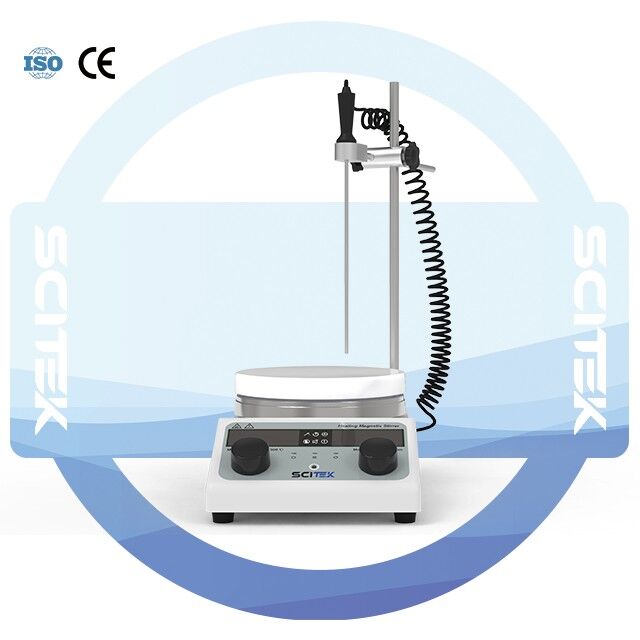

Hotplate Magnetic Stirrer, HMS-300 Series

HMS-300 & HMS-300P are hotplate magnetic stirrers equipped with an LED display for real-time monitoring of stirring speed and temperature.

Advantage:

Ceramic heating plate: Corrosion-resistant, easy to clean.
Brushless DC motor (BLDC): Lower noise and longer service life.
High-temperature resistant high-strength magnet.
High-quality material: High-molecular high-temperature resistant shell, durable and long-lasting.
Additional functions: Equipped with timing, forward/reverse rotation, locking, and other functions.

Speciﬁcation:

Model	HMS-300	HMS-300P
Work Plate Dimension	138×138 mm
Work Plate Material	Aluminum cover with ceramic coating
Motor Type	Brushless DC motor
Stirring Position	1
Max. Stirring Quantity [H₂O]	3 L
Speed Range	200–1500 rpm	100–1500 rpm (forward/reverse rotation)
Control Accuracy of Sensor	±10 rpm
Speed Display	LED
Temperature Display	LED
Heating Temperature Range	Room temp. ±5 ℃ to 300 ℃
Over Heat Protection	320 ℃
Temperature Display Accuracy	1 ℃
External Temperature Sensor	PT1000 (accuracy ±0.5 ℃)
Timer	99 h 59 min 59 s (count-down timer)	99 h 59 min 59 s (count-down timer/count-up timer)
Alarm Function	N/A	Alarm、lock
Motor Rating Output	9 W
Heating Output	320 W
Voltage	100–120/200–240 V, 50/60 Hz
Permissible Ambient Temperature and Humidity	5–40 ℃, 80% RH
Shipping Size (W×D×H)	300×200×150 mm
G.W	2.1 kg
