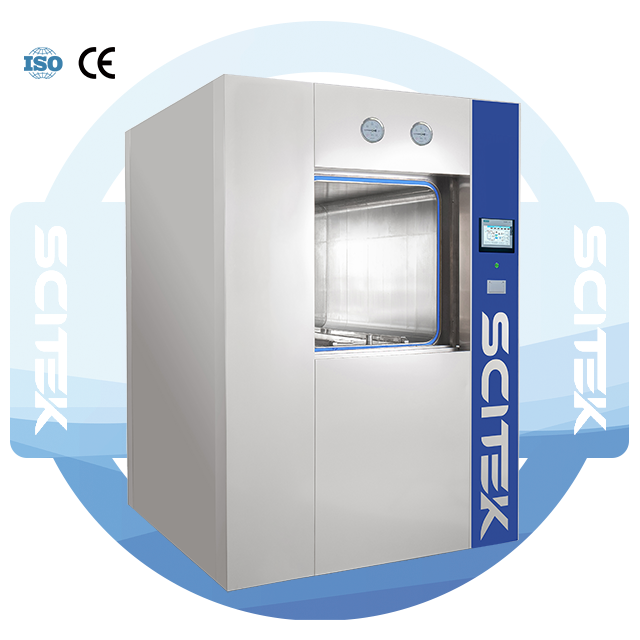

Horizontal Pulse Vacuum Autoclave with Lift Door

Model : ST-BV150PV; ST-BV180PV; ST-BV250PV; ST-BV300PV; ST-BV360PV; ST-BV450PV; ST-BV600PV; ST-BV800PV
Volume(L) : 150 / 180 / 250 / 300 / 360 / 450 / 600 / 800
Chamber Design Pressure : -0.1/0.3MPa
Generator Design Pressure : 1MPa
Design Temperaure : 150℃
Maximum Operating Temperature : 139℃

Share the product

Horizontal Pulse Vacuum Autoclave Feature:

The lift door switch features a motor-driven chain for vertical sliding, saving space and eliminating manual operation. It has interlocking double doors with pressure and temperature safety interlocks for liquid programs.
The inflatable sealing ring uses tear-resistant silicone rubber with a special coating for durability and enhanced sealing, lasting up to 1500 cycles.
Its rectangular structure includes a European-style circular rib clamp-on flange, with welded sealing grooves.
A Siemens PLC and touch screen enable full automation, displaying process status, curves, and key parameters.
The MNcold IoT module supports real-time remote monitoring, fault alerts, and software updates via computer, tablet, or smartphone.

Horizontal Pulse Vacuum Autoclave Specification:

Model	ST-BV150PV	ST-BV180PV	ST-BV250PV	ST-BV300PV	ST-BV360PV	ST-BV450PV	ST-BV600PV	ST-BV800PV
Chamber Size (WxHxD)(mm)	450×450×750	450×450×900	550×550×845	550×550×1000	610×610×1000	652×690×1000	652×690×1350	652×690×1800
Volume (L)	150	180	250	300	360	450	600	800
Overall Sizes (LxWxH)(mm)	1045×1120×1800	1185×1120×1800	1200×1290×1850	1350×1290×1850	1350×1350×1850	1350×1400×1950	1700×1400×1950	2150×1400×1950
Steam Consumption (KG/C)	12	12	16	18	20	22	35	52
Water Consumption (KG)	80	90	120	140	160	180	320	400
Power	380V, 50HZ, 2KW+(12KW)	380V, 50HZ, 2KW+(15KW)	380V, 50HZ, 2KW+(20KW)	380V, 50HZ, 2KW+(20KW)	380V, 50HZ, 2KW+(20KW)	380V, 50HZ, 2KW+(30KW)	380V, 50HZ, 3KW+(36KW)	380V, 50HZ, 3.5KW+(48KW)
Shipping Size (Main Machine) (WxDxH)(mm)	1210×1280×2110	1350×1270×2100	1350×1450×2100	1500×1400×2100	1470×1500×2150	1500×1550×2200	1850×1550×2250	2150×1430×2250
Shipping Size (Sterilizer Loading Cart)(WxDxH)(mm)	–	–	1420×800×1050(S)	–	1600×750×1100(S)	–	–	–
Shipping Size (Sterilizer Loading Cart)(WxDxH)(mm)	–	–	1420×1200×1050(D)	1500×1150×960(D)	–	1450×1150×1050(D)	1900×1150×1050(D)	2350×1350×1100(S)
Total shipping sizes = Main machine + Sterilizer Loading Carts;
N.W./G.W. (kg)	520/670	560/710	745/895	820/970	870/1020	965/1115	1150/1300	1350/1500
Chamber Design Pressure	-0.1/0.3MPa
Jacket Design Pressure	0.3MPa
Generator Design Pressure	1MPa
Design Temperaure	150℃
Maximum Operating Temperature	139℃
Maximum Operating Pressure	0.25MPa
Chamber Relief Valve	0.28MPa
Jacket Relief Valve	0.28MPa
Accuracy of Temperature	0.1℃
Accuracy of Pressure	0.1KPa
Sterilization Temperature Control Accuracy	±1℃
Temperature Uniformity	±1℃
Negative Pressure Pulsating Vacuum	-80~0KPa
Across the Pressure Pulsation	-80~80KPa
Positive Pressure Pulse	0~9 times
Maximum Vacuum	-96KPa
