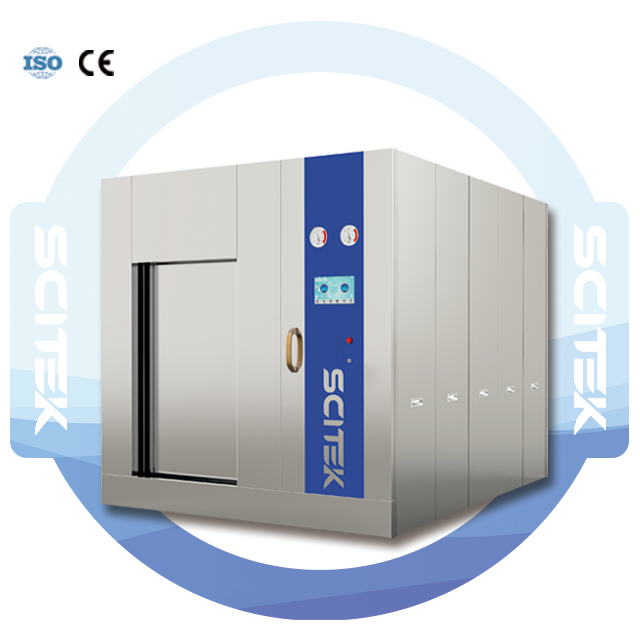

Horizontal Pulse Vacuum Autoclave Sliding Door

Horizontal Pulse Vacuum Autoclave Feature:

The translation door features an anti-pinch function. The double-door design includes pressure and temperature interlocks for liquid processes, ensuring comprehensive safety.
The high-efficiency automatic sealing ring offers excellent sealing with a lifespan of up to 1500 cycles, ensuring long-term stable performance.
The main structure includes a European ring reinforcement jacket, PLC programmable controller, and color touchscreen.
Customizable programs cover aseptic clothing, utensils, rubber, liquids, media, waste, sterilization, and more, including BD and vacuum leakage tests.
The vacuum autoclave comes with a built-in micro-needle printer and paperless recorder for easy tracking and documentation.

Horizontal Pulse Vacuum Autoclave Specification:

Model	ST-BVH1200PV	ST-BVH1500PV	ST-BVH2000PV	ST-BVH2500PV	ST-BVH3000PV	ST-BVH6000PV	ST-BVH6700PV	ST-BVH13600PV
Capacity(L)	1200	1500	2000	2500	3000	6000	6700	13600
Interior Design Pressure	-0.1~03MPa
Jacket Design Pressure	0.3MPa
Design Temperature	150℃
Max Working Temperature	139℃
Max Working Pressure	0.25MPa
Vacuum Leakage Rate	≤0.13KPa/min
Final Vacuum	-96KPa
Opening Pressure of the Inner Chamber Safety Valve	0.28MPa
Jacket Safety Valve Opening Pressure	0.28MPa
Sterilization Temperature Control Precision	0-2℃
Temperature Uniformity Negative Pressure	±0.5℃
Pulsating Vacuum Negative Value and Number	Amplitude -80~0KPa, frequency 1~99
Number of Pulsations Across Pressure	Amplitude -80 ~80KPa, frequency 1
Number of Positive Pressure Pulsations	1~3
Inner Tank Size (WxH) (mm)	680×1180	680×1180	900×1380	900×1380	900×1380	900×1380	1250×1380	1250×1380
Depth	1500	1800	1620	2020	2400	4800	3910	7850
Overall Size (LxWxH)(mm)	2007x2710x2173	2357x2110x2713	1950x2750x2200	2300x2750x2200	2700x2750x2200	5400x2750x2200	5400x3200x2200	8500x3200x2200
Weight(kg)	2300	2450	3000	3600	3800	6600	7000	11000
Gas Consumption (Kg/c)	65	80	100	120	150	320	350	620
Water Consumption (Kg/c)	600	750	900	1100	1300	2400	2600	4800
Power Supply	380V,50Hz	380V,50Hz	380V,50Hz	380V,50Hz	380V,50Hz	380V,50Hz	380V,50Hz	380V,50Hz
Consumption	3.5kw+(73kw)	3.5kw+(90kw)	4.5kw	6kw	8kw	12kw	12kw	24kw
