- Model : ST-H60PV; ST-H80PV; ST-H100PV; ST-H135PV; ST-H150PV; ST-H185PV; ST-H200PV; ST-H300PV; ST-H450PV
- Capacity (L) : 60 / 80 / 100 / 135 / 150 / 185 / 200 / 300 / 450
- Sterilization Temperature (℃) : 105~136
- Max. Sterilization Pressure (Mpa) : 0.23

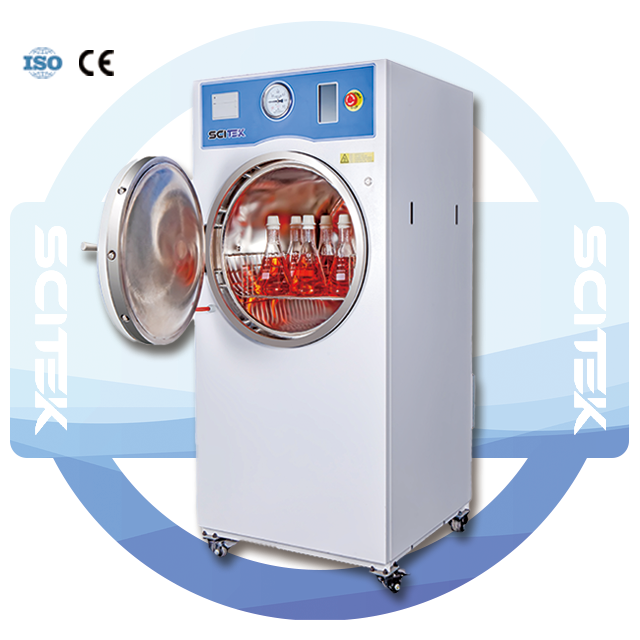

Horizontal Pulse Vacuum Autoclave HPV Series
Horizontal Pulse Vacuum Autoclave Feature:
- Overheat protection: Auto heating cut-off with alarms if overheated.
- Interlock safety: Prevents operation with an unlocked door or pressurized chamber.
- Door-temperature interlock: Blocks door opening until liquids cool 20℃ below boiling.
- Anti-burning protection: Auto heating cut-off with alarms if water is insufficient.
- Steam pressure valve: Activates if chamber pressure exceeds the limit.
- LCD touch screen enables easy control of full sterilization cycles.
Horizontal Pulse Vacuum Autoclave Specification:
| Model | ST-H60PV | ST-H80PV | ST-H100PV | ST-H135PV | ST-H150PV | ST-H185PV | ST-H200PV | ST-H300PV | ST-H450PV |
| Capacity | 60L | 80L | 100L | 135L | 150L | 185L | 200L | 300L | 450L |
| External Size (WxDxH)(mm) | 985x600x1450 | 985x600x1450 | 1200x600x1450 | 1000x710x1550 | 1330x710x1550 | 1250x710x1550 | 1320x710x1550 | 1350x900x1750 | 1750x900x1750 |
| Chamber Size (ØxH)(mm) | Ø386×500 | Ø386×700 | Ø386×950 | Ø500×700 | Ø500×780 | Ø500×95 | Ø500×1000 | Ø650×950 | Ø650×1360 |
| Chamber Material | SUS304 | ||||||||
| Sterilization Temperature | 105~136 ℃ | ||||||||
| Designed Temperature | 150℃ | ||||||||
| Max.Working Temperature | 136 ℃ | ||||||||
| Temp.Accuracy | 0.1℃ | ||||||||
| Temp.Uniformity | ≤±0.5℃ | ||||||||
| Designed Pressure | -0.1/0.3Mpa | ||||||||
| Sterilization Pressure | 0.23Mpa | ||||||||
| Pressure Resolution | 0.1KPa | ||||||||
| Ultimate Vacuum | -0.096MPa | ||||||||
| Temp. Controller | PID control by microprocessor | ||||||||
| Display | LCD touch screen | ||||||||
| Drying Function | YES | ||||||||
| Drying Time | 15min | ||||||||
| Sterilization Program | ●Medical instrument program ●Luminal instruments ●Dressings program ●Rubber program ●Liquid program ●BD Test program ●Vacuum Test progrm
Sterilization of medical dressing, medical Instruments, Instruments with cavity, Rubber, liquids plus 4 user-customized programs BD Test and vacuum test. |
||||||||
| Power Consumption | 5.7KW | 6.6KW | 6.6KW | 12KW | 12KW | 12KW | 12KW | 20KW | 20KW |
| Power Supply | 380V 50Hz | 380V 50Hz | 380V 50Hz | 380V 50Hz | 380V 50Hz | 380V 50Hz | 380V 50Hz | 380V 50Hz | 380V 50Hz |
| Standard Sterilization Shelf | 1pcs | 1pcs | 1pcs | 1pcs | 1pcs | 1pcs | 1pcs | 1pcs | 1pcs |
| Standard Accessories | Printer | ||||||||
| Net Weight | 105kg | 120kg | 140kg | 225kg | 240kg | 255kg | 265kg | 350kg | 480kg |
| Gross Weight | 165kg | 185kg | 210kg | 315kg | 340kg | 355kg | 380kg | 470kg | 570kg |
| Shipping Size (WxDxH)(mm) | 1280x700x1600 | 1280x700x1600 | 1450x700x1600 | 1300x850x1900 | 1400x900x1900 | 1440x930x2020 | 1490x930x2020 | 1650x1100x2120 | 2100x1100x2120 |
WHY SCITEK
- 24 Months Limited Warranty
- CE Standards
- 1-2 Days Handling and 7-30 Days Shipping
