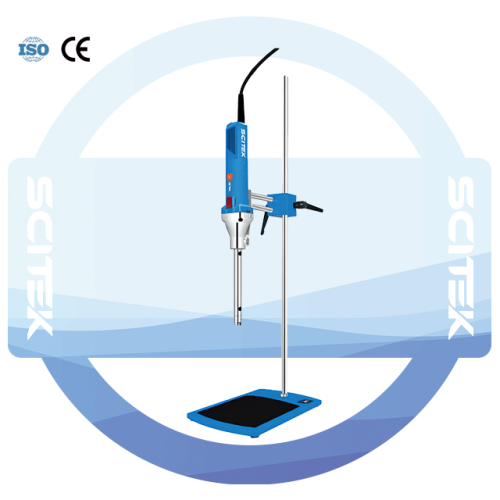

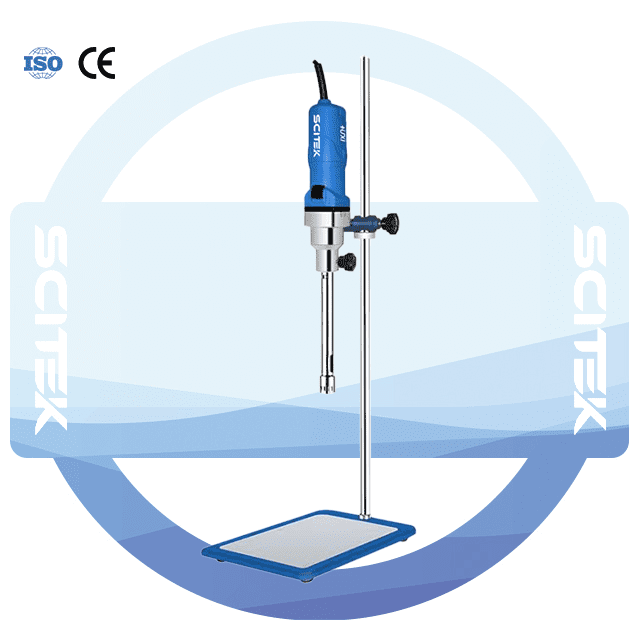

High-shear Homogenizer

The high-shear homogenizer is suitable for a wide range of laboratory applications in sample preparation, toxicology and food science.

  • Model : HMG-H500
  • Range of Rotation : 8000-28000r/min
  • Speed Display : Calibration
  • Speed Mode : Gear speed regulation
  • Material of Contact Material : 316L stainless steel
  • Shipping Size (W×D×H)(mm) : 803×400×140

Share the product

分类: 标签:

The laboratory high shear dispersing and emulsifying machine is dexterous and convenient. It can be operated by hand. High-quality motors are used for more stable operation and lower noise. The high shear homogenizer can run for a long time, a variety of working heads are available, and vacuum operation can be realized, which can easily meet a variety of high-demand dispersion, emulsification, and homogenization experimental requirements.

High shear Homogenizer Advantage:

  • Choose high-quality motor, stable operation, lower noise, long-term operation, safe and reliable design.
  • All parts of the working head contacting materials are made of high-quality stainless steel with good corrosion resistance.
  • The working head is connected with the drive motor by a coupling, which is easy and flexible to disassemble and assemble.
  • Speed governor base adopts stepless governor, convenient speed control and stable operation.

High shear Homogenizer Specification:

Model HMG-H500
Range of Rotation 8000-28000r/min
Processing Capacity 0.2-7000ml (H2O)
Standard Working Head 25G
Input Power 500W
Output Power 320W
Speed Display Calibration
Speed Mode Gear speed regulation
Material of Contact Material 316L stainless steel
Enter the Material Part of the Shaft Sleeve Material PTEE
Proper Temperature ≤120°C
Allowable Ambient Temperature 5-40°C
Process Type Batch processing
Power Supply 220V, 50Hz
Shipping Size (WxDxH)(mm) 803x400x140
N.W/ G W(KG) 3/8

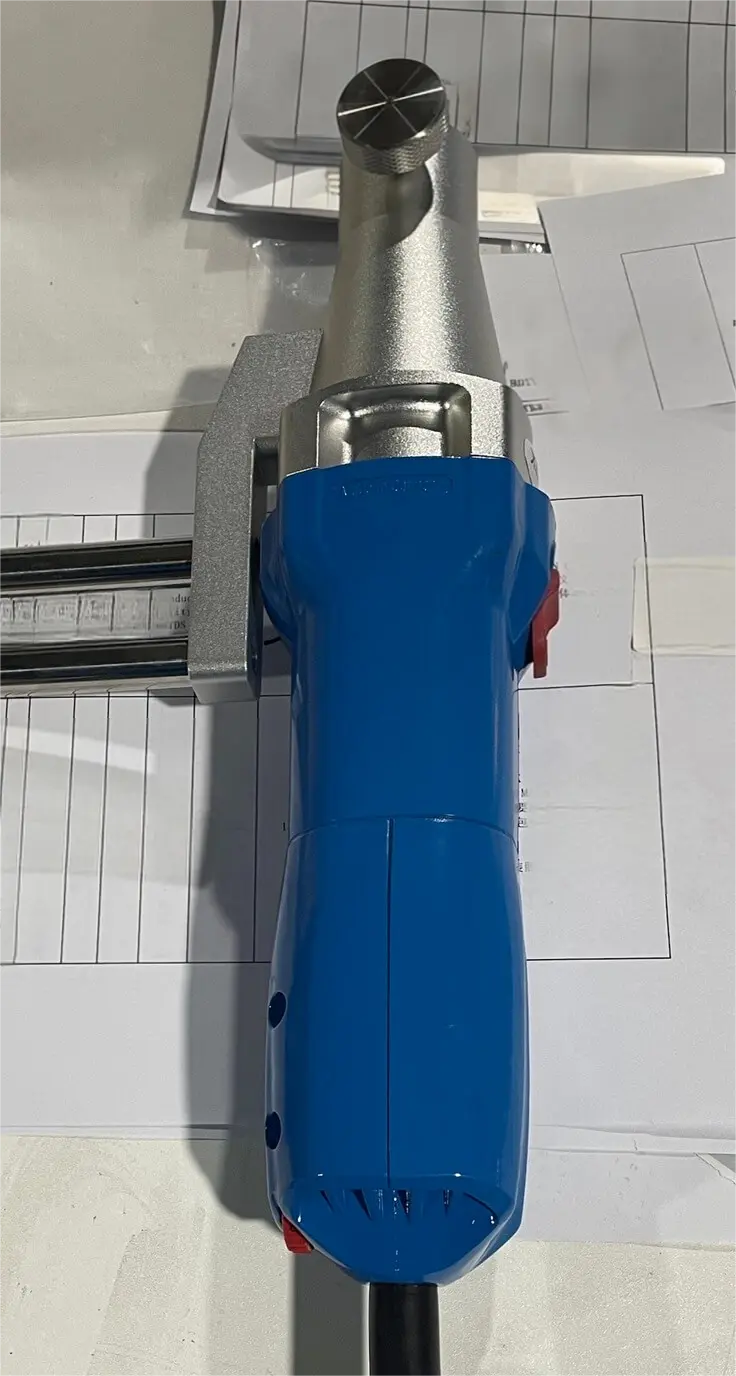

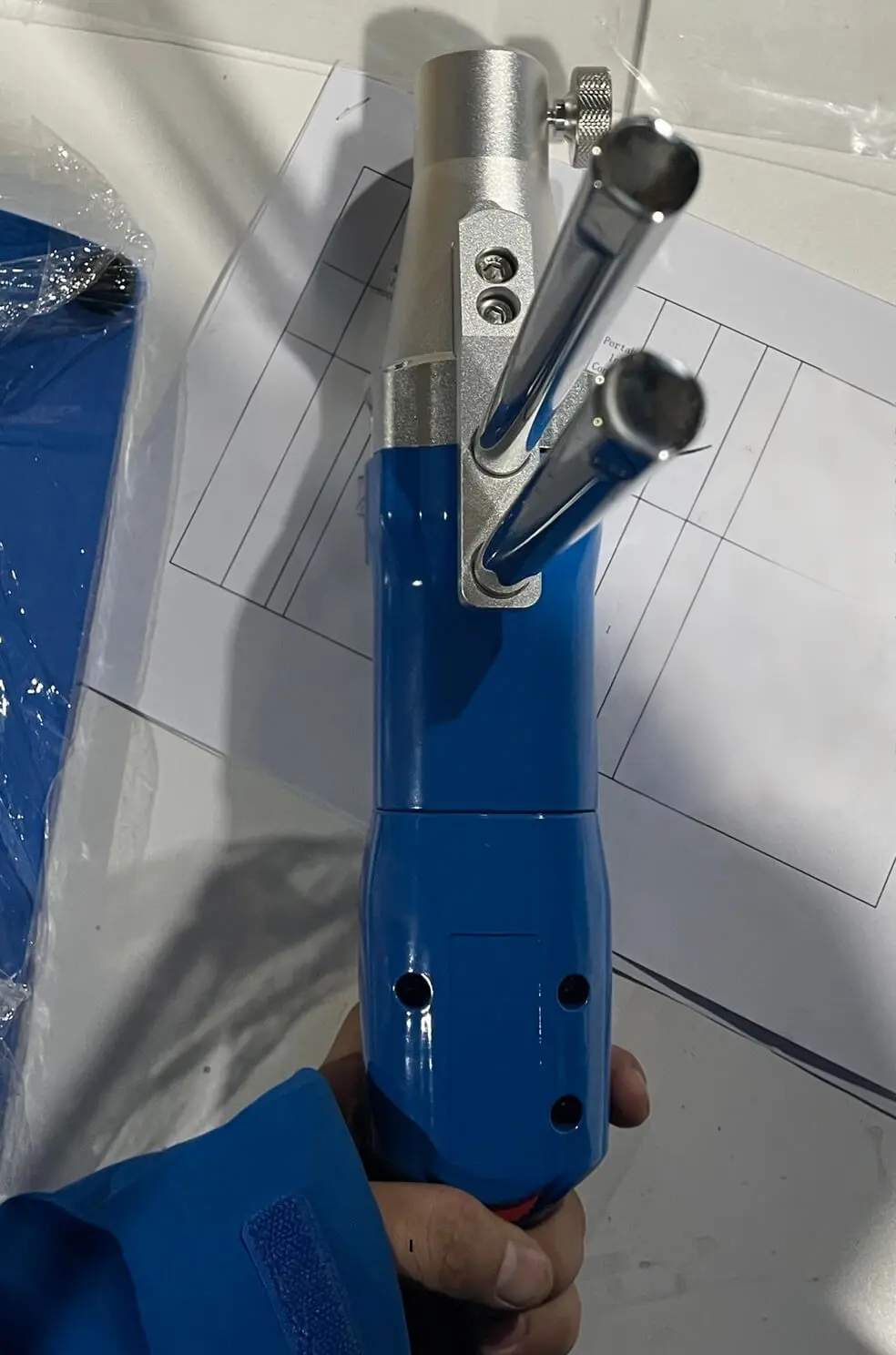

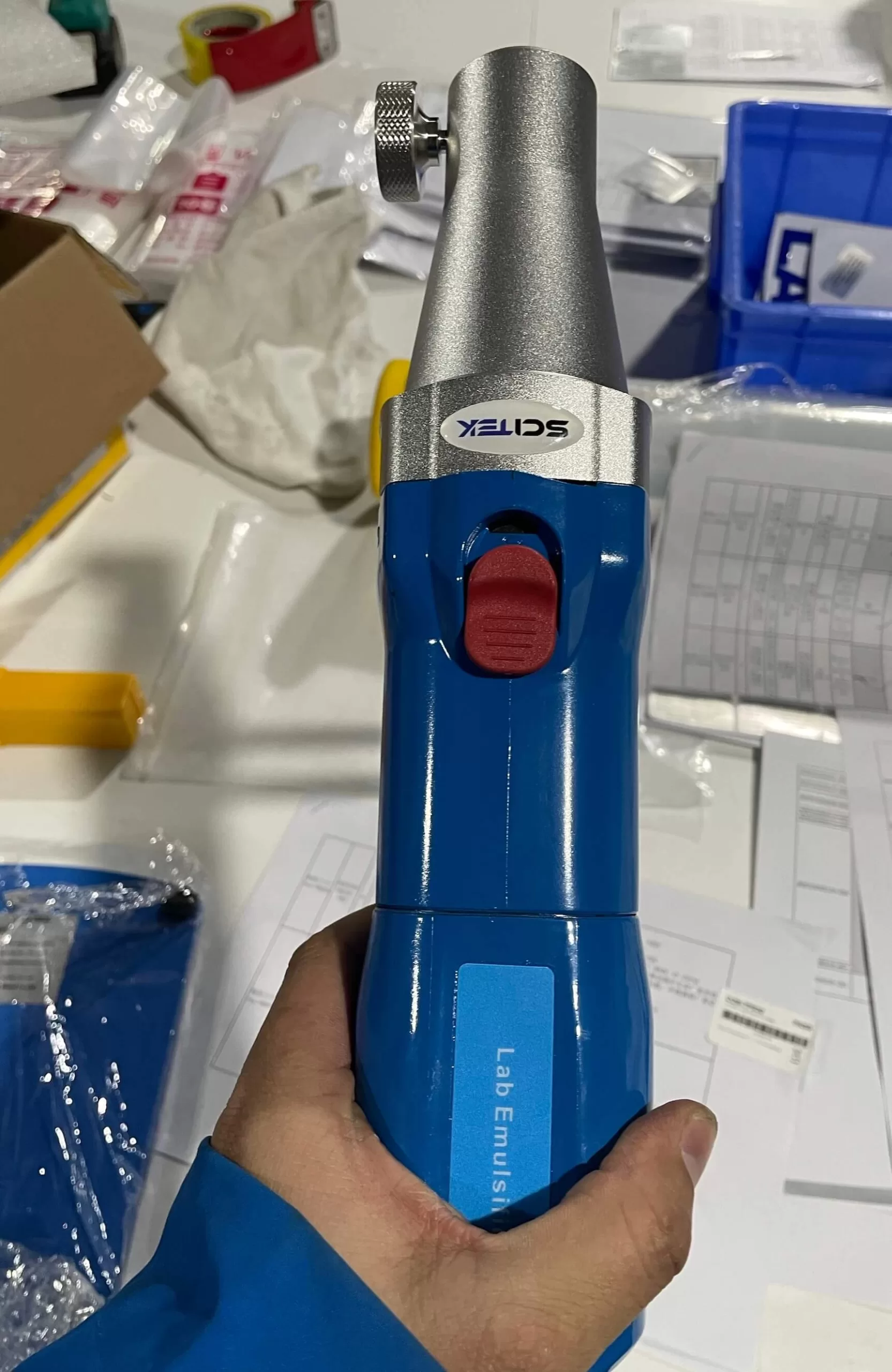

Details of High shear Homogenizer:

The High Shear Homogenizer is designed to deliver precise, high-efficiency mixing and emulsification for a wide range of applications. Featuring a powerful motor and advanced rotor-stator technology, it ensures uniform dispersion and consistent particle size reduction, making it ideal for industries such as pharmaceuticals, food processing, and biotechnology.

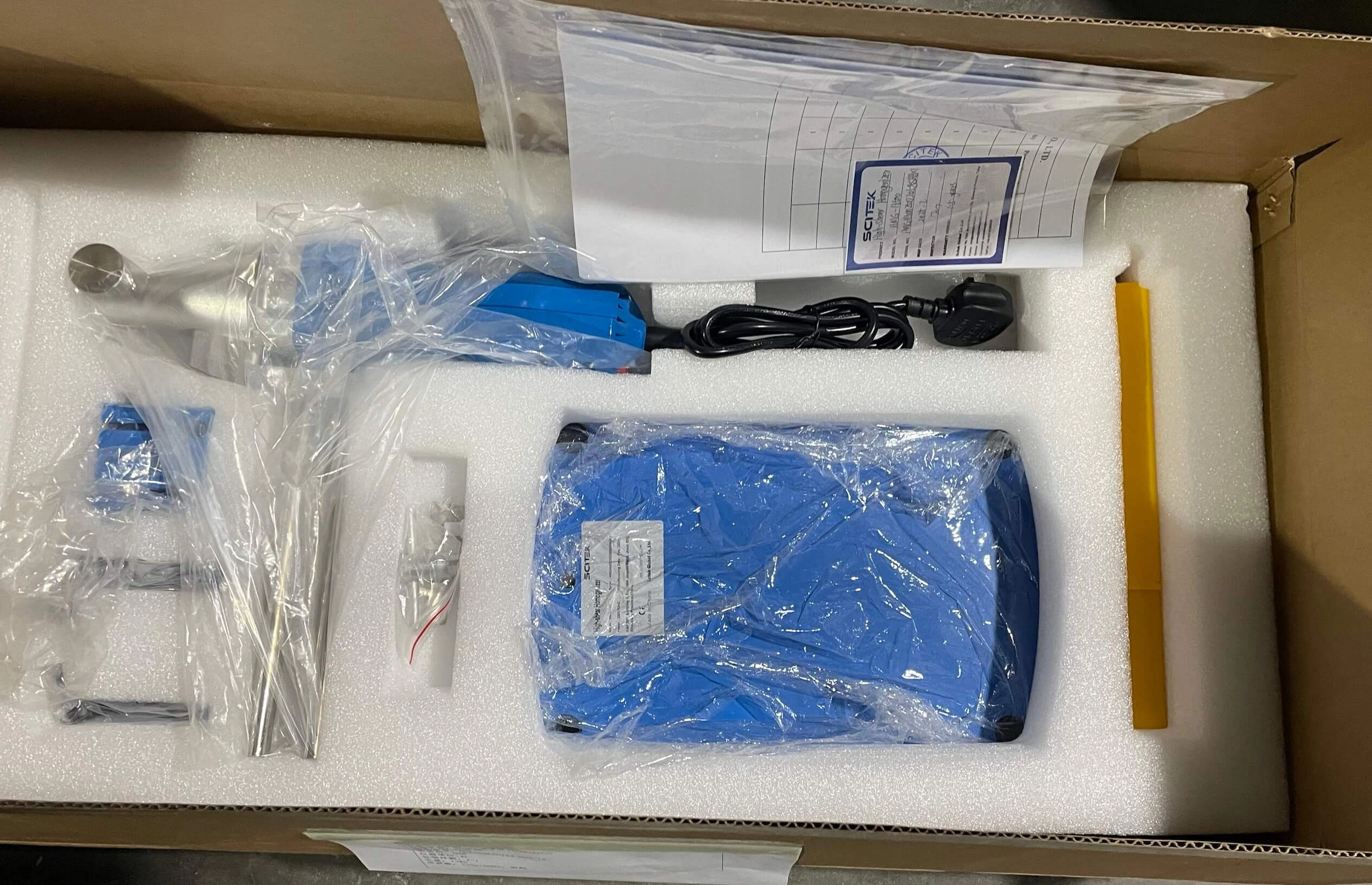

The packaging of the High Shear Homogenizer is designed for secure and safe transport. The unit is carefully placed inside a sturdy, protective box with foam padding to prevent any damage during shipping. The packaging includes clear labeling, making it easy to identify the product and its specifications. Additionally, the box is designed for easy handling, ensuring that the homogenizer arrives in perfect condition, ready for installation and use. The protective materials also ensure that the device remains secure throughout transit.
