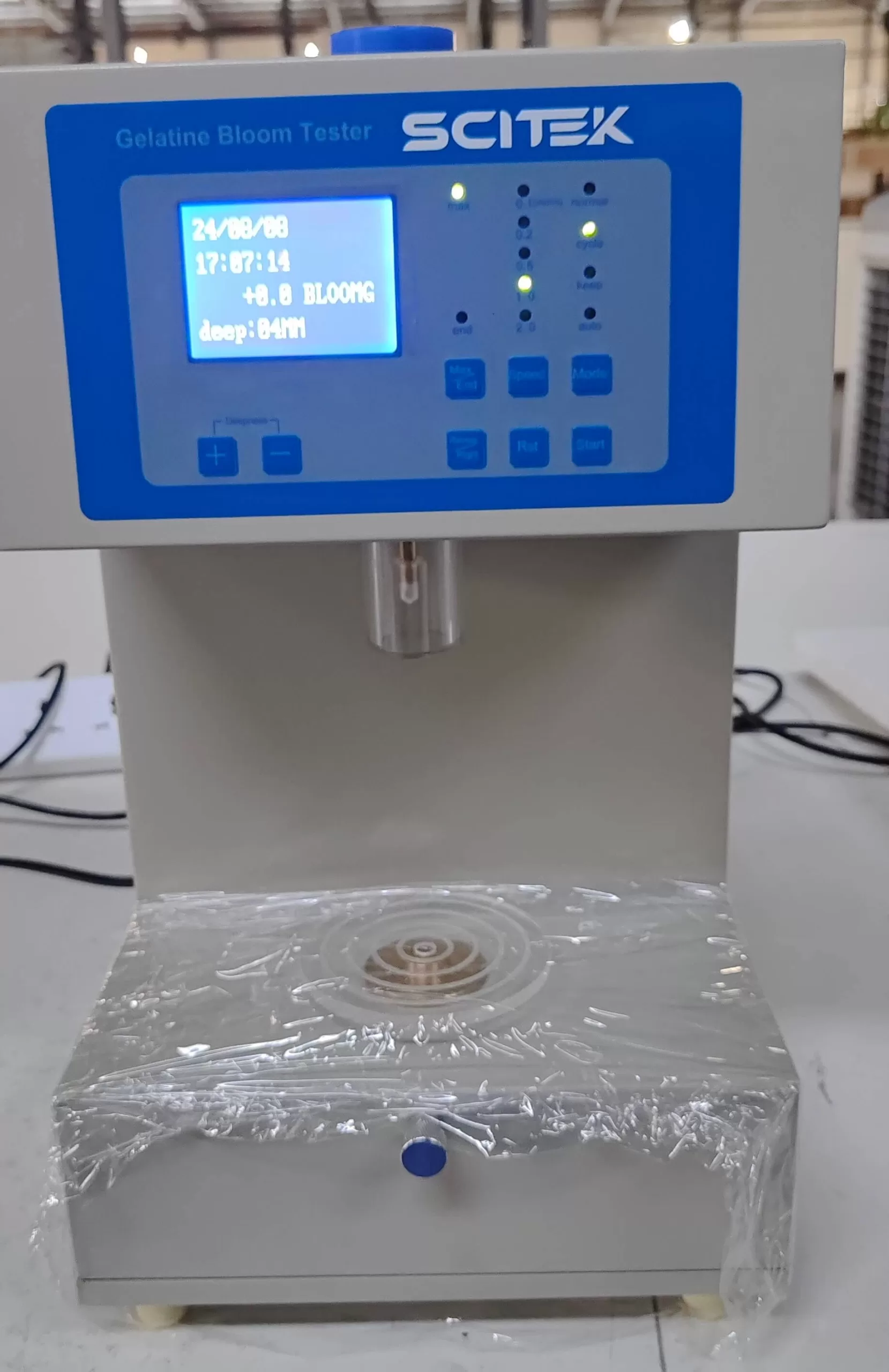

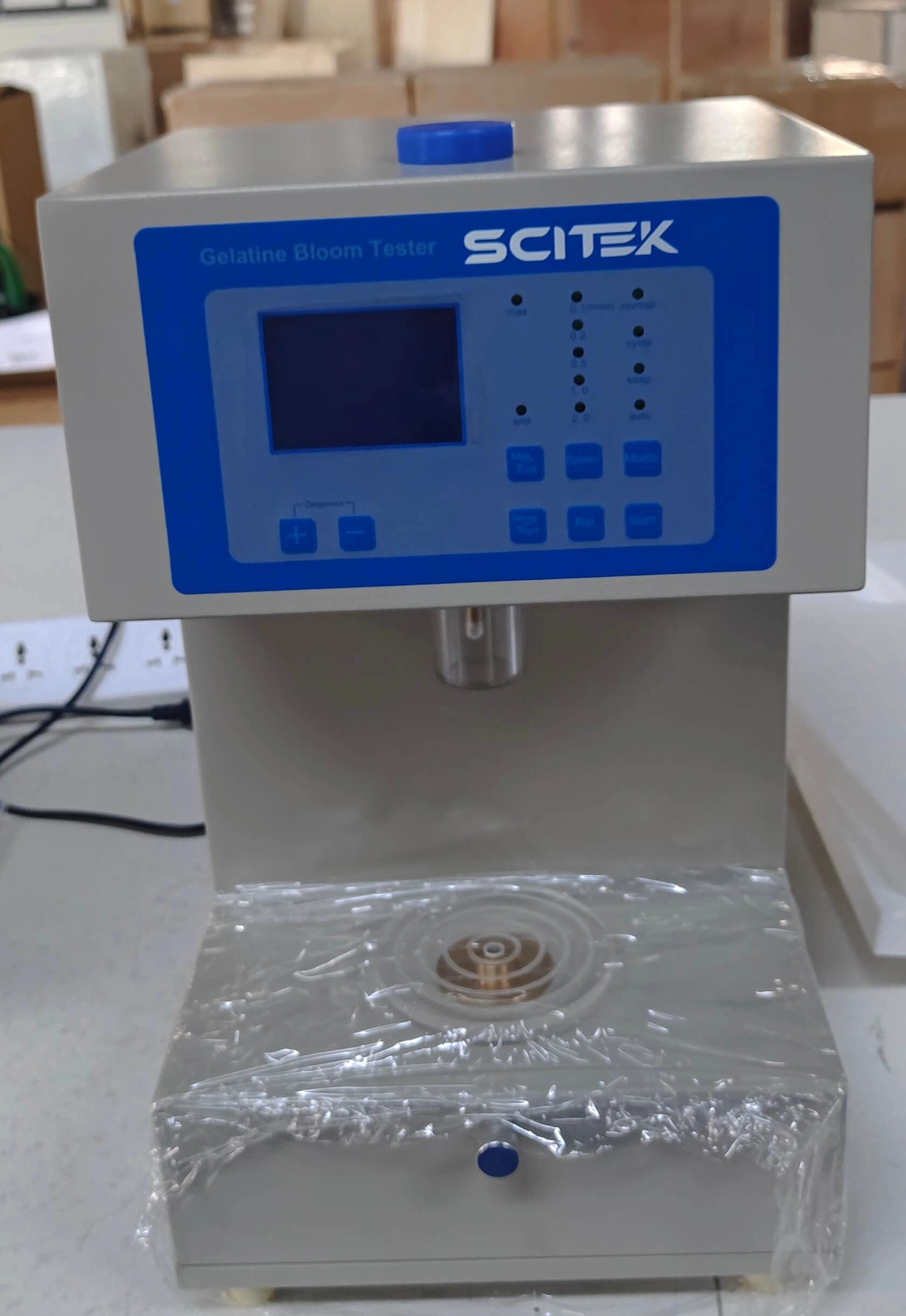

Gelatin Gel Strength Tester Feature:

Gelatin gel strength tester is a device for measuring gelatinous substances’ gel strength or gelatin strength.

High-definition display interface with easy-to-use controls so operators can access them easily
Digital display provides clear and accurate readings
Parameters such as test speed, temperature and other relevant settings can be arbitrarily adjusted to suit different testing requirements.
Can be used to test a wide range of gelling substances, ensuring broad applicability in different industries
Data storage enables users to store and retrieve test results for analysis or documentation.
A number of safety features protect the operator during use.

Gelatin Gel Strength Tester Specification:

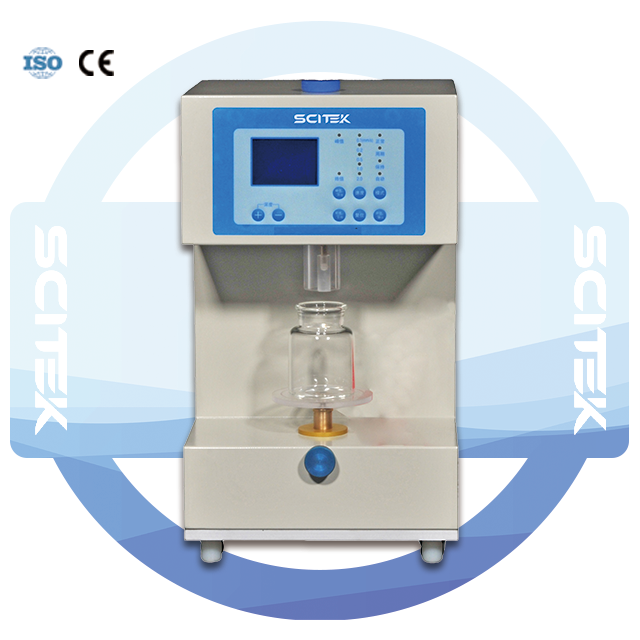

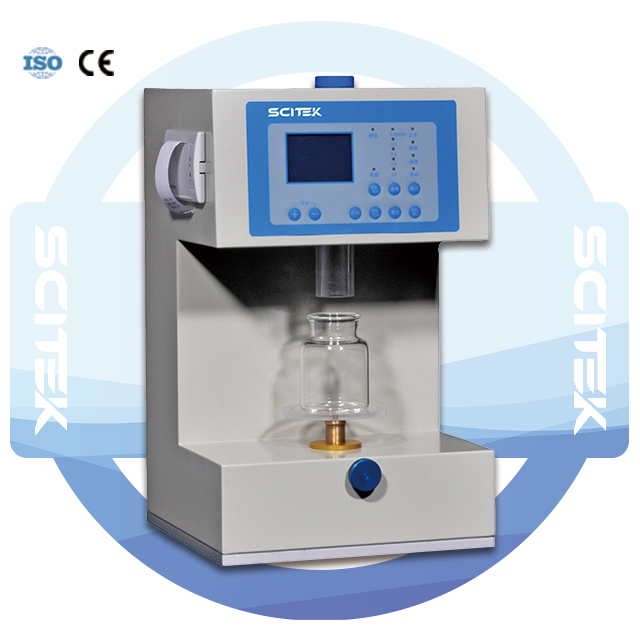

Model	GST-II	GST-III
Test Range	5-1000 Bloomg
Test Precision	±0.3%
Resolution	1g
Repeated Measurement Error	±1 Bloomg
Sampling Depth	1-60mm
Stroke Error	≤±0.1mm
Stroke Error of High-speed Measurement	≤±0.1mm
Measured Value	Take bioom gas the unit
Measured Diameter of Cylinder	12.700±0.010mm
Standard Gel Strength Bottle	Volume=150ml; inner diameter=59mm; height=85mm
Printer	/	Embedded micro printer, standard serial printing, convenient storage of experimental data
Power Supply	AC220/110V; 50/60Hz
Total Power	60W
Size(W×D×H)(mm)	260×260×450
Shipping Size(W×D×H)(mm)	380×380×550
N.W./G.W. (kg)	10/18
Thermostatic Water Tank and Refrigerating Machine Technical Indexes:
Water Bath Temperature Control Range	5~60℃
Water Bath Temperature Control Precision	±0.1℃
Refrigerating Time	30℃→10℃＜40min
Power Supply	AC220V, 50Hz
Thermostatic Water Tank HW-III
Size(W×D×H)(mm)	580×440×220
Shipping Size(W×D×H)(mm)	710×560×380
N.W./G.W. (kg)	20/30
Refrigerating Machine ZL-III
Size(W×D×H)(mm)	480×380×290
Shipping Size(W×D×H)(mm)	600×500×410
N.W./G.W. (kg)	15/23
