Fully Automatic Tissue Slide Stainer Feature:
- Suitable for hospitals, medical schools, public health, and biological research laboratories.
- Fast staining, easy operation, and enhanced safety performance.
- Optical plastic cover with exhaust system for operator and environmental safety.
- Slide racks placeable at any station with automatic induction operation.
- Compact design with LED touch control and low-energy mechanical arm.
- Supports adding samples anytime for continuous staining.
- Multiple repeat stations configurable for time-consuming steps.
- Stations 2–17 support water washing with auto start/stop and adjustable flow.
- Any station can be set as the endpoint with audible completion alarm.
- Automatic water protection shuts off supply and alarms on blockage.
- Stations can be modified during automatic operation.
- Dynamic graph displays real-time staining progress.
Fully Automatic Tissue Slide Stainer Specification:
| Model |
TS-IV |
| Capacity |
6pcs slides in each holder, for continuous staining process |
| Numbers of Station |
20pcs, (Repeat Station, Clean Bath can be set) |
| Volume of Station |
135ml |
| Length of Processing Time in the Cup |
Adjustable within 0 – 59 minutes and within 0 – 59 seconds |
| Time for Changing Station, Stay and Leaching Liquid |
10S |
| Numbers of Program |
10pcs, with remind code for online faulty |
| Power Supply |
AC220V±10% 50Hz / AC110V±10% 60Hz |
| Power |
100W |
| Shipping Size(W×D×H)(mm) |
840×450×550 |
| N.W./G.W. (kg) |
32/40 |
Details of Automatic Tissue Slide Stainer:

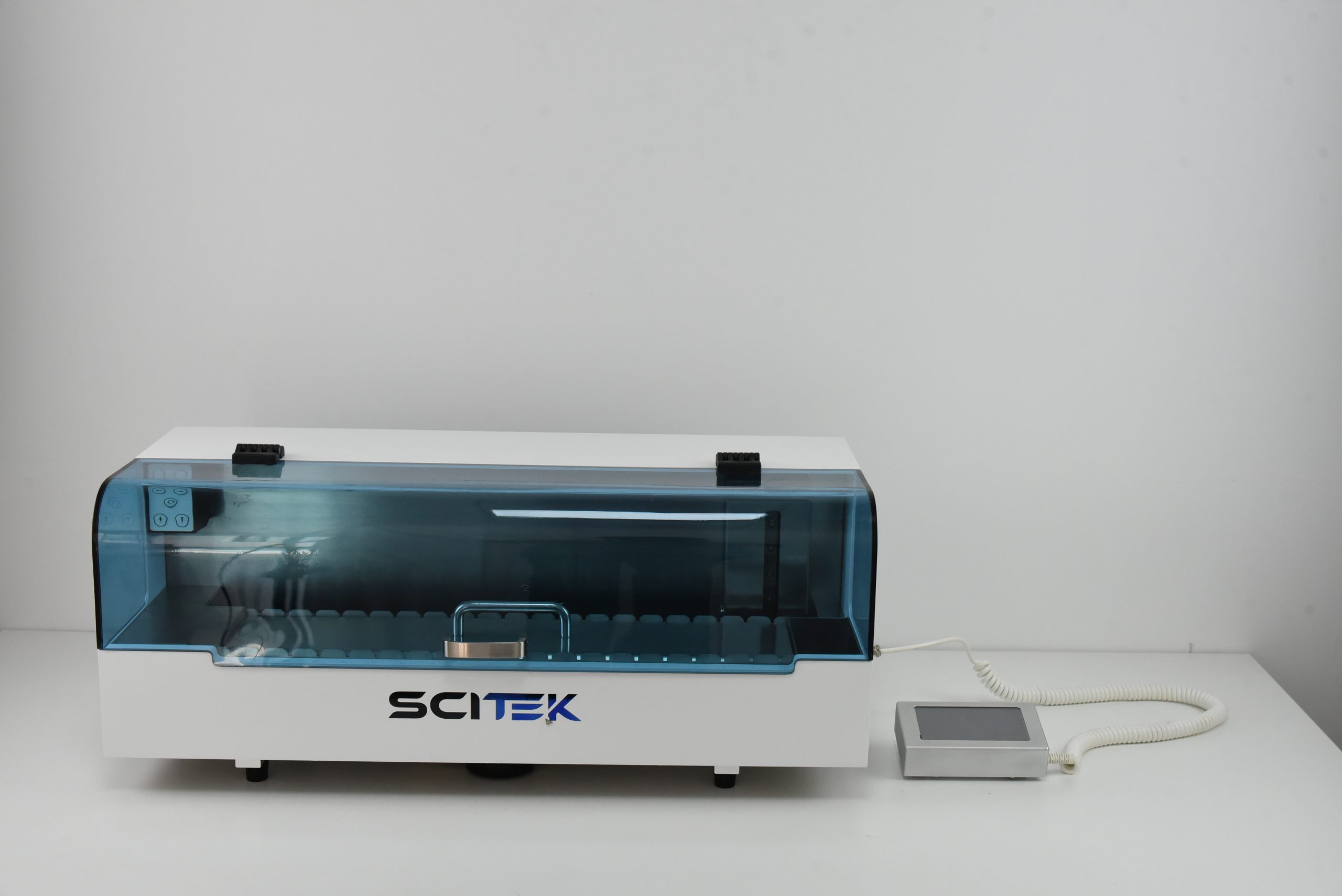

The automated slide stainer is equipped with safety features designed for consistent, high-quality results.

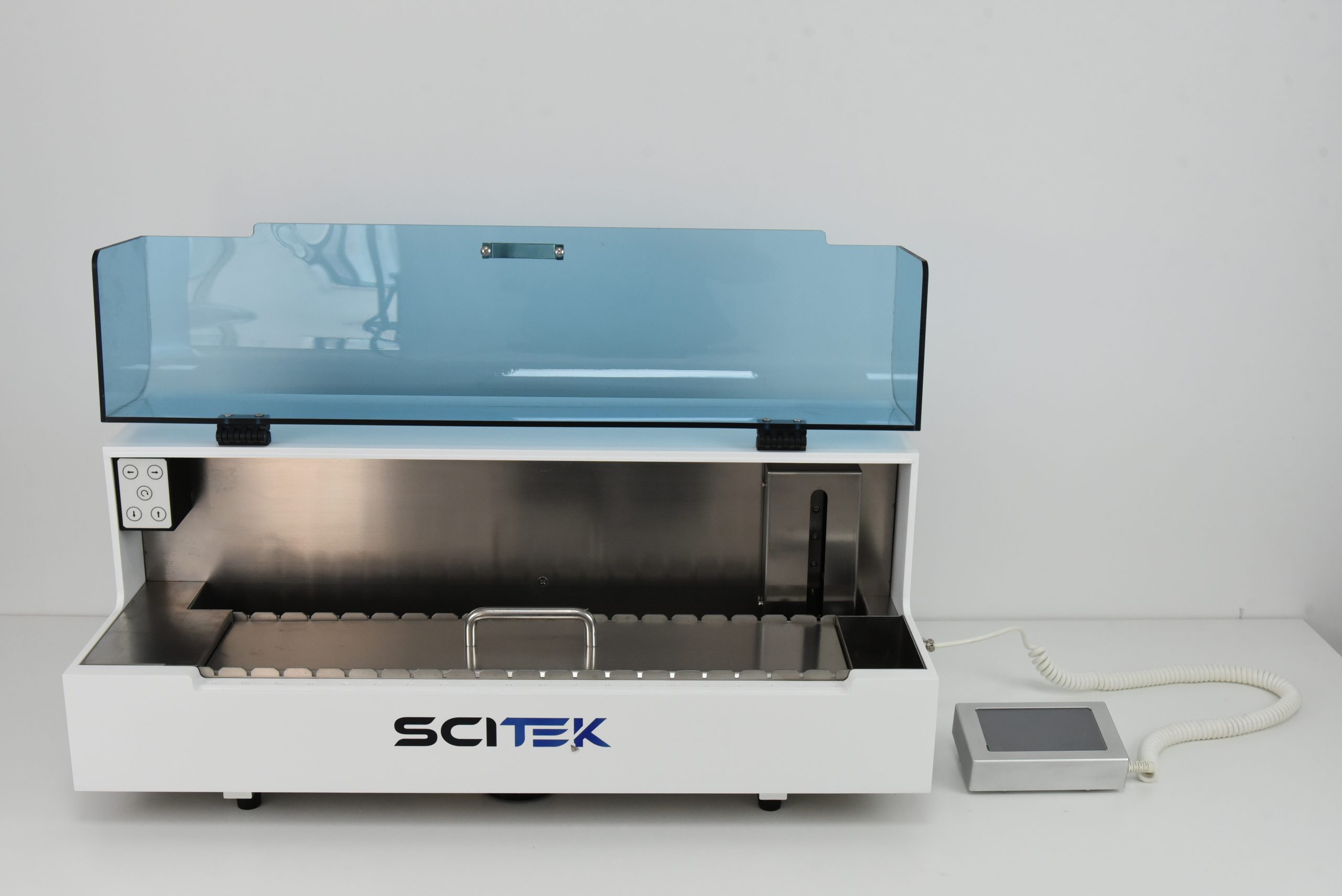

The slide holder is partially inserted into the automated slide stainer, ensuring precise handling of tissue sections and automated staining.

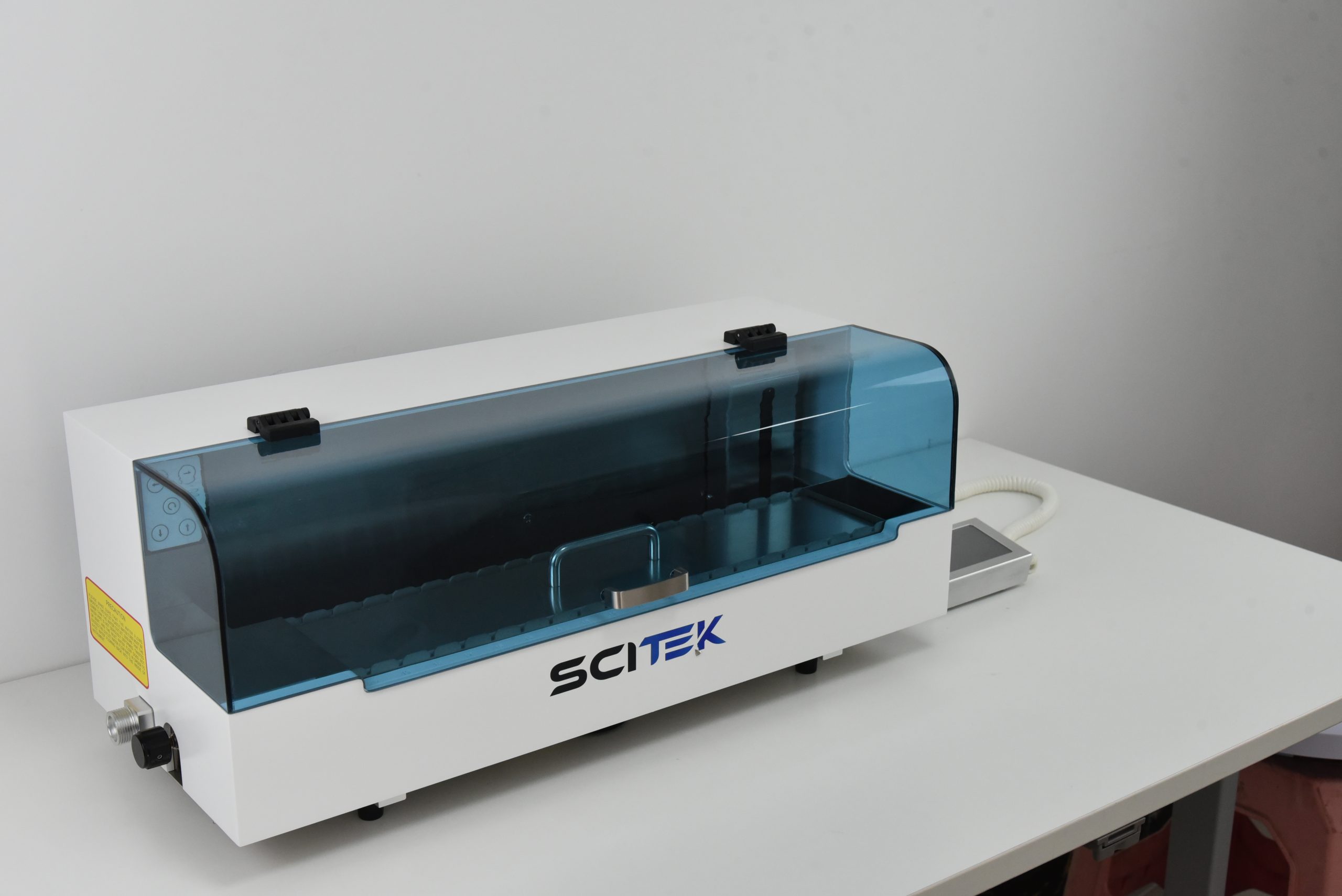

The blue transparent cover allows for easy viewing during the staining process.
The control panel of the stainer allows precise control of staining parameters.

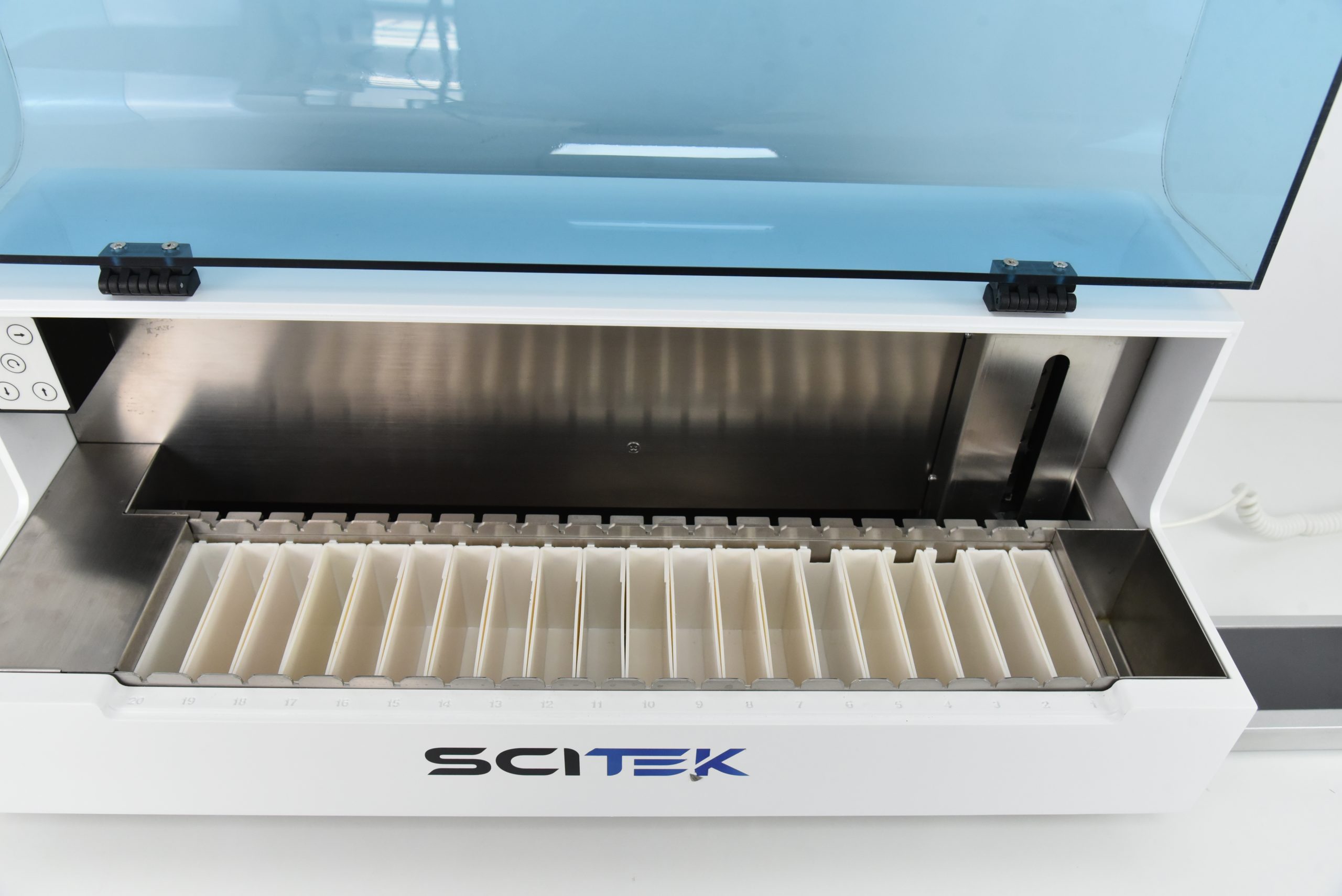

The automated slide stainer’s internal multiple slides are arranged in slide holders ready for staining. The internal mechanism is designed for efficient and even application of reagents.
Principle of automatic staining machine:
- Loading Slides: Slides containing tissue or cell samples are loaded into slide holders and placed into the automated staining machine.
- Reagent Application: The Tissue slide stainer automatically dispenses specific staining reagents onto the slide.
- Time Control: The Tissue slide stainer controls the application time of each reagent to ensure consistent staining results.
- Wash: After using the staining reagents, the machine automatically rinses the slide with buffer or water to remove excess reagent.
- Unloading: When the staining process is complete, the slide will be automatically unloaded or made available for manual retrieval.
