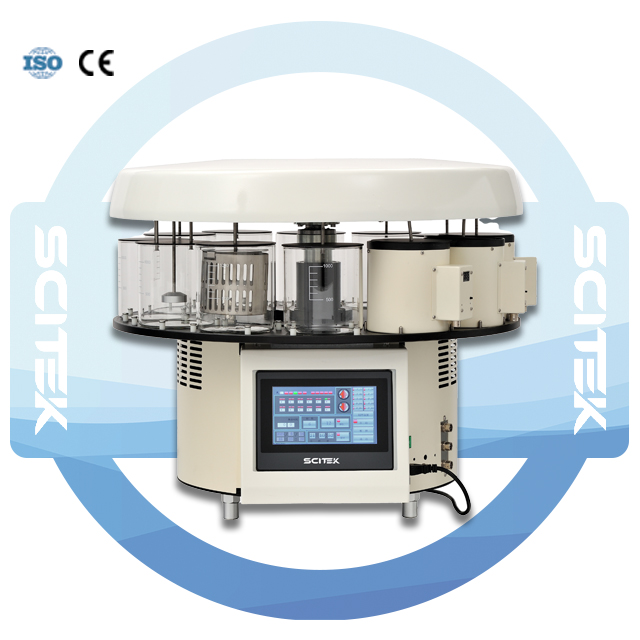

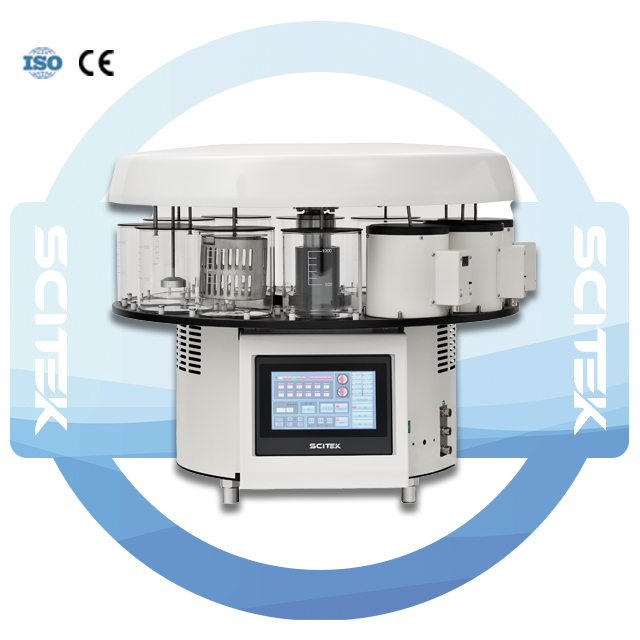

Fully Automatic Tissue Processor, TP-A6 Series

Model : TP-A6A; TP-A6B
Number of beakers: 12 (9 beakers for reagent, 3 beakers for paraffin)
Tissues that can be processed at one time: 40 cassettes (large capacity: 100 cassettes)
Programmable: 10 sets
Agitation times: ≥ 10 times / hour
Paraffin beaker temperature range: 56-86 ℃

Advantage:

The PLC control system manages all operational processes, ensuring simple operation and reliable, stable performance.
Tissue basket relocating controlling perch enable the tissue to be put in any beaker.
Electricity protection and obstacle protection functions.
Agitation dehydrate mode to guarantee the complete mix and contact with the tissue, regent and paraffin so as to achieve good dehydrate effect.
Large LCD screen shows every step of processing and is easy for monitoring.
Constant temperature controlling system adopted on the paraffin beaker to ensure high precision of temperature controlling.
Nonstick import TEFLON coating painted on the internal surface provides the good condition for tissue protection.

Specification:

Model	TP-A6A	TP-A6B
Number of Beakers	12 (9 beakers for reagent, 3 beakers for paraffin)
Capacity of Each Reagent Beakers	1.2 L (large capacity: 2.3 L )
Capacity of Each Paraffin Beakers	1 L (large capacity: 1.8 L )
Tissue Basket Capacity	40 cassettes (large capacity: 100 cassettes)
Processing Time	Set: 0-10 hours Delay: 1 month
Programme	10 sets
Temperature Range of Paraffin Beaker	56-86 ℃
Vaccum Degree	/	0.053 MPa
Agitation times	≥ 10 times / hour
Power Supply	AC 100 V / 220 V, 50 Hz / 60 Hz
Working Temperature	5-40 ℃
Humidity Level	< 85%
Power	500 W
Dimensions(Dia.×H) (mm)	670 mm (Diameter) × 550-680 mm (Height)
Shipping Size(W×D×H)(mm)	1040×790×780 mm (1.2 L) 1190×890×780 mm (2.3 L)
N.W. /G.W.	60/115 kg
