- Model : TP-A3B
- Number of beakers: 12 (9 beakers for reagent, 3 beakers for paraffin)
- Capacity of each beaker: 1500 mL
- Tissues that can be processed at one time: 100 cassettes
- Programmable: 20 sets
- Drain time: 10-60 seconds
- Agitation times: 0-6
- Paraffin beaker temperature range: RT – 80 ℃

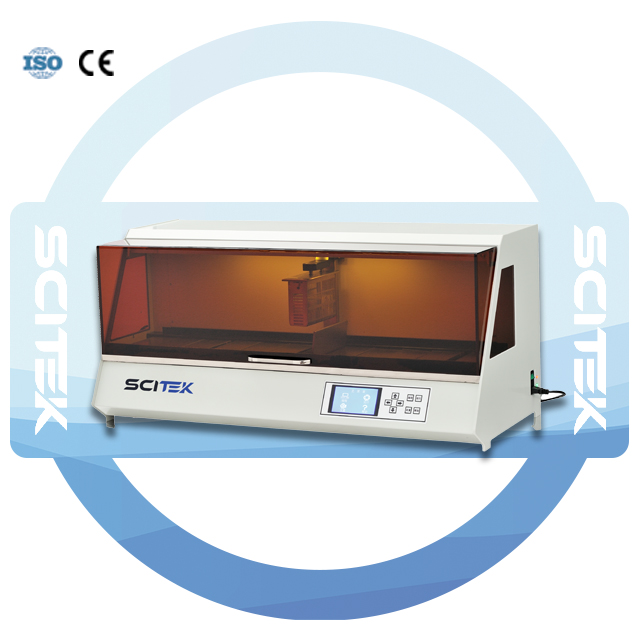

Fully Automatic Tissue Processor, TP-A3B
Advantage:
- Intelligent touch color screen, real-time display of working status, clear display.
- Working station synchronous displays and work progress is clear at a glance.
- With power failure protection function, built-in UPS system, can run for over 30 hours after power failure.
- Can insert manual operation at will, and automatically recover the original operating state, convenient for mid-run inspection or adding specimens.
- Waterless intelligent heating control, reduce standby loss, high temperature control accuracy.
Specification:
| Model | TP-A3B |
| Number of Beakers | 12 (9 beakers for reagent, 3 beakers for paraffin) |
| Capacity of Each Beaker | 1500 mL |
| Tissue Basket Capacity | 160×52×112 mm (100 cassettes) |
| Processing Time | First beaker: 0-99 hours and 59 minutes adjustable
Other beakers: 0-23 hours and 59 minutes adjustable |
| Programmers | 20 sets |
| Paraffin Beaker Temperature Control Range | RT – 80 ℃ adjustable |
| Drain Time | 10-60 seconds adjustable, 10 seconds increment |
| Agitation Times | 0-6 times/min adjustable |
| Tissue Protection Station | 1-7 stations adjustable |
| Power Supply | AC 100 V-120 V / AC 220 V-240 V, 50 Hz / 60 Hz |
| Power | 500 W |
| Dimensions(W×D×H) | 1055×495×480 mm |
| Shipping Size(W×D×H) | 1220×620×620 mm |
| N.W./G.W. | 75 kg/ 96 kg |
