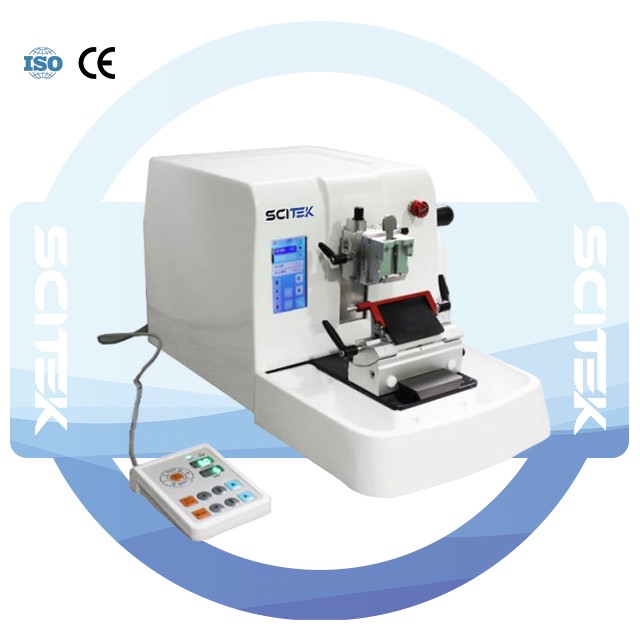

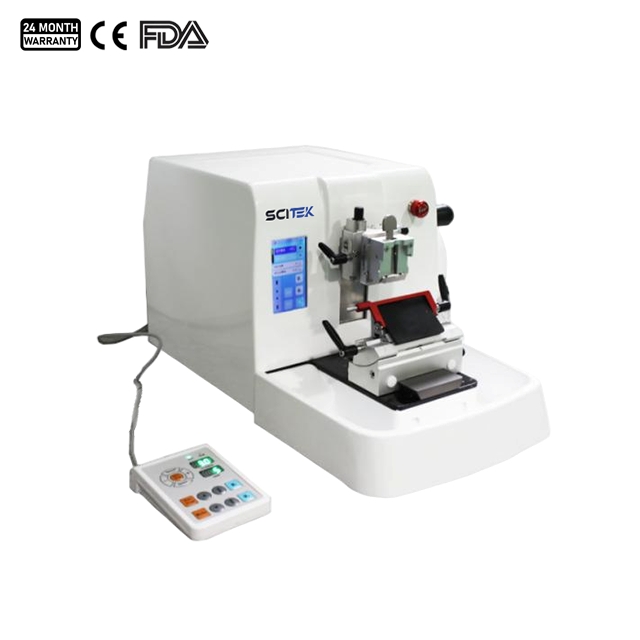

Fully Automatic Microtome, MT-A3385

The MT-A3385 features a 4.3-inch touch screen design that is easy to operate with an intuitive display.

Warning

/www/wwwroot/www.scitekuae.com/wp-includes/class-wp-hook.php

341

Fully Automatic Microtome Advantage:

Flexible sectioning modes: Fully automatic operation with continuous, stepping, and single sectioning; adjustable speed.
User-friendly control: 4.3-inch touchscreen with Chinese/English interface and external control panel.
Position memory & digital positioning: Dual memory settings and digitalized clamping head with automatic coordinate positioning; multiple clamp options for varied specimens.
Intelligent trimming function: Smart sensing with semi-automatic trimming; half-turn repair and automatic switch to sectioning mode.
Specimen protection design: Adjustable specimen retraction prevents blade damage and ensures smooth cutting.
Stable mechanical structure: Cross-roller dual guide rails deliver high rigidity, low vibration, and low noise.
Advanced blade holder system: Lateral blade movement maximizes blade usage; compatible with wide and narrow blades, with integrated guards and retraction.
Safe and durable construction: Metal-coated surface, lockable handwheel, and dovetail blade holder base for precision and safety.
Clean and precise operation: Large magnetic waste tray for easy cleaning; specimen positioning adjustable on X/Y axis with ±8° horizontal tilt.

Microtome Speciﬁcation:

Model	MT-A3385
Section Thickness Range	0-100 μm (3-5 μm is the best section effect)
Section Thickness Setting	0-5 μm, in 0.5 μm increments
	5-20 μm, in 1 μm increments
	20-60 μm, in 5 μm increments
	60-100 μm, in 10 μm increments
Screen	Numbers can be directly entered through the touch screen
Trimming Thickness Range	0-800 μm
Trimming Thickness Setting	0-10 μm, in 1 μm increments
	10-20 μm, in 2 μm increments
	20-50 μm, in 5 μm increments
	50-100 μm, in 10 μm increments
	100-800 μm, in 50 μm increments
Maximum Specimen Size	55×45 mm
Precision Error	± 5%
Rectraction Range	0-250 μm
Total Horizontal Specimen Feed	30 mm
Vertical Specimen Stroke	70 mm
blade holder Angle	0-15°
Languages	2 (Chinese and English)
Power Supply	AC 220/110 V, 50/60 Hz
External Size (W×D×H)	305×450×600 mm
Shipping Size (W×D×H)	480×510×570 mm
N.W. /G.W.	36/46 kg
