- Model : TP-EQ1
- Number of Reagent station: 12
- Number of Paraffin Chamber: 3
- Tissues that can be processed at one time: 300 cassettes
- Programme: 10 sets
- Paraffin Chamber Temperature: 58-80 ℃
Fully Automatic Enclosed Tissue Processor
Advantage:
- Equipped with a 15-inch color LCD intelligent touch screen, sensitive touch, clear display.
- Rich human-machine interaction features such as misoperation reminders, pop-up inquiries, scrolling screens, etc.
- Working station synchronous displays and work progress is clear at a glance.
- Fully enclosed specimen processing system, no pollution gas leakage, in line with environmental protection requirements.
- Advanced gas pressure conversion device, stable air pressure, low failure rate.
- Imported vacuum pump and built-in drying filter ensure effective removal of air moisture.
- With the power-off memory function, it starts running automatically upon power restoration.
- Powerful timing function, you can set the tissue completion time arbitrarily according to the week, convenient for work planning.
- The special working station design allows for thorough liquid reflux , reduces reagent mixing, improves the reagent use cycle.
- The working station features intelligent, fully automatic cleaning, ensuring thorough cleanliness while saving time and effort.
- The one-touch free switching between regular dehydration and fast dehydration allows for quick dehydration in just 3 hours.
- The one-touch intelligent automatic liquid exchange with waste liquid chamber, makes fluid exchange convenient and effortless.
- Misoperation prompts and working station intelligent alarm prompts ensure safety.
Specification:
| Model | TP-EQ1 |
| Reagent Station | Quantity: 12
Capacity: 6 L |
| Paraffin Chamber | Quantity: 3
Capacity: 6 L |
| Recycle Bottle | 1 |
| Activated Carbon Bottle | 1 |
| Capacity of Processing Station | 9 L |
| Tissue Basket Capacity | 163×163×198 mm (300 cassettes) |
| Processing Station Temperature | Reagent: RT – 45 ℃;
Paraffin: 58-80 ℃ |
| Paraffin Chamber Temperature | 58-80 ℃ adjustable |
| Vacuum Pressure | < 0.1 Mpa |
| Programme | 10 sets |
| Single Reagent Processing Time | 1, 2 station 0 – 6000 minutes;
other 0 – 300 minutes |
| the Time of Reagent Inlets and Outlets in the Processing Station | ≤ 5 minutes |
| Agitation Time | 0-9 minutes |
| Agitation Interval Time | 0-12 minutes |
| Power Supply | AC 100 V – 120 V / AC 220 V – 240 V, 50 Hz / 60 Hz |
| Power | < 1500 W ± 10% |
| Dimension (W×D×H) | 650×650×1350 mm |
| Shipping size (W×D×H) | 730×730×1350 mm |
| N.W./G.W. (kg) | 115 kg/190 kg |
Details of Fully Automatic Enclosed Tissue Processor:

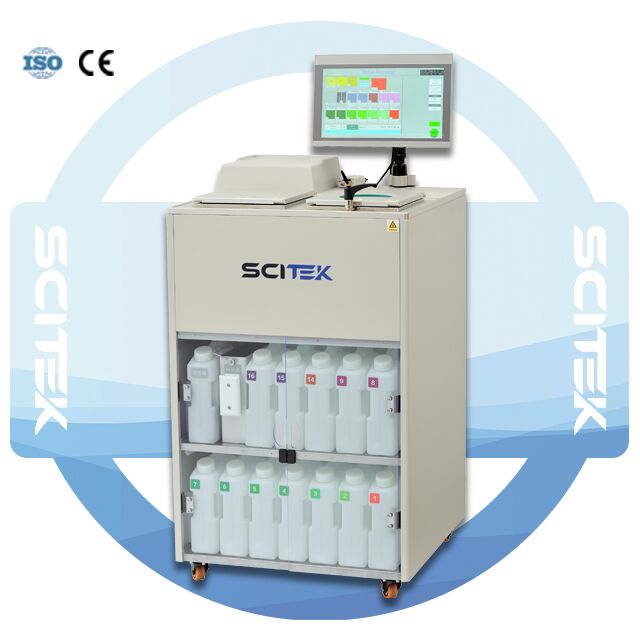

The front view of the tissue processor highlights its user interface with a digital control panel, displaying settings and operational status for easy monitoring and control. The sleek design ensures easy access to the sample processing compartment.

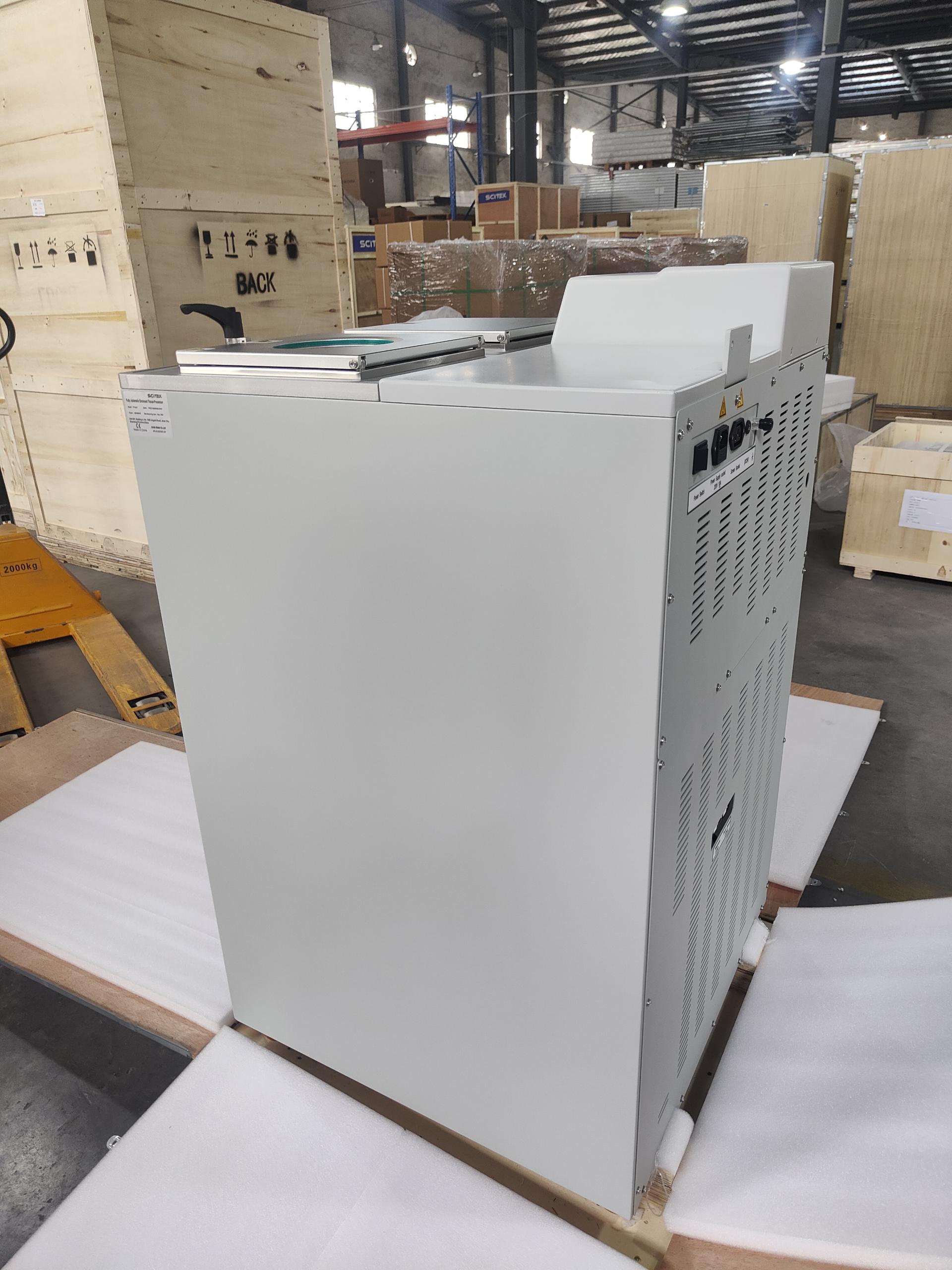

The back of the tissue processor shows its power connections, ventilation system, and exhaust ports, ensuring efficient air circulation and safe operation. It is designed for seamless integration into laboratory settings with minimal space usage.
A close-up of the internal components, including the sample holders, reagent chambers, and motorized parts, demonstrating the advanced automation and precision for tissue processing. The intricate design ensures consistent and reliable sample preparation.
