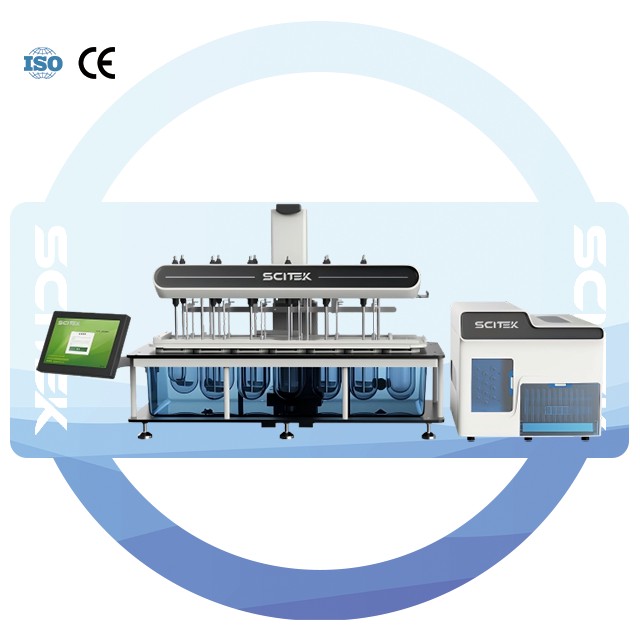

Redefining efficiency in the lab, this fully automated dissolution workstation eliminates manual steps and provides a complete, GMP-compliant solution for demanding pharmaceutical testing environments.
Application:
The fully automatic dissolution sampling and collection system adopts a modular design, which fully realizes automatic dosing, automatic sampling, automatic collection, automatic cleaning and other tasks. Users can use different numbers of cups to implement dissolution experiments of different preparations and different methods.The software system has multi-level authority management and method storage, and can export experimental data and work logs, fully meeting the needs of GMP audit and verification.
Advantage:
Specification:
| Model | DSC-F8DA | DSC-F12DA |
| Dissolution System | ||
| Number of Dissolution Vessel Positions | 8 | 14 |
| Speed Range | 0–400 ± 1 rpm / 400–1000 ± 4% rpm | |
| Temperature Range | RT-50.0 ℃ | |
| Temperature Stability | ≤±0.1 ℃ | |
| Paddle Radial Run-Out | ≤0.5 mm | |
| Basket Radial Run-Out | ≤0.8 mm | |
| Deviation Between Rotating Rod
and Dissolution Cup Axis |
≤1.0 mm | |
| Power Supply | AC 220 V±10%, 50 Hz, 1800 W | |
| Sampling System | ||
| Sampling Channels | 8 | 12 |
| Maximum Sampling Times | 40 times | |
| Sampling Volume (Refilling Volume) | 1–20 mL | |
| Minimum Sampling Interval | 1 minute for the first time, 2 to 5 minutes for the rest
(depending on the sampling volume and whether fluid is replenished) |
|
| Maximum Working Time | 1 to 100,000 minutes (69 days) | |
| Sampling Accuracy | ≤±1 % (average value of each channel for 5 mL sampling volume) | |
| Sampling Filtration Cycle | <30 s (fully in line with the requirements of the Chinese Pharmacopoeia) | |
| Dimensions (W×D×H)(mm) | 550×900×810 | 600×1400×830 |
| 620×550×536 | 620×550×536 | |
| N.W. (kg) | 80/60 | 150/60 |
