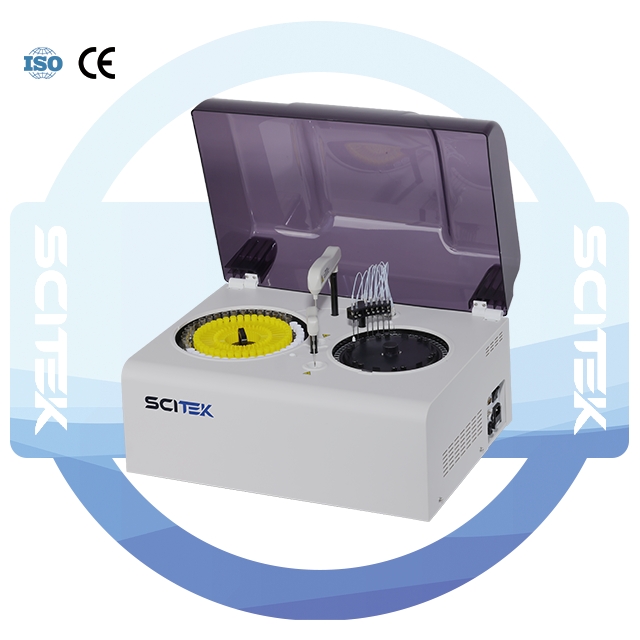

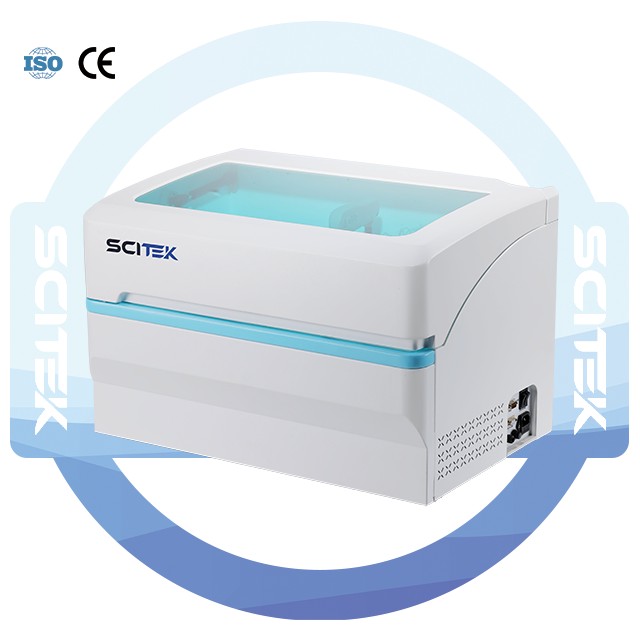

It is a diagnostic tool used in clinical laboratories, hospitals and research facilities for the accurate and efficient testing of biochemistry.
| Model | BA-260I | BA-260II |
| Test Speed | Constant 200 tests/hour | |
| Test Principle | Absorbance photometry, immunoturbidimetric | |
| Test Methodology | End-point, Fixed-time, Kinetic, Single/Double Reagent Chemistry | |
| Calibration Type | Linear/nonlinear multi-points calibration | |
| Calibration Model | Single point, Two point, Multiple point, Logitlog, Segment line, Exponential 5p, Polynomial, Poly4, Spline, Logistic | |
| Sample Volume | 1.6–50 µL, 0.1 µL step | |
| Sample Dilution | Automatic/manual pre-dilution, with dilution ratio up to 1:100 | |
| Sample Tray | 40 sample positions | |
| Reagent Volume | 10–300 µL, 0.1 µL step | |
| Reagent Tray | Internal barcode reader, 40 positions for reagents,reagent tray in 24 hour refrigerated compartment (2–8 ℃) | Internal barcode reader, 40 positions for reagents, reagent tray in 24 hour refrigerated compartment (2–8 ℃); Water-cooled mode, compatible with Hitachi 7170 reagent bottles; |
| Reagent/Sample Probe | Liquid level detection, vertical collision protection, inventory checking | |
| Probe Cleaning | Automatic washing for interior & exterior/carry over < 0.1% | |
| Reaction tray | 60 reusable cuvettes | |
| Reaction volume | 120–300 µL | |
| Reaction time | 10 minutes | |
| Reaction temperature | 37±0.1 ℃ | |
| Optical length of cuvette | 5 mm | |
| Mixing Unit | Independent mixing bar | |
| Cuvette Washing | Automatic 7-step washing washing system | 8-stage, dual-step automatic rinsing; Separate collection of high- and low-concentration waste liquids; Automatic cuvette drying; Standard configuration includes an automatic dilution function for high-concentration cleaning solutions; |
| Optical System | Photometry system: rear spectrophotometry | |
| Light source: halogen-tungsten lamp (import) | ||
| Wavelength: 340–700 nm, 9 wavelengths (340, 405, 450, 510, 546, 578, 620, 660, 700 nm), precision ±1.5 nm | ||
| Absorbance range: 0–3.0 Abs | ||
| Resolution: 0.0001 Abs/Automatic dilution and re-test when ABS and Linear out of range | ||
| Control Rule | One key calibrator import function westgard multi-rule | |
| Analysis Method | End-point, kinetic, two-point, double-reagent, double-wavelength, multi-standard etc, open to various reagents. | |
| Operation system | Windows 7 or above | |
| Input | RS-232 interface/computer | |
| Output | Multi-format printout | |
| Interface | RS-232 | |
| Temperature | 10–35 ℃ | |
| Humidity | ≤90%, no dew | |
| Power Supply | 110 /220 V, 350 W | |
| Lower Water Consumption | 5 L/H | |
| Size (W×D×H)(mm) | 590×420×330 | 640×440×420 |
| Packing Size (W×D×H)(mm) | 650×480×580 | 880×550×600 |
| N.W/G.W (kg) | 36/40 | 42/60 |
