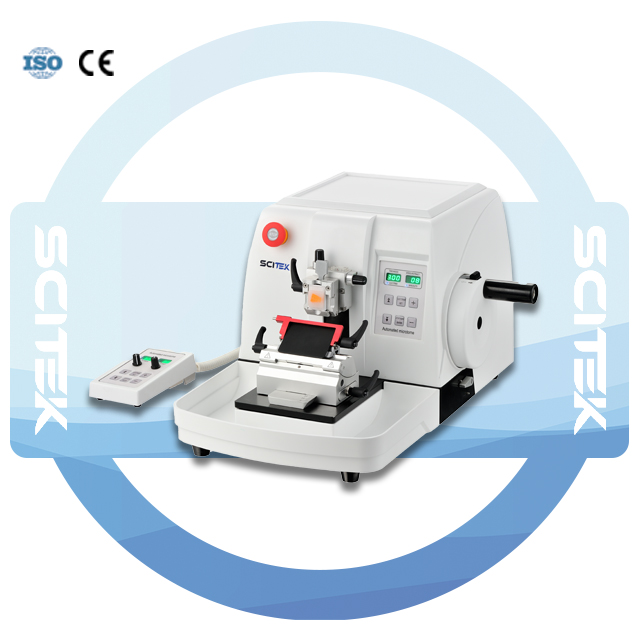

Fully Automated Microtome, MT-A3400

With the MT-A3400 fully automated microtome, even the largest specimens can be sliced with unrivalled quality.

Warning

/www/wwwroot/www.scitekuae.com/wp-includes/class-wp-hook.php

341

Fully Automated Microtome Feature:

Supports sectioning, trimming, fast forward/reverse, and specimen retraction.
Quick switching between manual and continuous sectioning with adjustable cutting speed.
Specimen holder allows rapid positioning and fine adjustment.
Sectioning and trimming can be controlled directly via hand controller.
Lockable handwheel at any position enhances operational safety.
Laterally adjustable blade holder maximizes blade utilization.
Optional 360° rotatable specimen holder for flexible orientation.
Quick-release mechanism between specimen and cassette clamps.
Optional wireless foot switch for hands-free operation.

Fully Automated Microtome Specification:

Model	MT-A3400
Section Thickness Range	0.25-100 μm
Section Thickness Setting	0.25-2.5 μm, in 0.25 μm increments
	2.5-5 μm, in 0.5 μm increments
	5-10 μm, in 1 μm increments
	10-30 μm, in 2 μm increments
	30-60 μm, in 5 μm increments
	60-100 μm, in 10 μm increments
Trimming Thickness Range	1-600 μm
Trimming Thickness Setting	1-10 μm, in 1 μm increments
	10-20 μm, in 2 μm increments
	20-50 μm, in 5 μm increments
	50-150 μm, in 10 μm increments
	150-600 μm, in 50 μm increments
Maximum Specimen Size	70×70 mm
Precision Error	±5%
Total Horizontal Specimen Feed	28 mm
Vertical Specimen Stroke	70 mm
Movement Range of Blade Holder Base	60 mm (front-to-back)
Movement Range of Blade Holder	23 mm (left-to-right)
Orientation	X/Y axis 8°, Rotation 360° (Optional)
Feeding Speed	Low 1500 μm/s, high 3500 μm/s
Continuous Section Speed	0-15 level (adjustable)
Power Supply	AC 220/110 V, 50/60 Hz
Power	150 W
External Size (W×D×H)	580×475×340 mm
Shipping Size (W×D×H)	590×690×550 mm
N.W. /G.W.	41/50 kg
