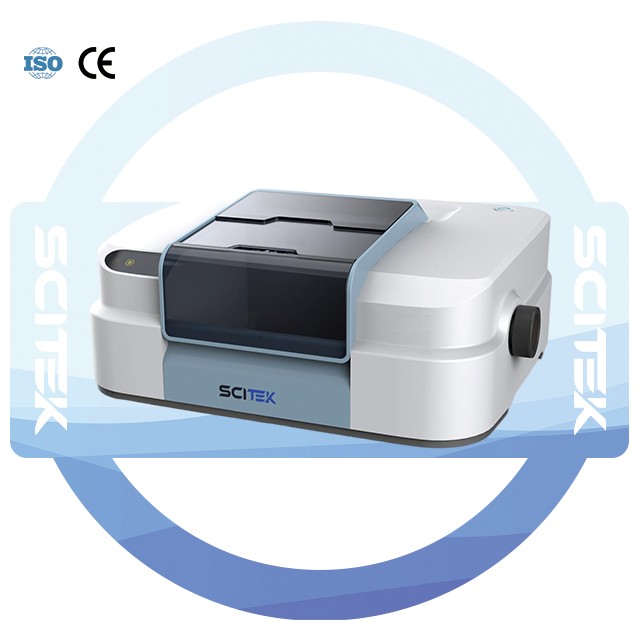

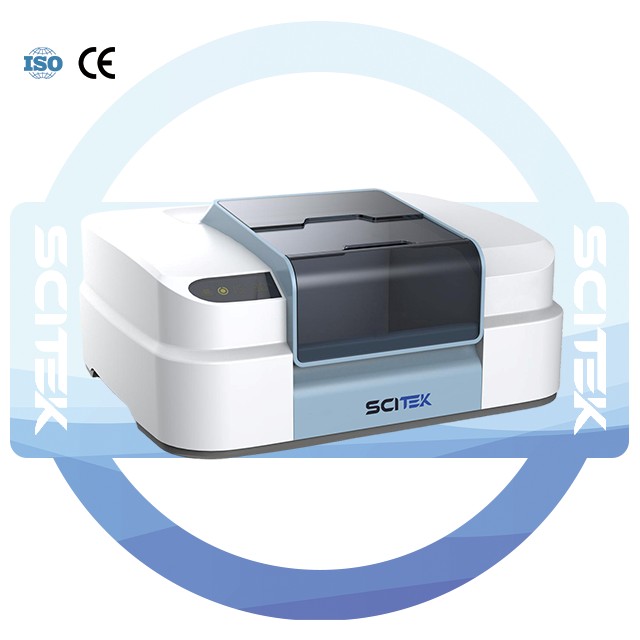

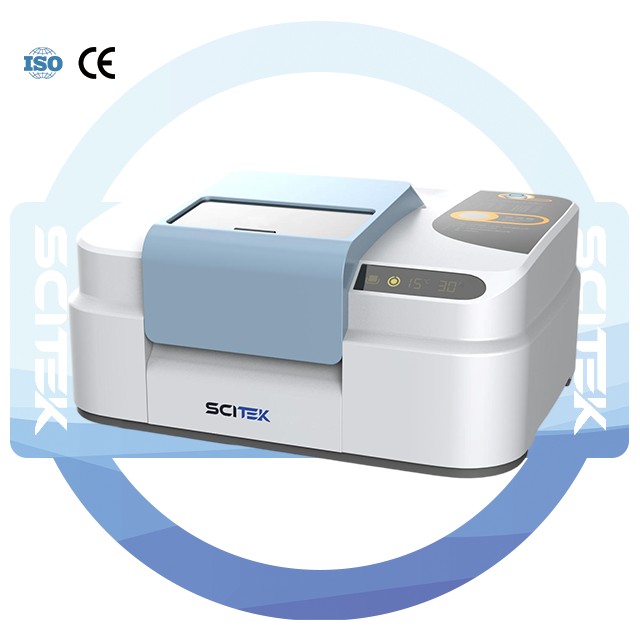

Fourier Transform Infrared Spectrometer

Application:

The Fourier Transform Infrared (FTIR) Spectrometer is an advanced analytical instrument used for identifying and characterizing materials based on their molecular composition. Widely used in chemistry, materials science, pharmaceuticals, and environmental testing, this instrument offers precise analysis of solids, liquids, and gases. By measuring the absorption of infrared light, the FTIR spectrometer provides detailed spectra that reveal functional groups and molecular structures.The system is designed with a large sample chamber and an integrated front-end, which allows for easy conversion for various sampling accessories. This design empowers users to configure different sampling and analysis systems to address any sample detection challenge, while also providing the necessary flexibility for application requirements.

Significant Advantage:

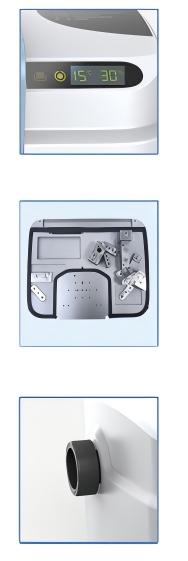

• Industrial-grade temperature and humidity module: the instrument has an industrial-grade temperature and humidity module built in. The display screen directly displays the temperature and humidity digitally, and has a humidity alarm device. Effectively prevent the core components of the instrument from being damaged due to deliquescence.



• Totally sealed cavity: ensure that the whole cavity is sealed dry, improve the moisture- proof effect, and greatly improve the service lif of each component.





• 304 stainless steel box desiccant: reusable 304 stainless steel box desiccant can be replaced without any tools and cover opening.

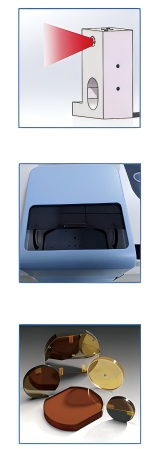

• Silicon carbide rod infrared light source with electronic voltage stabilizing power supply technology (12V, 24W): digital power supply technology is adopted to provide stable and reliable power supply support for the light source.



• Push-pull sample chamber door design: greatly reduce the interference of water and carbon dioxide in the out side air on the test results.



• The window, detector and beam splitter are coated with special coating, which has ultra-high transmittance and can also reduce the corrosion of moisture to potassium bromide.



Specification:

Advantage:

• The interferometer uses DSP to control the electromagnetic drive Michelson interferometer, which has continuous dynamic adjustment function, automatically optimizes the system energy, without manual adjustment.
• The optical compensation technology of three-dimensional right-angle gold-plated mirror is adopted, and the fixed mirror is constant without mechanical dynamic adjustment, and the optical path is permanently collimated.Excellent optical mirror design: the optical mirror adopts the overall SPDT cutting process to ensure the high reflection efficiency of the mirror and the consistency of the optical system.
• High sensitivity DLATGS receiver with polymer moisture-proof membrane.
• Beam splitter: KBr substrate multilayer germanium   plated beam splitter, and other reliable moisture-proof materials such as ZnSe and KRS-5 can be selected.
• The electronic system of SuperTech digital technology. Fully digital, output digital signal. 24-bit, 500KHz A/D conversion, high-speed USB interface, real-time spectral data acquisition, ensuring the authenticity and reliability of the data.
• With powerful expansion function, it can connect transmission accessories, attenuated total reflection accessories (ATR accessories), diffuse reflection accessories, plane reflection accessories, original Accessories, etc.
• Intelligent human-computer interactive operation guidance design, whether you have contact with Fourier infrared software or not, you can quickly operate and skillfully use it.
• Spectrum library: It can provide a variety of professional infrared spectrum libraries (about 220000), covering various industries and meeting the requirements of conventional retrieval, users can also User-defined new spectrum library for retrieval, flexible and convenient. The atlas library includes: national pharmacopoeia atlas library, national veterinary pharmacopoeia atlas library, rubber atlas Graph library, gas graph library, polymer graph library, protein and amino acid graph library, judicial graph library (dangerous goods, chemicals, drugs,etc.) inorganic spectrum library, organic spectrum library, solvent spectrum library, food additive spectrum library, essence flavor spectrum library, paint spectrum Library, etc.
