The fluorescence microscope system is simple and easy to use.
The fluorescence microscope is designed for advanced microscopy applications, offering a robust and versatile platform for researchers. Its sliding binocular head, inclined at 45° with an interpupillary distance of 55-75mm, ensures comfortable and ergonomic use. Equipped with wide-field 10× eyepieces and achromatic objectives (4×, 10×, 40×, 100×), it delivers high-quality imaging and magnification.

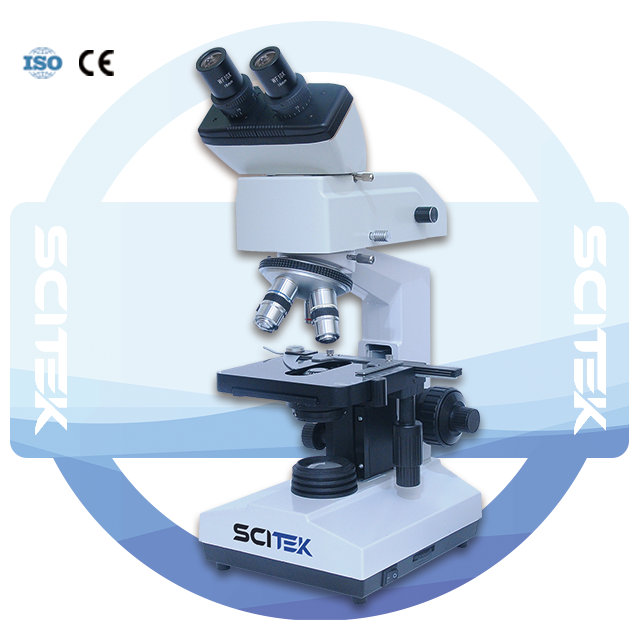

| Model | MSC-F107B |
| Viewing Head | Sliding binocular head, inclined at 45°, interpupillary 55-75mm |
| Eyepiece | WF10×18mm |
| Objective | Achromatic objective: 4×, 10×, 40×, 100× |
| Nosepiece | Quadruple nosepiece |
| Stage | Double layers mechanical stage 140x135mm/ 75x50mm |
| Condense | Abbe condenser N.A. 1.25 with iris diaphragm & filter |
| Focusing System | Coaxial coarse and fine adjustment, fine division 0.002mm, coarse stroke |
| 37.7mm per rotation, fine stroke 0.2mm per rotation, moving range 28mm | |
| Illumination | 3W LED illumination, brightness adjustable |
| 5W fluorescent LED illumination, with adjustable brightness | |
| Fluorescent Attachment | DF-I fluorescent vertical illuminator equipped with a set of fluorescent channels. |
| DF-II fluorescent vertical illuminator equipped with two sets of fluorescence channels | |
| DF-VI fluorescent vertical illuminator can be configured with three to six groups of fluorescent channels | |
| Shipping Size(W×D×H)(mm) | 330x280x440 |
| G.W. (kg) | 7 |
