Application:

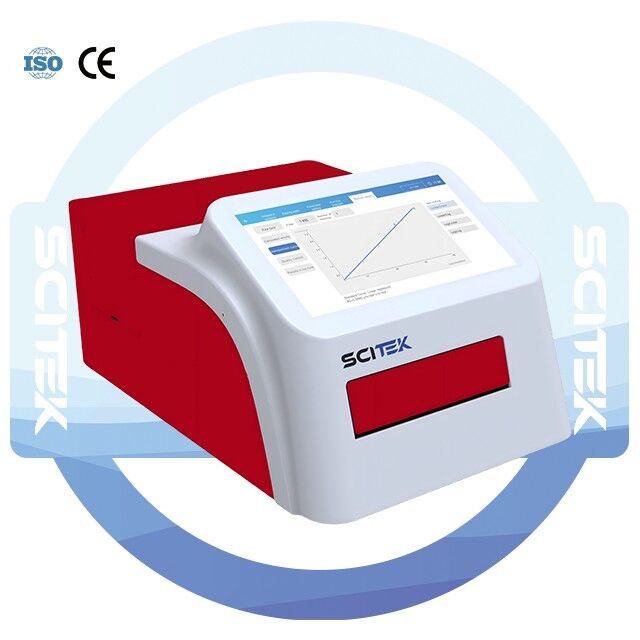

The ELMR-384 is a reliable and flexible microplate reader which can measures the absorbance. It provides reliable and qualified results by the high quality photometer through the built-in powerful software. By the big 10’ colorful touch screen, the user enjoys the intuitive operation on the system. And the visual user friendly interface with the logical workflow ensures the excellent usability, making it ideal for various fields in the research laboratories, such as Immunoassays (ELISA), protein assays (BCA, Lowry, Bradford). endotoxins, cytotoxicity and proliferation assays, enzyme assays, growth curves.

Advantage:

Wide wavelength range of 330nm to 900nm with an accuracy of 0-6 Abs absorption range. Scientific design of optical system to ensure the accurate measuring results. The optimum design and the verification of the optical path and circuit, meet the wide detection range from 330-900 mm wavelength.The detection results of each band are accurate and stable, applicable to a variety of rigorous applications.
Easy but powerful software with its logical workflow for universal usability. The stable and reliable performance comes from the built-in self-diagnostic program of the machine. In the start-up stage, the built-in self-diagnostic program detects the position of the microplate, and the stability of optical components.
The powerful internal software’s functions include:

Main: protocol, plate format, measurement, shaking, incubation;
Process: plate layout, preprocessing, calculation, qualitative analysis, quality control;
Results: raw data, calculated results, Standardized Curve, quality control, results in list format;
Settings: system,filters, Temperature, Other.

Two modes of operation: touch screen and PC. 10-inch high-definition color touch screen displays more inspection data. Its large icons is easy for touch operation and minimize misoperation, making it simple and intuitive. Standard PC operating software for convenient operation. It supports wired/wireless connection to computer.
Fast reading of both 96 well and 384 well microplates.
Shaking and incubation from RT+4’C to 55℃ for temperature critical assays.
8 filters wheel with four preset filters.
High sensitive detector.
USB port for easy data transfer, connecting to printer.

Speciﬁcation:

Model	ELMR-384
Plate	96-well and 384-well plates
Light Source	Quartz-halogen lamp
Detector Type	Photo detector
Wavelength Selection	Filters (330-900 nm)
Filters Wheel	8 filters wheel; Filters installed: 405nm, 450nm, 492nm and 630nm. Additional filters can be ordered separately
Optional Filters	340/375/414/520/530/540/550/560/570/595/620/650/690/740/750 /820
Halfbandwidth of Filters	3-9 nm
Linearity	0-4 Abs @ 405 nm; (0-3Abs ± 2% in rapid measure mode, 0-4 Abs ± 2% in common measure mode)
Readout Range	0-6 Abs
Absorbance Resolution	Abs 0.001
Accuracy	± 1% (0-3 Abs) @ 405 nm; ± 2% (3-4 Abs) @ 405 nm
Precision	CV ≤ 0 .2% (0-3 Abs); CV ≤1% (3–4 Abs) @ 405 nm
Shaking	Linear shaking with three modes: slow, medium, fast
Measurement Speed	8 seconds, 96-well plate, fast mode; 12 seconds, 96-well plate, normal mode; 16 seconds, 384-well plate, fast mode; 24 seconds, 384-well plate, normal mode
Incubation Temperature	RT+4℃ to 55℃ (configured for standard)
Display	10-inch HD color touch screen
Data Export	USB
Printer	USB/WiFi
PC Software	configured for standard
Power Supply	AC100-240V 50-60Hz
Size（W×D×H）	290×400×220 mm

ELISA Microplate Reader, ELMR-384
