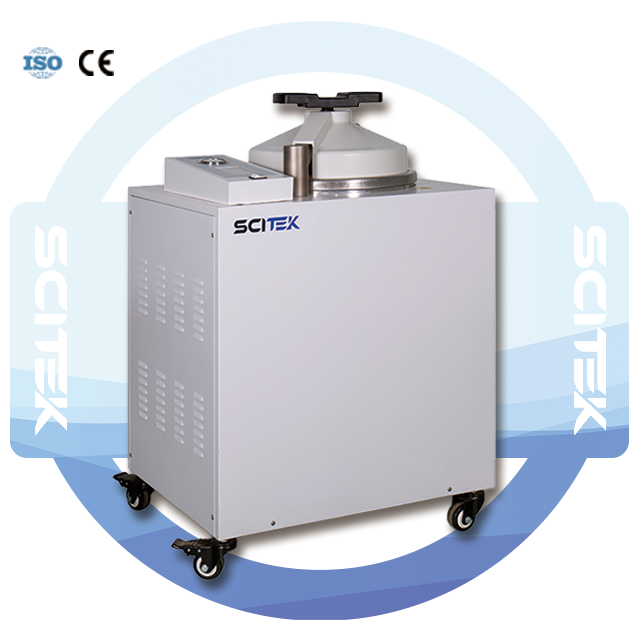

Vertical Pressure Steam Sterilizer Feature:

Overheat protection: Auto heating cut-off with alarm when overheated.
Anti-burning protection: Auto heating cut-off with alarm if water level is low.
Interlock safety: Prevents cycle start or door opening under pressure.
Steam pressure safety valve: Activates when pressure exceeds safe limit.
Automatic operation: PID microprocessor control with LED display for seamless sterilization.

Vertical Pressure Steam Sterilizer Specification:

Model	ST-V50E	ST-V80E	ST-V100E
Capacity	50L	80L	100L
External Size (WxDxH)(mm)	476x616x990	546x688x1030	566x708x1295
Chamber Size (ØxH)(mm)	Ø316×667	Ø386×695	Ø400×800
Chamber Material	SUS304
Sterilization Temperature	105~136 ℃
Designed Temperature	150℃
Max.Working Temperature	136 ℃
Dissolution Temperature	40~100℃
Warming Temperature	40~60℃
Temp.Accuracy	0.1℃
Designed Pressure	0.3 Mpa
Max.Sterilization Pressure	0.23 Mpa
Sterilization Time Range	0~99min
Temp. Controller	PID control by microprocessor
Display	LED display
Drying Function	YES
Drying Time	15min
Sterilization Program	●High temperature instrument program
	●Low temperature instrument program
	●Culture medium sterilization warming program
	●Culture medium dissolution warming program
Water Injection Method	Manual
Power Consumption	3KW	4.5KW	5.4KW
Power Supply	220V 50Hz	220V 50Hz	220V 50Hz
Standard SS Basket	2pcs	2pcs	2pcs
Net Weight	55kg	65kg	80kg
Gross Weight	90kg	100kg	120kg
Shipping Size (WxDxH)(mm)	730x700x1250	800x770x1300	800x770x1480
