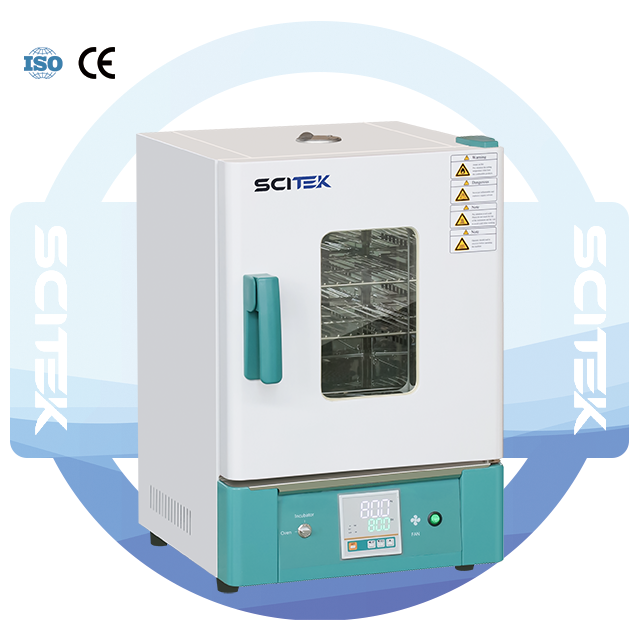

Drying Oven/Incubator(Dual-use)

Drying Oven/Incubator Feature:

Double air ducts ensure efficient horizontal air circulation and uniform temperature.
PID controller with over-temperature protection for safety.
Features oven/incubator and fan switches; high-temp blast motor with LED display.
Four-speed adjustable fan meets varying needs.
High-precision digital temperature limiter ensures reliable operation.

Drying Oven/Incubator Specifications:

Model		DOI-30I	DOI-45	DOI-65	DOI-85	DOI-125	DOI-230
Capacity (L)		30	45	65	85	125	230
Circulation Mode		Forced convection
Size (WxDxH)	Internal (mm)	310x310x310	350x350x350	400x360x450	450x420x450	500x450x550	600x500x750
Size (WxDxH)	External (mm)	460x510x695	500x550x735	550x550x840	590x610x830	636x680x915	735x835x1115
Temperature	Range (℃)	Incubator: RT+5~80℃, Drying oven: 80~300℃
	Fluctuation (℃)	±1
	Resolution (℃)	0.1
	Uniformity (℃)	±2.5%
	Sensor	PT100
Controller		PID
Display		Digital LED
Timer		0 – 9999min (with timing wait function)
Material	Internal	Mirror Stainless Steel
Material	External	Cold rolled steel electrostatic spraying exterior
Shelves (Standard / Max )		2/5	2/6	2/8	2/8	2/11	2/17
Test Hole (Standard)		Φ35mm top with function of test hole
Safety Device		Over temperaure visible & audible alarm
Electricity	Voltage/Frequency	AC 220/110V, 50/60Hz
Electricity	Consumption (W)	800	1200	1600	2000	2300	3000
N.W./G.W. (kg)		33/37	37/43	44/49	50/56	65/72	94/120
Shipping Size (WxDxH) (mm)		540x585x855	590x625x895	640x635x995	690x690x1000	720x730x1100	860x885x1287
Optional		Spare shelf
