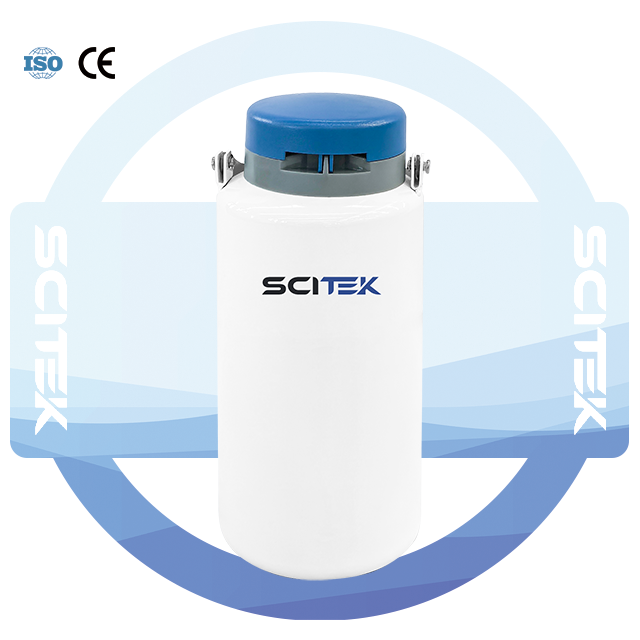

Dry Shipper Liquid Nitrogen Tank BD Series

Model : LNC-015-30BD; LNC-3-30BD; LNC-4-70BD; LNC-6-50BD; LNC-6-80BD; LNC-6-190BD; LNC-10-80BD; LNC-10-125BD; LNC-15-216BD; LNC-25-216BD;
Capacity L : 1.5; 3; 4; 6; 10; 15; 25
Liquid nitrogen adsorption L : 0.6; 1.3; 1.8; 2.6; 2.4; 1.8; 5.8; 6; 6; 10

Dry Shipper Liquid Nitrogen Tank Feature:

Gas phase low-temperature storage, rapid liquid nitrogen filling, sturdy and durable aluminum structure, lockable lid

Dry Shipper Liquid Nitrogen Tank Specifications:

Model	LNC-015-30BD	LNC-3-30BD	LNC-4-70BD	LNC-6-50BD	LNC-6-80BD	LNC-6-190BD	LNC-10-80BD	LNC-10-125BD	LNC-15-216BD	LNC-25-216BD
Capacity (L)	1.5	3	4	6	6	6	10	10	15	25
Liquid nitrogen adsorption (L)	0.6	1.3	1.8	2.6	2.4	1.8	5.8	6	6	10
Handle bucket size (mm)	Ø25*120	Ø38*120	Ø63*276	Ø47*200	Ø70*276	13913956	Ø76*276	7676225	139139112	139139280
Quantity of 2ml cryovials	6	9	96	21	126	100	132	100	400	500
Quantity of 25 compartment freezer box	N/A	N/A	N/A	N/A	N/A	N/A	N/A	4	N/A	N/A
Quantity of 100 compartment freezing boxes	N/A	N/A	N/A	N/A	N/A	1	N/A	N/A	4	5
Quantity of 50ml blood bags	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
Quantity of 250ml blood bags	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A	N/A
Static evaporation rate L/day	0.09	0.15	0.19	0.21	0.21	0.8	0.35	0.4	0.89	0.89
Working days	7	9	9	12	11	2	17	15	7	11
Caliber(mm)	35	50	70	50	80	190	80	125	216	216
Overall height (mm)	395	435	580	488	435	505	584	554	480	706
External diameter (mm)	180	224	224	300	300	254	300	300	396	396
Empty weight (kg)	1.8	3.3	5.5	5.5	5.5	6.5	7.5	8	11	12.5
Full weight (kg)	3	5.7	8.8	9.2	10.4	11.4	12.3	16.1	23.2	32.9
