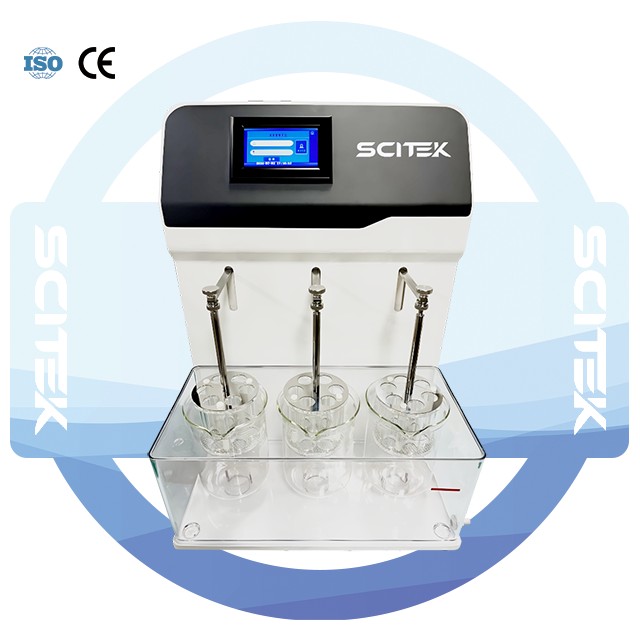

Disintegration Time Limit Tester, DTLT-3GS

This disintegration tester is widely used in the pharmaceutical industry and drug development field.

  • Model : DTLT-3GS
  • Number of Hanging Baskets : 3
  • Lifting Distance : 55±1 mm
  • Upgrade Frequency : 31±1 times/minute
  • Water Bath Temperature : RT ~45 ℃
  • Temperature Resolution : 0.01 ℃

Share the product

Applicatiopn:

The Disintegration Time Limit Tester ensures the reliability and compliance of oral solid dosage forms, making it essential for use in pharmaceutical laboratories, quality control and production environments. It is widely used in the pharmaceutical industry to evaluate the disintegration behaviour of tablets and capsules, providing essential information for the development, production and quality assurance of medications.

Advantage:

  • Adopts a 3-cup design and can carry out 3 groups of disintegrator time limit tests simultaneously.
  • Overall water bath design, water bath temperature is more stable and uniform.
  • High precision platinum resistance Pt1000 sensor for more accurate temperature.
  • Quickly remove the hanging basket card, you can quickly disassemble the hanging basket.
  • Color touch screen operation, automatic positioning of the sandblasting floor.
  • Three cups of independent lighting system for easy observation.
  • With audit trace and permission management functions.

Specification:

Model DTLT-3GS
Number of Hanging Baskets 3
Lifting Distance 55±1 mm
Upgrade Frequency 31±1 times/minute
Water Bath Temperature Room temperature ~45 ℃
Temperature Resolution 0.01 ℃
Temperature Control Accuracy 37±0.3 ℃
Screen Size Standard 2 mm; Options: 1, 0.71, 0.42 mm
Rights Management Three levels, seven users
Audit Trail 96 items ×366 days
Login Mode User name + password, fingerprint
Online Printing Supported. (optional)
FingerprintLogin Supported. (optional)
Power Supply 110/220 V, 50/60 HZ
Packing Size 500×500×780 mm
G.W. 22 kg
