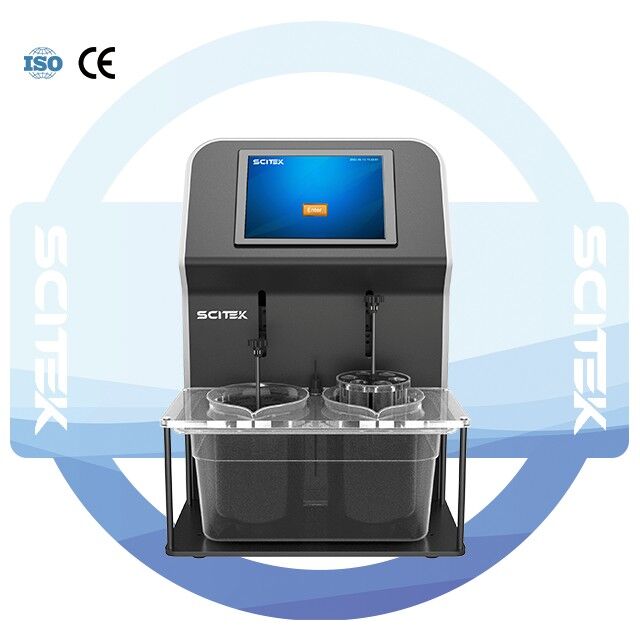

This disintegration time limit tester adopts a PT100 high-precision temperature control sensor enables real-time constant temperature control. And its 7-inch full-color LCD touch screen makes operation and display easier.
The DTLT-200 disintegration tester streamlines testing in R&D and quality control applications. It is suitable for a wide range of tablets and capsules, including conventional, extract tablets, film-coated, coated, sustained-release, and capsules. All performance parameters fully comply with the requirements of the Chinese Pharmacopoeia, United States Pharmacopoeia, and other relevant standards.
Disintegration Time Limit Tester Specification:
| Model | DTLT-200 |
| Number of Lifting Baskets | 2 sets |
| Temperature Prefabrication Range | RT-50 ℃ |
| Temperature Display Resolution | 0.1 ℃ |
| Temperature Control Accuracy | ≤0.2 ℃ |
| Timing Prefabrication Range | ≤1000 hours (resolution: minutes) |
| Lifting Frequency of Basket | 30-32 times/group |
| Lifting Distance of Basket | 55±1.0 mm |
| Minimum Spacing from Screen to Basket Bottom | 25±1.0 mm |
| Mesh Size | standard 2.0 mm, optional 0.42 mm, 0.71 mm, 1.0 mm |
| Power Supply | AC 220 V±10%; 50 Hz; 600 W |
| Storage Capacity | 256 M (expandable to 64 GB) |
| Communication Port | RS232, RS485, USB |
| Size (W×D×H) | 390×402×511 mm |
| Shipping Size(W×D×H) | 500×500×750 mm |
| N.W. (kg) | 12.5 |
