This disintegration time limit tester is able to simulate the environment of human digestive tract and accurately determine the dissolution of drug formulations within a certain period of time, which is widely used in the pharmaceutical industry and drug research and development fields.
The disintegration time limit tester is a disintegration tester that complies with international pharmacovigilance regulations. Its design complies with the relevant specifications and provides an efficient, reliable and convenient testing experience through intelligent control and advanced technology.

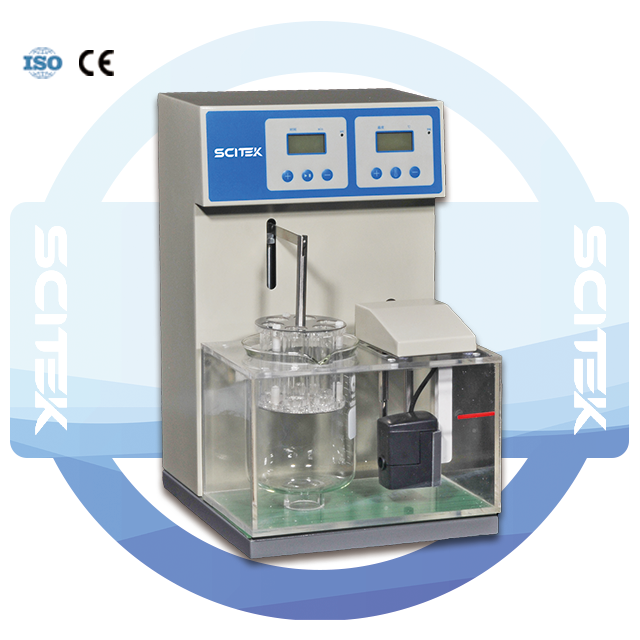

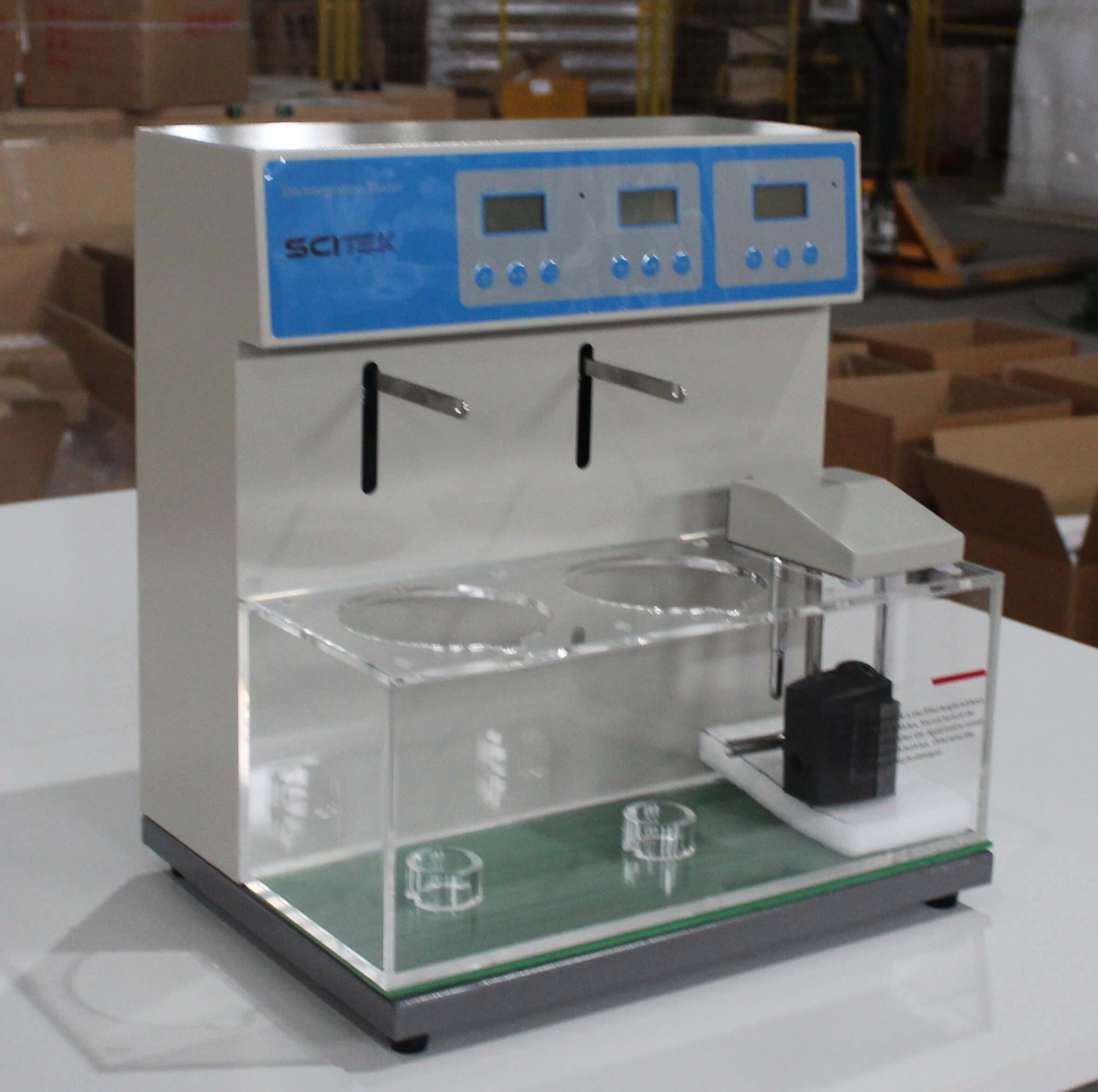

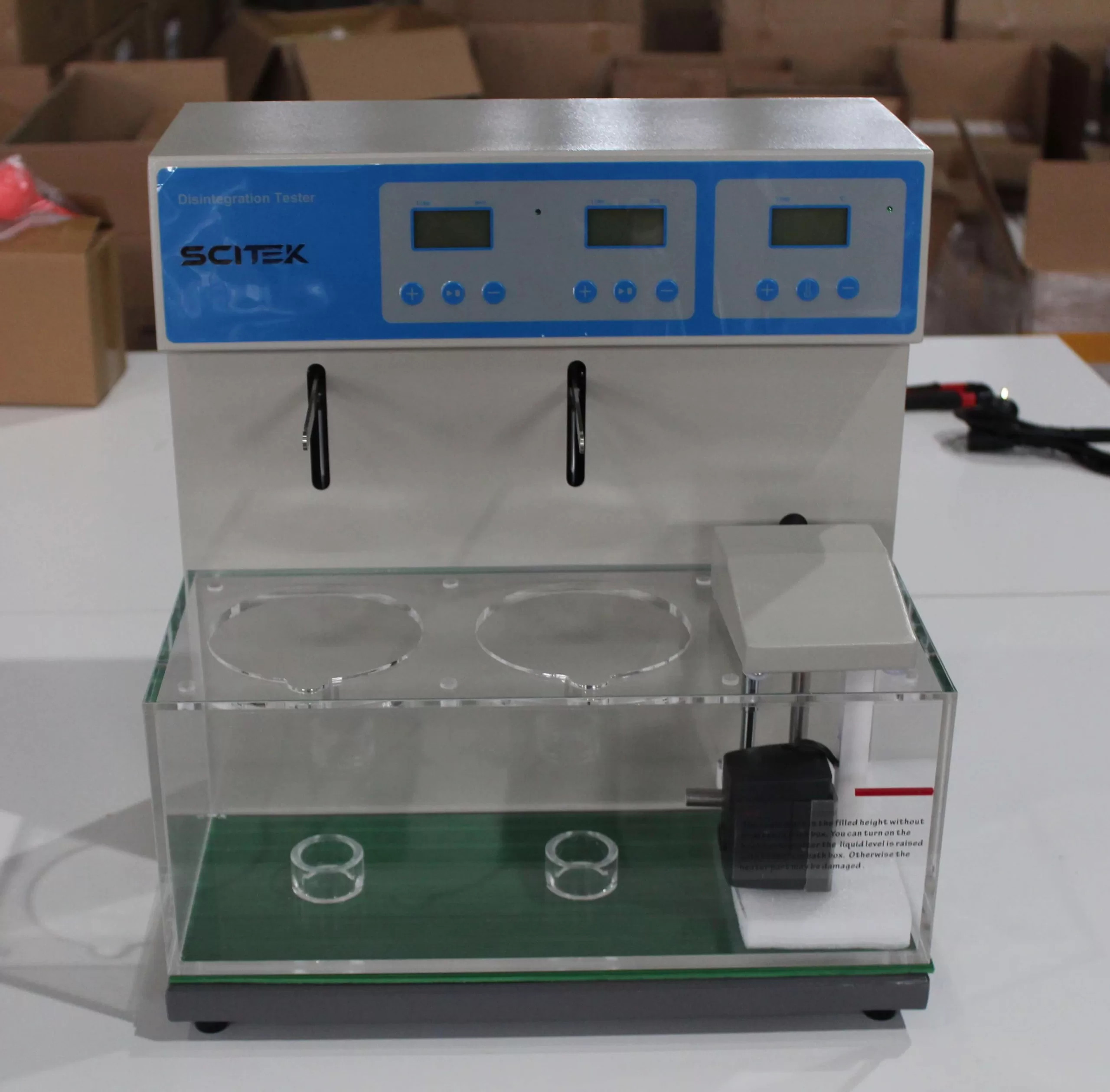

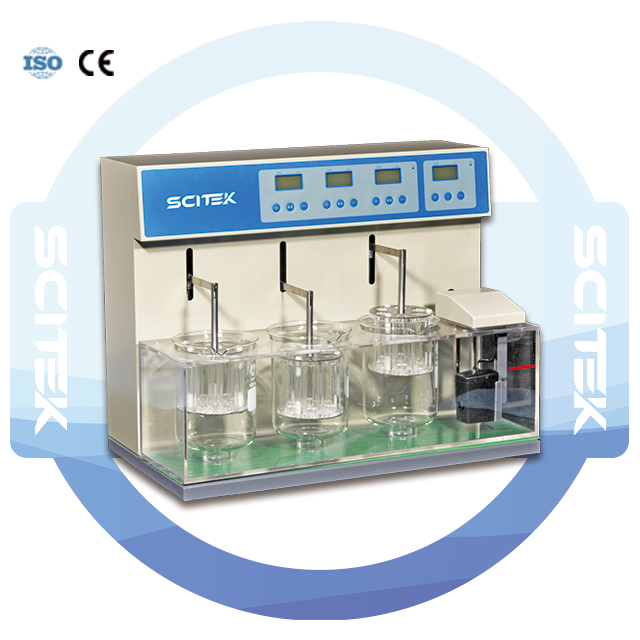

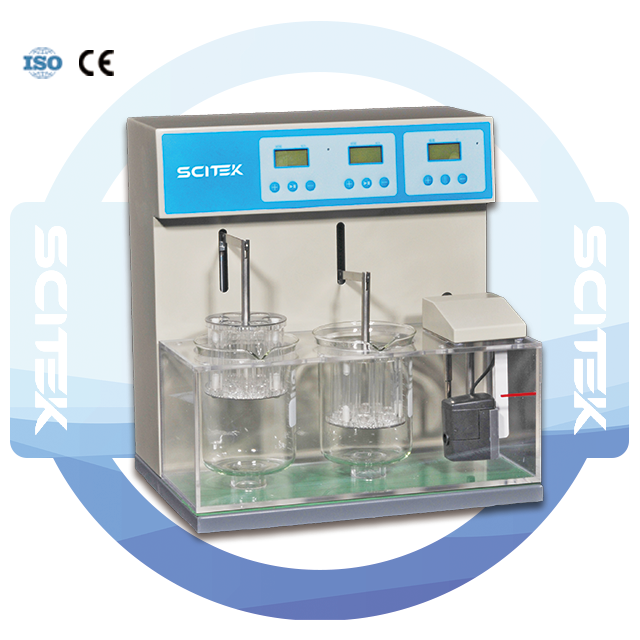

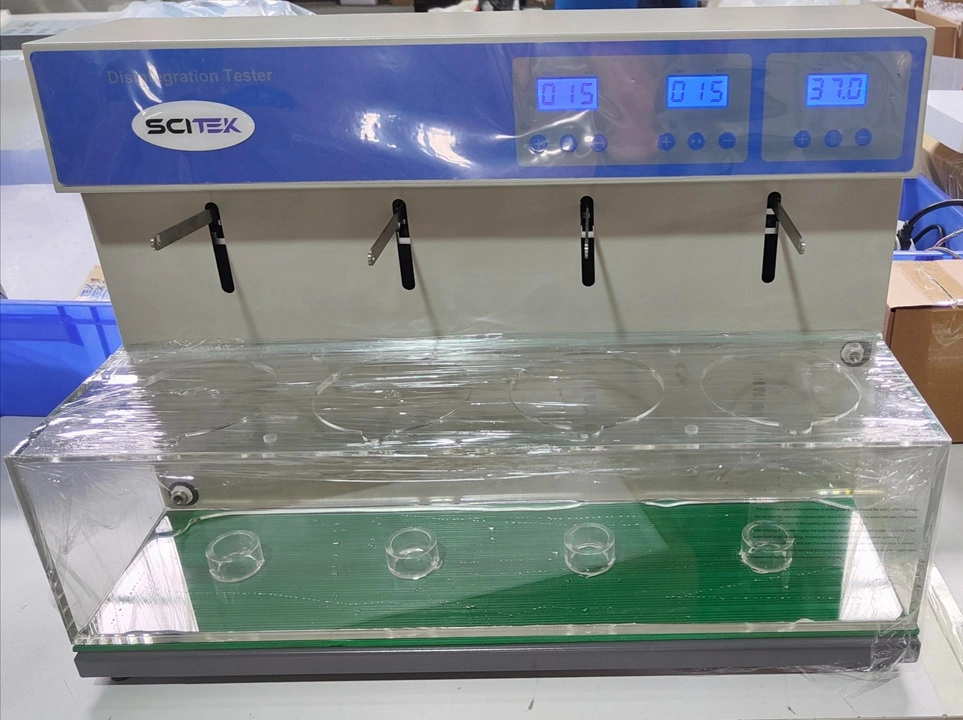

| Model | DTLT-I | DTLT-II | DTLT-III | DTLT-IV | DTLT-BJ |
|---|---|---|---|---|---|
| Temperature Prefabrication Range | RT～50℃ | ||||
| Display Resolution | 0.1℃ | ||||
| Temperature Control Accuracy | ±0.3℃ | ||||
| Timing Prefabrication Range | 1min~900min | 1min~999min | 1min~900min | 1min~999min | |
| Time Control Accuracy | ±0.5min | ||||
| Work Noise | ＜60db | ||||
| Number of Lifting Baskets | 1 set | 2 sets | 3 sets | 4 sets | 2 sets of ordinary disintegration baskets, 1 set of oral disintegration special baskets |
| Lifting Frequency of Basket | 30～31 times/min | ||||
| Lifting Distance of Basket | (55±1) mm | ||||
| Minimum Spacing from Screen to Beaker Bottom | 25mm±2mm | ||||
| Mesh Size | Standard configuration 2mm (Optional for 0.425mm and 1mm bore diameters) | Standard configuration 2mm×2 (Optional for 0.425mm and 1mm bore diameters) and 710um×1 | |||

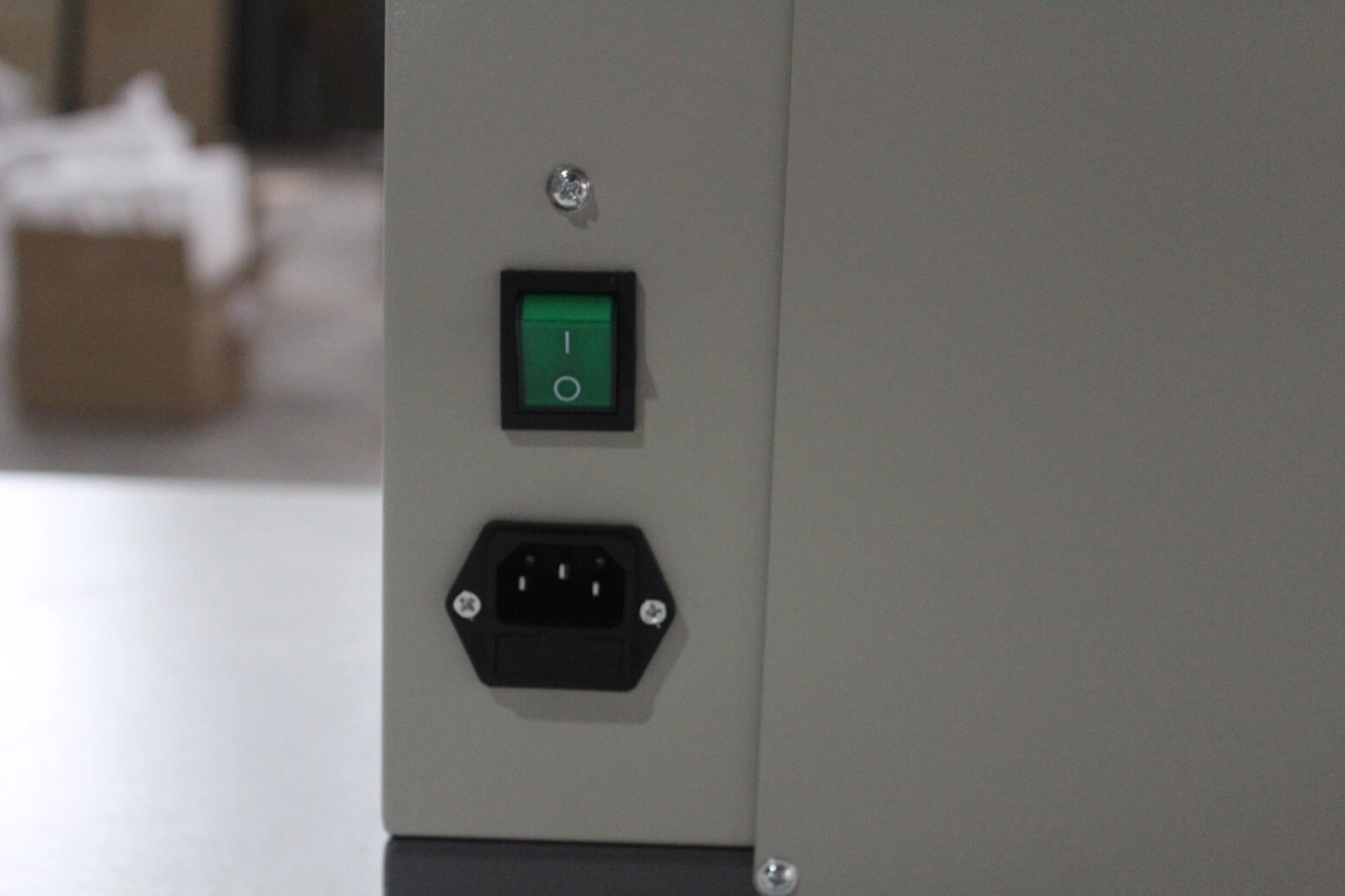

| Power Supply | AC220/110V; 50/60Hz | ||||
| Total Power | 600W | ||||
| Size (W×D×H)(mm) | 260×300×440 | 400×320×440 | 540×320×440 | 620×350×470 | 540×320×440 |
| Shipping Size (W×D×H)(mm) | 360×400×530 | 520×410×550 | 660×420×550 | 720×420×550 | 670×430×550 |
| N.W./G.W. (kg) | 12/17 | 15/23 | 20/30 | 22/32 | 18/25 |

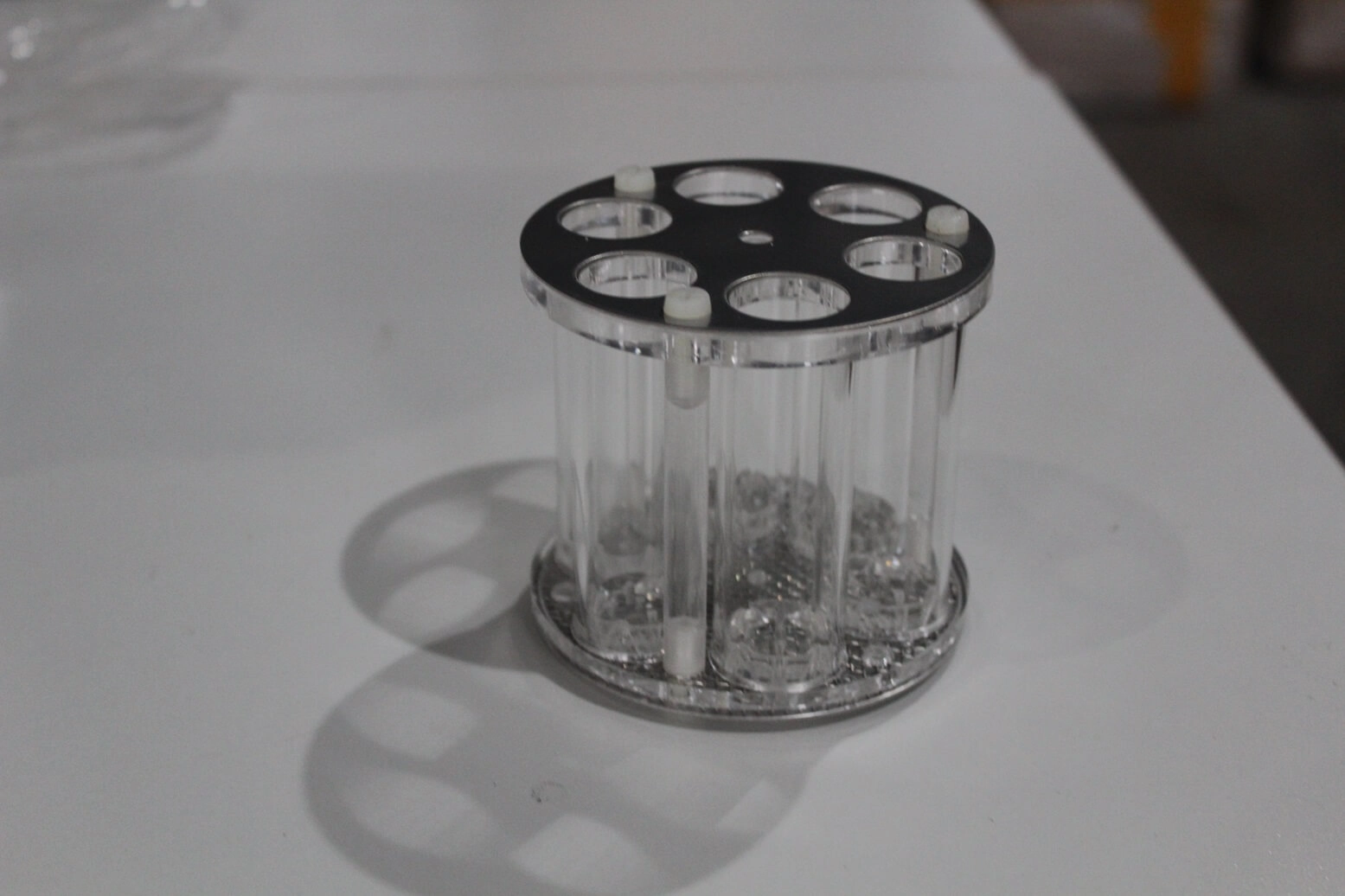

The disintegration time limit tester’s test rack and glass beaker are fully equipped and compatible with multiple sample positions.
The disintegration time limit tester is equipped with a heating control system and automatic timing function to ensure a constant temperature and accurate testing process.
