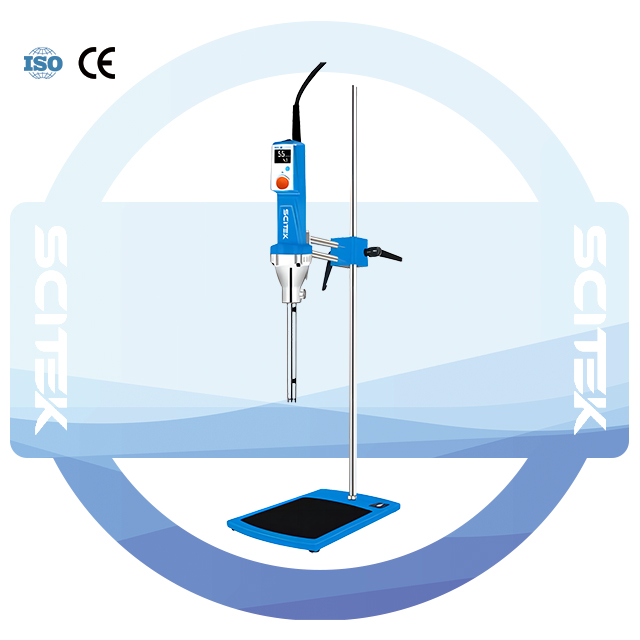

Digital Homogenizer

The new digital homogeniser offers the perfect combination of reliability, versatility and power.

Model : HMG-D25
Speed Display : LCD
Speed Mode : Knob adjust
Capacity(ml) : 0.2~10000
Timer Range(min) : 0~999
Shipping Size (W×D×H)(mm) : 803×400×140

Share the product

HMG-D25 laboratory homogeneous emulsifier is a mechanical equipment specially designed for sample homogeneous emulsification. Digital homogenizer can be equipped with a variety of working heads of different specifications to quickly realize sample dispersion, homogenization, emulsification, suspension, stirring, etc. At present, it has been widely used in biological animal and plant tissue cells, medicine, cosmetics, food, medicine, chemical industry and many other fields.

Advantage:

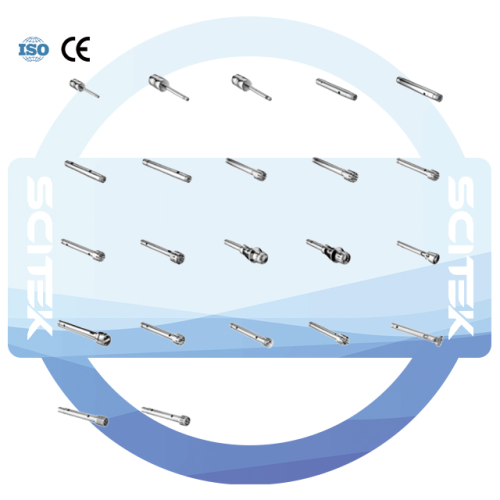

A variety of working heads of different specifications to meet the processing capacity of 2～10L.
0~999min timing range, the instrument stops automatically after the operation is over.
With 1~6 gears, the speed can be adjusted, which is suitable for different sample processing requirements.
With LCD digital display function, the speed, time and sample temperature are clear at a glance.
High-performance brushless motor, strong and efficient, stable operation, low noise, long life, can run for a long time.
Stepless speed regulation function, the maximum speed can reach 34000rpm, providing a linear speed of 27m/s for sample homogenization.
Two-way support rod design combined with double-hole fixing clips to form an integrated lifting adjustment system to make your experiments more reliable and safer.
The digital display model can be equipped with a temperature sensor to measure the temperature of the sample in real time. When it reaches the set value, it will automatically stop running, making the experiment safe and secure.

Digital Homogenizer Specifications:

Model	HMG-D25
Machine Type	Digital Type
Rated Voltage(v)	200~240	110
Speed Range(rpm)	4000~26000	4000~26000
Speed Range(H₂O)	4000~26000	4000~21000
Input Power(w)	1050	1050
Output Power(w)	750	600
Frequency(Hz)	50~60
Motor Type	Brushless motor
Speed Accuracy(rpm)	±100
Speed Display	LCD
Speed Mode	Knob adjust
Capacity(ml)	0.2~10000
Timer Range (min)	0~999
Time Display	LCD
Temperature Testing Range(C)	-10~199
Set Include	Host +working head (stand options)
Standard Working Head	HR25P-25G-S2V
Host Dimension(mm)	365×φ90
Host Shipping Size (W×D×H)(mm)	470×340×205
Host N.W/G.W (KG)	2.5/2.9
SET N.W/G.W (KG)	6.5/9
Shipping Size (W×D×H)(mm)	803×400×140
