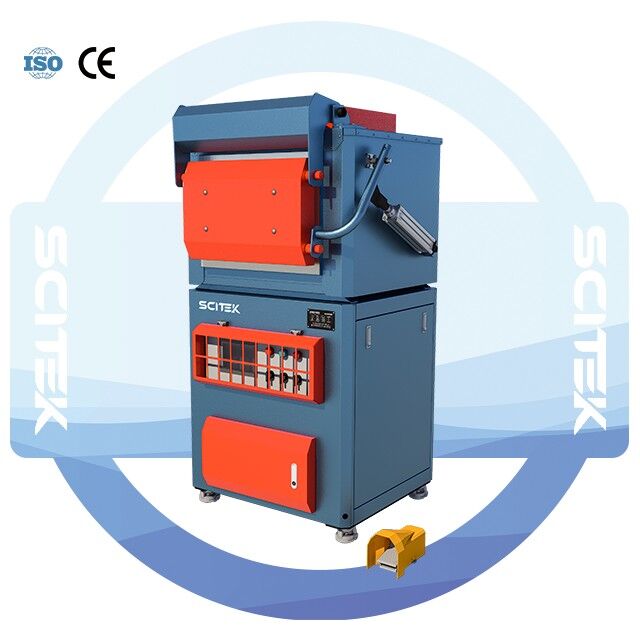

Cupellation Furnace

It is primarily used for refining ash in pyrometallurgical assays.

Model : CF-50; CF-100
Electrical load: 5 AMPS
Rated Temperature : 1200 ℃
Temperature Control : K-Type Thermocouple
Electrical Requirement : 10.5/35 kW Three-phase
Taking Cupel Quantity : 50×6a/ 7a/ 7as, 100×6a/ 7a/ 7as

Share the product

Application:

Experiments and production in fields such as electronics, ceramics, metallurgy, glass, and new materials development are mainly used for ash blowing refining in pyrometallurgical assays.

Advantage:

Cabinet is zinc anneal sheet steel, lined with fire bricks and backed with Vermiculite Insulation board. The furnace is mounted on a console fabricated from Zinc Anneal sheet and the external surface is electrostatic spraying.
Refractory Lining: Hot face of alumina fire-brick backed with insulating fire-brick.
Temperature Control: Electronic, Automatic control 1200 °C, k-Type Thermocouple.
Electrical Requirements: The furnace is fitted with a 10 AMP single phase cord and plug top.
Electrical load: 5 AMPS.
Door Operation: Pneumatic rising. Operated by foot control.

Specification:

Model	CF-50	CF-100
Muffle Size (mm)	480×300×250	610×540×350
Overall Dimension (mm)	800×840×1600	980×1080×1700
Taking Cupel Quantity	50×6a, 7a, 7as	100×6a, 7a, 7as
Rated Temperature (℃)	1200	1200
Electrical Requirement	10.5 kW Three-phase	35 kW Three-phase
Power Supply	AC 380 V, 50/60 Hz
Package size (mm)	1230×1070×2040	1480×1090×2040
G.W. (kg)	577	888
