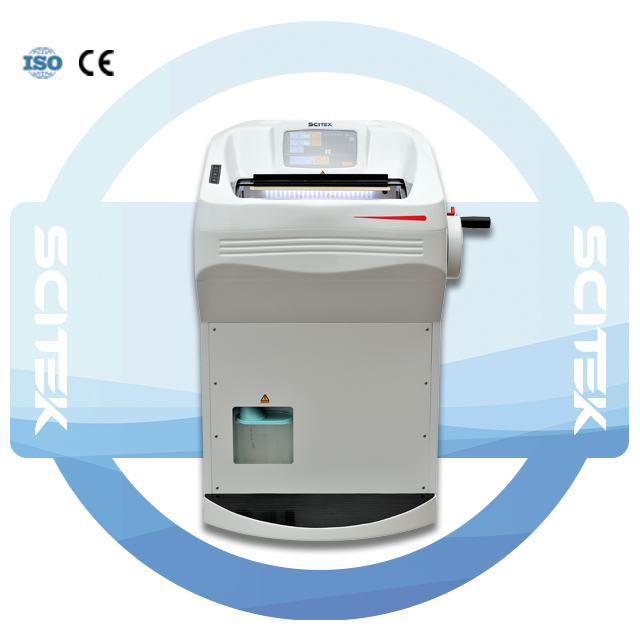

Cryostat Microtome

This cryostat microtome facilitates the processing of a number of temperature sensitive samples and is suitable for the sectioning of tissue samples in the field of neuroscience.

Model : MT-C3000
Section Thickness Range: 0.5-100 μm
Maximum Specimen Size: 55×80 mm
Specimen Feed: 22 mm
Freezer Chamber Temperature: +10℃ to -60 ℃
Lowest Temperature for Cryo Table: -50 ℃
Lowest Temperature of Quick-freeze Shelf: Below -65 ℃

Share the product

Advantage:

10-inch color LCD touch screen, easy to operate.
Low-voltage DC LED lighting: low power, soft light.
UV disinfection: 15-minute cycles, can stop anytime.
With specimen retraction to promise the good section.
One-click switch between section and trimming mode during operation.
Counter displays total sections and thickness in real time.
Can reach set temperature within 30 minutes once start up.
Semi-conductor refrigeration,, minimum temperature reaches -60 ℃ .
Features scheduled defrost and instant defrost modes.
Smart sleep mode: chamber temp -5 to -15℃ during sleep; reaches set temperature within 15 minutes after wake, saving energy and extending lifespan.
Hand wheel locking function: 360° locked at any position.
Big cryo table for 24 tissue specimens, including 6 semi-conductor cryo spots.
Specimen clamping head auto-returns to start position when reaching limit.

Speciﬁcation:

Model	MT-C3000
Section Thickness Range	0.5-100 μm
Section Thickness Setting	0.5-5 μm, in 0.5 μm increments
	5-20 μm, in 1 μm increments
	20-50 μm, in 2 μm increments
	50-100 μm, in 5 μm increments
Trimming Thickness Range	5-600 μm
Trimming Thickness Range	5-50 μm, in 5 μm increments
	50-100 μm, in 10 μm increments
	100-600 μm, in 50 μm increments
Maximum Specimen Size	55×80 mm
Specimen Retraction	0-60 μm, in 2 μm increments
Total Horizontal Specimen Feed	22 mm
Vertical Specimen Stroke	65 mm
Freezer Chamber Temperature	+10℃ to -60 ℃
Specimen Holder	+10℃ to -60 ℃
Time to Reach -45℃ for Cryo Table	60 min
Lowest Temperature for Cryo Table	-50 ℃
Lowest Temperature of Quick-freeze Shelf	Below -65 ℃
Number of Cryo Spots	18 (conventional)
Electric Coarse Feed	(0.9 mm/s; 0.45 mm/s)
Numbers of Quick-freeze	6
Power Supply	AC 220/110 V, 50/60 Hz
Power Draw	≥800 W
External Size (W×D×H)	700×760×1160 mm
Shipping size (W×D×H)	790×790×1370 mm
N.W. /G.W.	135/180 kg
