Cooling System

The cooling system has two temperature mode, and can be combined with Scitek’s Tissue Embedding Center to complete embedding.

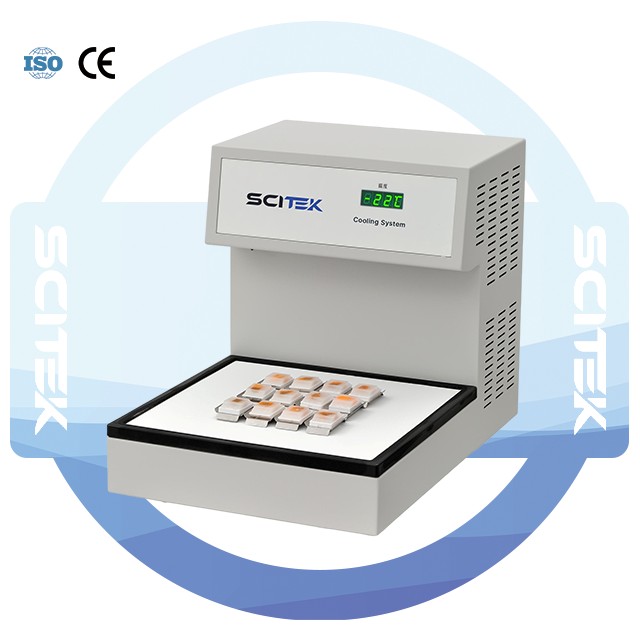

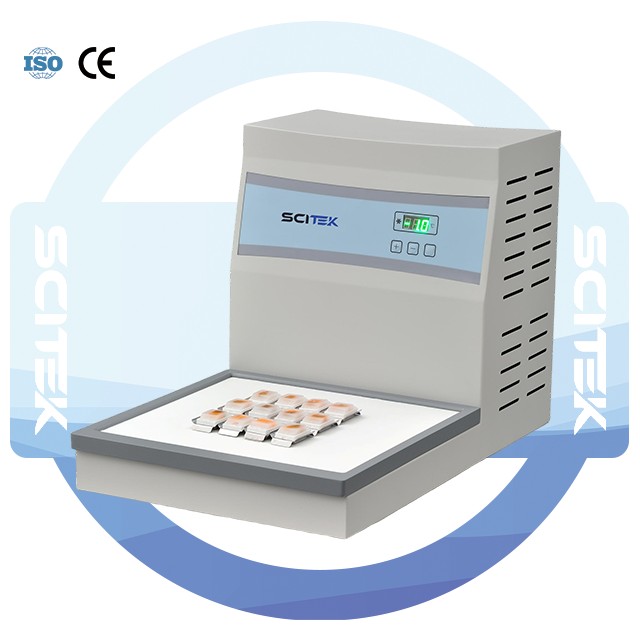

Model: CS-I; CS-III; CS-IV
Temperature Range (Temperature Control Mode): -20 ~ -30 ℃; +5 ~ -35 ℃; +5 ~ -20 ℃
Temperature Accuracy: ±1 ℃
Cold Plate Sizes: 320×300 mm; 330×322 mm; 315×380 mm

Warning

/www/wwwroot/www.scitekuae.com/wp-includes/class-wp-hook.php

341

Cooling System Feature:

U.S.-imported integrated temperature sensing module delivers high measurement accuracy.
Dual front-and-rear switch configuration on the cold plate improves operational convenience and safety.
Modular split structure allows flexible configuration of the embedding unit and cooling system.

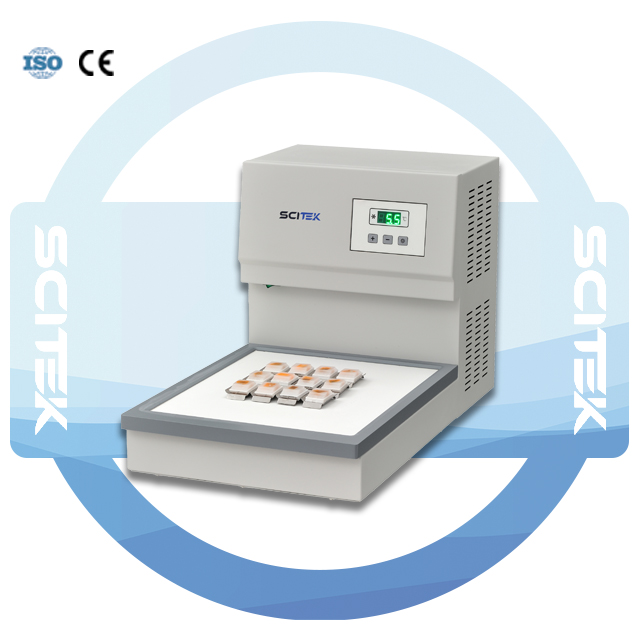

The cooling system features an original imported compressor and eco-friendly, fluorine-free refrigerant for strong cooling performance (CS-IV only).
Supports ultra-cooling and precision temperature control modes for accurate thermal regulation (CS-I & CS-IV only).

Cooling System Speciﬁcation:

Model		CS-I	CS-III	CS-IV
Temperature Range	Cold Plate (Temperature Control Mode)	-20 ~ -30 ℃	+5 ~ -35 ℃	+5 ~ -20 ℃
Temperature Range	Cold Plate (Ultra-refrigeration Mode)	Lowest -30℃	/	Lowest -28℃
Temperature Accuracy		±1 ℃
Cold Plate Size		320×300 mm	330×322 mm	315×380 mm
Power Supply		AC 220 V ± 10% 50 Hz (standard model); AC 110 V ± 10% 60 Hz
Power		300 W
Machine Sizes (W×D×H)		345×590×385 mm	650×380×450 mm	710×350×400 mm
Shipping Size (W×D×H)		700×450×530 mm	800×480×580 mm	790×480×560 mm
N.W. /G.W.		29/37 kg	29/36 kg	30/39 kg
