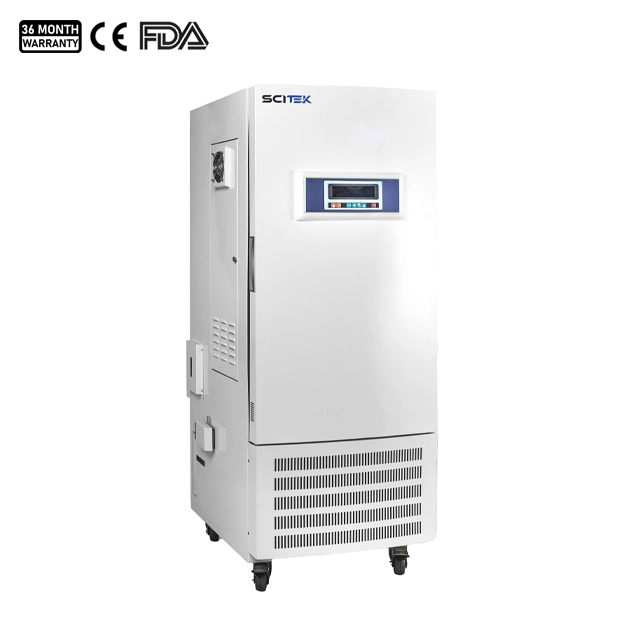

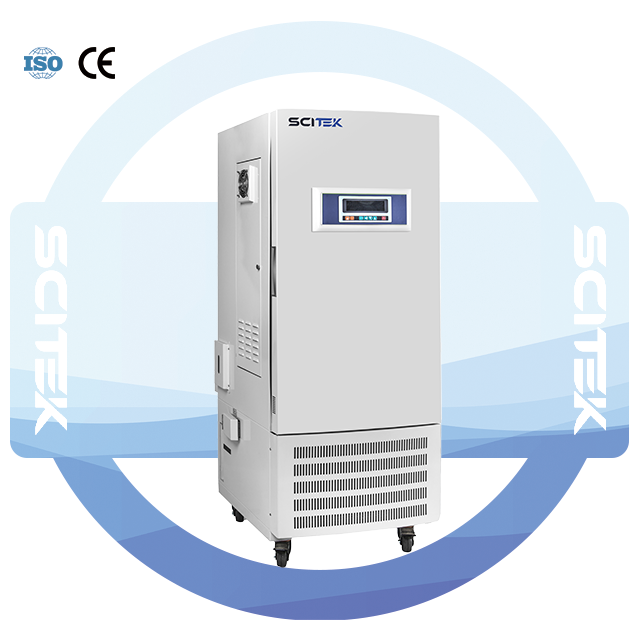

Climate Incubator 175/275/375/475/800/1075L

Model : ICB-175C; ICB-275C; ICB-375C; ICB-475C; ICB-800C; ICB-1075C
Capacity : 175L / 275L / 375L / 475L / 800L / 1075L
Illumination : 0~10000Lx / 0~15000Lx / 0~20000Lx / 0~23000Lx / 0~25000Lx / 0~25000
Circulation Mode : Forced convection
Temperature Range : With light: 10~55, Without light: 5~55

Climate Incubator Feature:

Climate Incubator Specifications:

Model		ICB-175C	ICB-275C	ICB-375C	ICB-475C	ICB-800C	ICB-1075C
Capacity(L)		175	275	375	475	800	1075
Circulation Mode		Forced convection
Size	Internal (mm)	450x420x930	580x510x935	590x550x1160	700x550x1250	960x610x1370	950x700x1600
Size	External (mm)	610x620x1500	740x710x1570	750x750x1730	860x750x1820	1130x930x1980	1010x900x2240
Temperature	Range (℃)	With light: 10~55; Without light: 5~55
	Fluctuation (℃)	≦ ±1
	Resolution (℃)	0.1
	Uniformity (℃)	≦ ±1
	Sensor	PT100
Humidity	Range	30~95%RH
	Stability	±3%RH
	Method	Internal
	Sensor	High precision anti-condensation
Illumination(Lx)		0~10000	0~15000	0~20000	0~23000	0~25000	0~25000
Controller		Microcomputer
Display		Large high efinition LCD
Timer		1~99.9h x 30 Segments
Material	Internal	Mirror Stainless Steel
Material	External	Coated cold rolled steel
Shelves(Standard/Max )		3/16	3/16	3/21	3/22	3/22	3/22
Test Hole (Optional)		Φ25mm (50mm)
Refrigerant		R134a (CFC free)
Defrosting Mode		Automatic
Safety Device		Visible & Audible over temperaure, over humidity, water shortage alarm; leakage protector, spare temperature control
Electricity	Voltage/Frequency	AC 220/110V, 50/60Hz
Electricity	Consumption (W)	860	1700	2100	4000	5000	6000
N.W./G.W. (kg)		180/234	211/267	249/339	306/369	368/518	450/620
Shipping Size (WxDxH)(mm)		750x1860x840	1010x900x1880	880x980x2100	1010x1000x2250	1290x1070x2320	1290x1170x2600
Optional		Build-in printer, RS485 port, Φ25mm (50mm) test hole, spare shelf
