- Model : VSC-B5
- Viscometer Measurement Range : 0-99.99 mPa·s
- Viscosity Value Display Resolution : 0.01 mPa·s
- Instrument Measurement Accuracy : ±0.02 mPa·s
- Time Neasurement Range : 0-5000 s
- Time Measurement Precision : ≤ 0.01 s

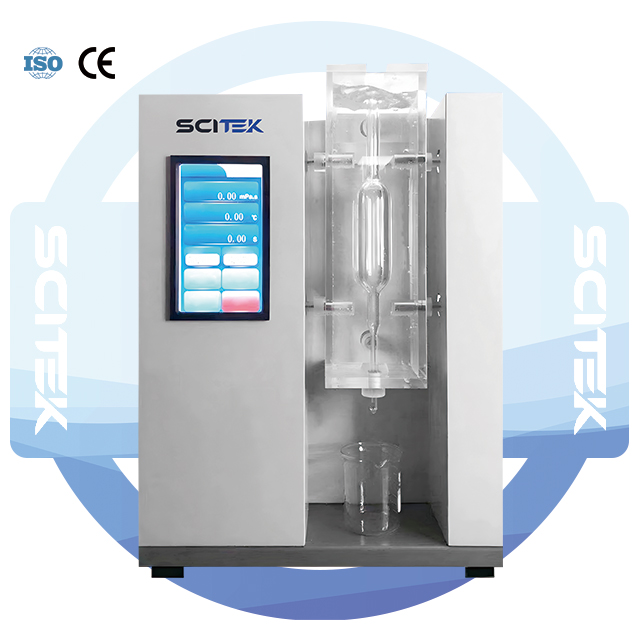

Burgers Viscometer
Burgers viscometer Advantage:
- Featuring a high-performance embedded intelligent touch screen, it ensures user-friendly operation and precise control. The intuitive human-machine interface allows users to effortlessly perform intelligent operations guided by on-screen instructions.
- Capable of measuring viscosity across samples of varying specific gravities and at different temperatures.
- Equipped with an interactive time calibration function for enhanced accuracy.
- Includes an interactive intelligent temperature compensation feature.
- Supports interactive calibration for viscosity tube parameters.
- Offers interactive selection of liquid transparency, expanding the range of measurable samples and enabling multi-field application of Burgess viscosity measurement.
- Supports dual-language operation (English and Chinese) with one-key switching.
- Provides historical data query function and printing options.
- Incorporates advanced automatic fault detection, self-diagnosis, and alarm functions for improved reliability and maintenance.
Rotational Viscometer Specification:
| Model | VSC-B5 |
|---|---|
| viscosity measurement range | 0-99.99 mPa·s |
| viscosity value display resolution | 0.01 mPa·s |
| instrument measurement accuracy | ±0.02 mPa·s |
| time measurement range | 0-5000 s |
| time measurement precision | ≤ 0.01 s |
| time display resolution | milliseconds |
| temperature control range of water bath | R.T. -70 ℃ |
| water bath temperature control setting resolution | 0.1 ℃ |
| temperature control accuracy of water bath | ±0.1 ℃ |
| water bath temperature display resolution | 0.01 ℃ |
| viscometer volume | 100 mL |
| volumetric error of the viscometer | ± 0.5 mL |
| longitudinal center moment of measuring device | 152 mm ± 0.5 mm |
| Power supply | 110/220 V, 50/60 HZ |
| Consumption | 500 W |
| Shipping Size | 465×370×610 mm |
| Gross Weight | 16 kg |
