- Model : BSC-IIB2-2F
- External Size(W×D×H) : 710x760x2050mm
- Airflow System : 100% air exhaust
- Work Surface Height : 750mm
- Front Window : Motorized, toughened glass

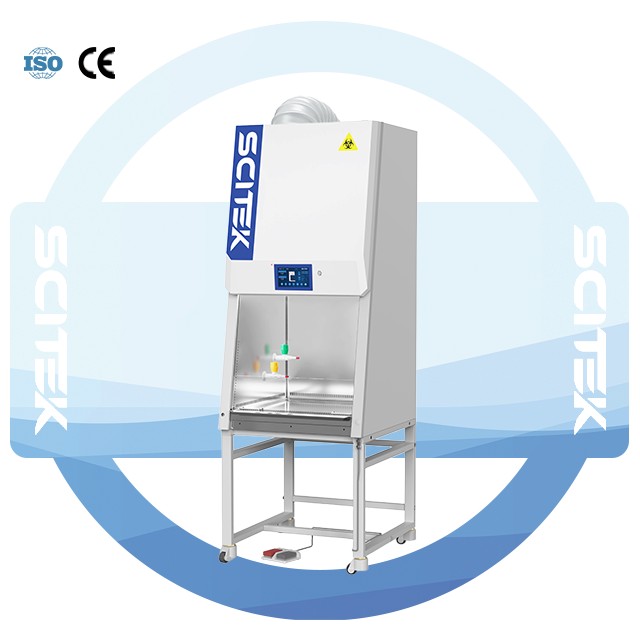

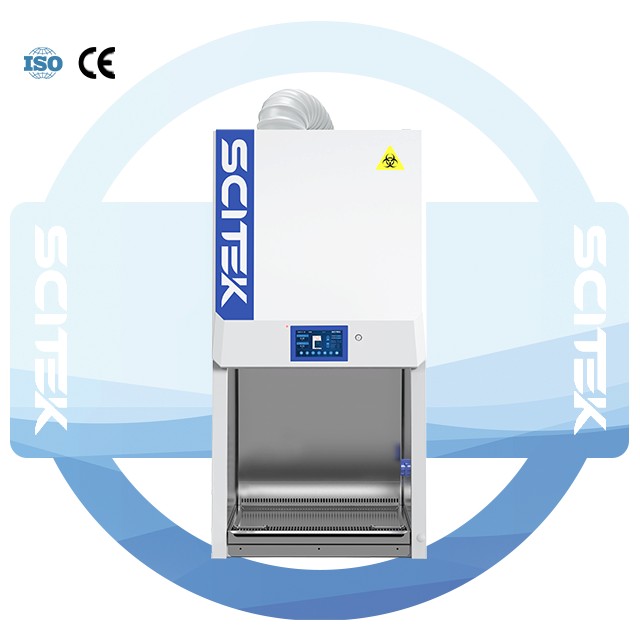

Biological Safety Cabinet Class II B2, 2FT
Warning: call_user_func_array() expects parameter 1 to be a valid callback, function 'wpb_pcf_contact_form_button' not found or invalid function name in /www/wwwroot/www.scitekuae.com/wp-includes/class-wp-hook.php on line 341
Class II B2 Biosafety Cabinet Features:
- UV sterilization and timer functions support scheduled operation.
- Motorized front window with dual protection: control and travel limits; 10° ergonomic tilt enhances comfort.
- Power failure memory function ensures data retention.
- Negative pressure surrounds work area to prevent leaks and enhance biosafety.
- Audio-visual alarms for airflow issues, filter or UV failures, and unsafe window height.
- Interlock system: UV lamp linked with front window, blower, and LED lamp for safety.
- Foot switch controls window height, reducing airflow disruption from hand movement.
- Optional upgrade: high-efficiency LED lamp.
Class II B2 Biological Safety Cabinet Specifications:
| Model | BSC-IIB2-2F | |
| Internal Size (W×D×H)(mm) | 610×550×600 | |
| External Size (W×D×H)(mm) | 710x760x2050 | |
| Max.Opening | 370mm | |
| Work Surface Height | 750mm | |
| Control System | Display | 7”LCD touch screen |
| Airflow System | Alarm | Abnormal airflow velocity, HEPA filter failure, UV lamp failure, Front window at unsafe height |
| Airflow Mode | 100% air exhaust | |
| Downflow Velocity | 0.35m/s±0.025m/s | |
| Inflow Velocity | 0.52 m/s±0.025m/s | |
| Inflow Air Volume | 240m³/h (141CFM) | |
| Downflow Air Volume | 560m³/h (330CFM) | |
| Exhaust Air Volume | 800m³/h (471CFM) | |
| Air filtration System | HEPA Filter | 2pcs H14 HEPA filter, ≥99.995% efficiency at 0.3μm |
| Cleanliness Grade | Class 100 (ISO14644.1 Class 5) | |
| Cabinet Construction | Main Body | Electro-galvanized steel with antimicrobial Powder Coating |
| Work Surface | 304 stainless steel | |
| Front Window | Motorized, toughened glass | |
| Electrical System | UV Lamp | 15W×1 (Emission of 253.7 nanometers for most efficient decontamination, UV life indicator, UV timer) |
| LED Lamp | 10W×2 | |
| Max.Consumption | 350W (Not include socket consumption) | |
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | |
| Illumination | ≥900Lux | |
| Sound Emission | ≤65dB(A) | |
| Vibration of Work Surface | ≤2μm | |
| Standard Accessory | 1. Base Stand | |
| 2. LCD Touch Screen; | ||
| 3. LED Lamp×2; | ||
| 4. UV Lamp×1; | ||
| 5. Explosion-Proof/Waterprof Socket×1; | ||
| 6. Motorized Front Window; | ||
| 7. Footmaster Caster; | ||
| 8. Foot Switch; | ||
| 9. Removable shallow-plate stainless steel work surface; | ||
| 10. Air Velocity Sensor; | ||
| 11. Exhaust Blower; 12.6m Exhaust Duct (Φ300mm). | ||
| Optional Accessory | 1. Gas tap; | |
| 2. Water tap; | ||
| 3. Pressure Sensor; | ||
| 4. IV Bar With Hooks; | ||
| 5. ULPA filter; | ||
| 6. Upgraded LED Lamp; | ||
| Net Weight | 65kg | |
| Gross Weight | 80kg | |
| Main Unit | 850×990×1640mm | |
| Exhaust Blower | 730×660×500mm | |
| Shipping Size (W×D×H)(mm) | 850×990×1640 | |
| Shipping Volume | 1.4 m³ | |
