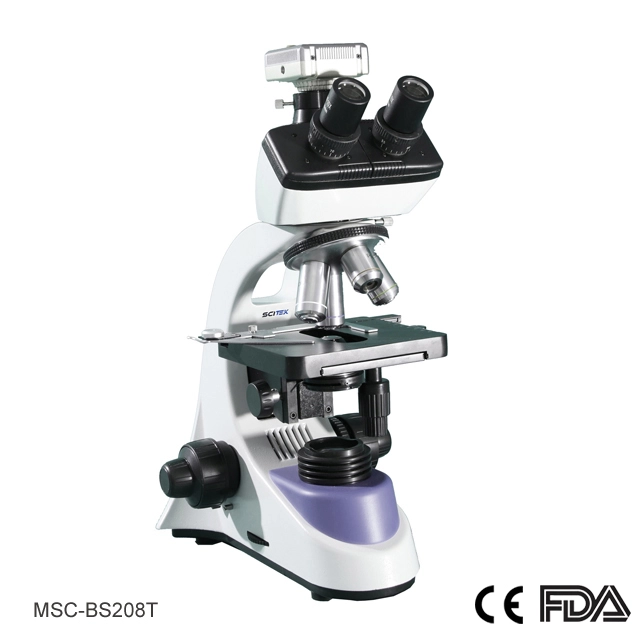

Biological Microscope, Trinocular Head

Model : MSC-BH208T; MSC-BS208T
Viewing Head : Siedentopf Trinocular Viewing Head at 30° IncIined Interpupillary (55-75mm) / Sliding Free
Trinocular Head lnclined at 45° Interpupillary (55-75mm)
Eyepiece : Wide Field Eyepiece WF10x18mm
Objective : Achromatic Objective 4x, 10x, 40x, 100x

Biological Microscope Feature:

A double-layer mechanical stage ensures precise sample handling and easy positioning.
The Abbe NA1.25 condenser with an iris diaphragm and filters provides optimal illumination and contrast.
The coaxial coarse and fine focus system offers precise control with a 0.002mm fine adjustment range for accurate focusing.

Biological Microscope Specification:

Model	MSC-BH208T	MSC-BS208T
Viewing Head	Siedentopf trinocular viewing head at 30° incIined interpupillary (55-75mm)	Sliding free trinocular head inclined at 45°
Viewing Head		interpupillary (55-75mm)
Eyepiece	Wide Field Eyepiece WF10x18mm
Nosepiece	Quadruple Nosepiece
Objective	Achromatic Objective 4X, 10X, 40X, 100X
Stage	Double Layers Mechanical Stage 140x135mm/ 75x50mm
Condense	Abbe NA1.2５ with Iris Diaphragm & Filter
Focusing System	Coaxial coarse and fine adjustment, fine division 0.002mm, coarse stroke 37.7mm per rotation, fine stroke 0.2mm per rotation, moving range 28mm	Coaxial coarse and fine adjustment, fine division 0.002mm, coarse stroke 37.7mm per rotation, fine stroke 0.2mm per rotation, moving range 24mm
Illumination	S-LED Illumination, Brightness Adjustable	3W LED Illumination, Brightness Adjustable
	Halogen Lamp 100V-240V/ 6V20W
	Plan-concave Mirror
Filter	Blue Filter
Package	Carton
Shipping Size	360x260x470
(W×D×H)(mm)	360x260x470
G.W. (kg)	7
