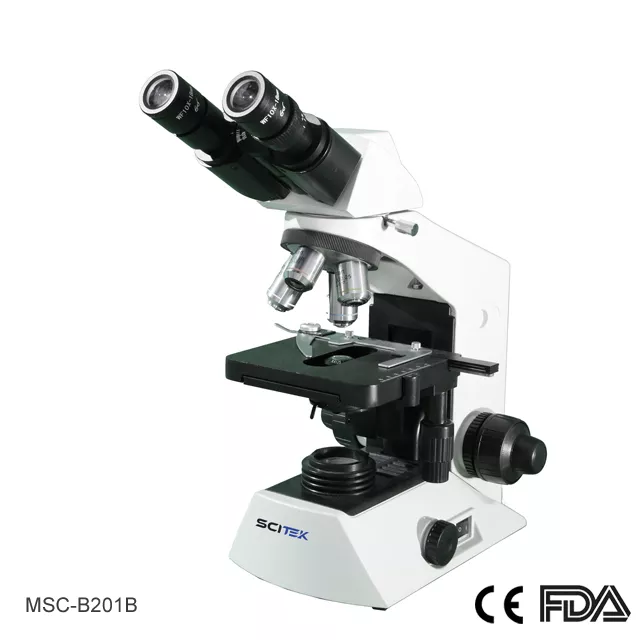

Biological Microscope, Compensation Free Binocular Head

Model : MSC-B201B
Viewing Head : Compensation free binocular head inclined at 30°IncIined Interpupillary (55-75mm)
Eyepiece : Wide Field Eyepiece WF10X18mm, xWF16×; xWF20×x;
Objective : Achromatic Objective 4x, 10x, 40x, 100x

Biological Microscope Feature:

The microscope features an ergonomic design for a comfortable and clear viewing experience.
Its well-structured mechanical design suits medical institutions, enterprises, and university research labs.
A high-power 3W LED cold light source ensures bright, sharp images across all magnifications.
Linear continuous brightness adjustment provides stable illumination while being energy-efficient and eco-friendly.

Biological Microscope Specification:

Model	MSC-B201B
Viewing Head	Compensation free binocular head inclined at 30°IncIined Interpupillary (55-75mm)
Eyepiece	Wide Field Eyepiece WF10X18mm, xWF16×; xWF20×x;
Nosepiece	Quadruple Nosepiece
Objective	Achromatic Objective 4X, 10X, 40X, 100X
Stage	Double Layers Mechanical Stage 140x135mm/ 75x50mm
Condense	Abbe NA1.2５ with Iris Diaphragm & Filter
Focusing System	Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 28mm
Illumination	3W LED Illumination, Brightness Adjustable
	Halogen Lamp 100V-240V/6V20W
	Plan-concave Mirror
Package	Carton
Filter	White Filter
Shipping Size(W×D×H)(mm)	370x260x460
G.W. (kg)	8
