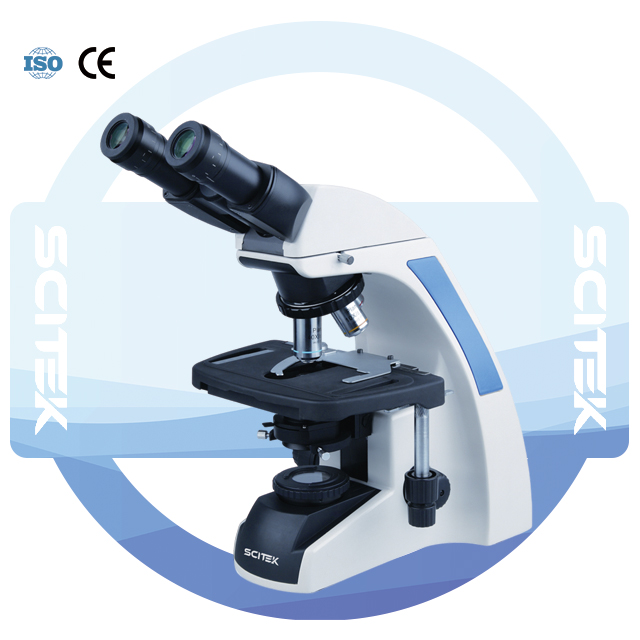

Biological Microscope

The biological microscope adopts a new structural design with a smoother appearance and stable performance.

Model : MSC-B203B
Optical System : Infinite Optical System
Viewing Head : Siedentopf Binocular Head, Inclined at 30°, Interpupillary 50-75mm
Shipping Size(W×D×H)(mm) : 590x350x360

Share the product

The MSC-B203B biological microscope is a cutting-edge instrument designed for advanced microscopy applications, featuring infinite optics for superior image quality. Its Siedentopf binocular lenses offer a comfortable fit and provide a wide, detailed field of view, ensuring ergonomic observation even during extended use.

Biological Microscope Feature:

Features infinite plan achromatic and fluorescent semi-achromatic objectives.
Quadruple (quintuple) nosepiece allows quick and precise objective changes.
Dual mechanical stage (210×150 mm/75×50 mm) for ample space and precise sample positioning.
Coaxial coarse and fine adjustment system with a 0.002 mm fine index for accurate focusing.

Biological Microscope Specification:

Model	MSC-B203B
Optical System	Infinite Optical System
Viewing Head	Siedentopf Binocular Head, Inclined at 30°, Interpupillary 50-75mm
Eyepiece	WF10×22mm Wide Field Eyepiece WF10×22mm;
Objective	Infinite Plan Achromatic Objective: 4×, 10×, x20×, 40×, 100×
	xFlour Semi-apo Abjective: 4×, 10×, x20×, 40×, 100×
	xInfinite Plan Phase Objective: Ph10x, 20x, 40x, 100x
Nosepiece	Quadruple Nosepiece/xQuintuple Nosepiece
Stage	Double Layers Mechanical Stage 210x150mm/ 75x50mm
Condense	Abbe Condenser NA1.25 with Iris Diaphragm & Filter
Focusing System	Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range 24mm
Illumination	LED Illumination, Brightness Adjustable
xOptional	Phase Contrast Kit; Dark Field Attachment; Fluorescent Attachment
xOptional Configuration
Shipping Size (W×D×H)(mm)	590x350x360
G.W. (kg)	9
