- Model : VO-25D; VO-55D; VO-90D
- Capacity : 24L / 52L / 91L
- Heating Mode : Four sides heating
- Temperature Range: RT+10~250℃
- Timer : 0~9999min (With timing wait function)

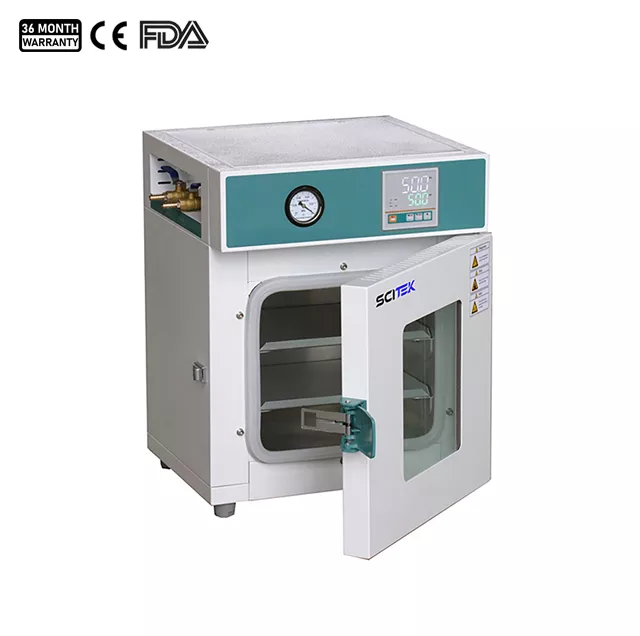

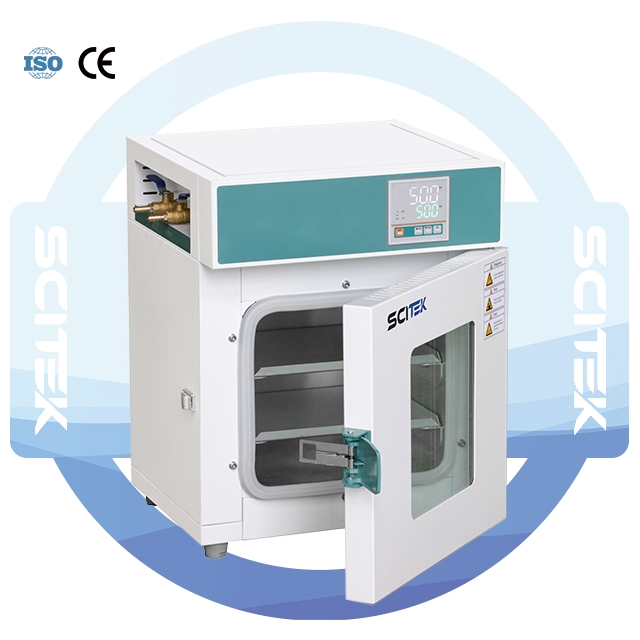

Vertical Vacuum Oven (With Digital Display)
Warning: call_user_func_array() expects parameter 1 to be a valid callback, function 'wpb_pcf_contact_form_button' not found or invalid function name in /www/wwwroot/www.scitekuae.com/wp-includes/class-wp-hook.php on line 341
Vertical Vacuum Oven Feature:
- PID control with PT100 sensor, LCD controller, displays 3 data groups on one screen.
- Double glass window: explosion-proof glass inside, resin plate outside for enhanced safety.
- Inflatable port with durable silicone sealant for excellent airtightness.
- LCD vacuum gauge with five pressure unit options: Mpa, Kpa, bar, Psi, KGF/cm².
Vertical Vacuum Oven Specifications:
| Model | VO-25D | VO-55D | VO-90D | |
| Capacity (L) | 24 | 52 | 91 | |
| Heating Mode | Four sides heating | |||
| Size(WxDxH) | Internal (mm) | 300x300x270 | 415x370x340 | 450x450x450 |
| External (mm) | 480x480x606 | 560x540x680 | 640x590x780 | |
| Temperature | Range (℃) | RT+10~250 | ||
| Fluctuation (℃) | ±1 | |||
| Resolution (℃) | 0.1 | |||
| Sensor | PT100 | |||
| Controller | PID | |||
| Vacuum Degree Range | <133Pa | |||
| Vacuum Nozzle Diameter(mm) | Φ10 | |||
| Display | High efinition LCD | |||
| Timer | 0~9999min (With timing wait function) | |||
| Material | Internal | High-quality hairline stainless steel | ||
| External | Cold rolled steel electrostatic spraying exterior | |||
| Shelves(Standard) | 2 | |||
| Safety Device | Over temperaure visible & audible alarm | |||
| Electricity | Voltage/Frequency | AC 220/110V, 50/60Hz | ||
| Consumption (W) | 800 | 1400 | 2000 | |
| N.W./G.W. (kg) | 42/52 | 67/92 | 82/105 | |
| Shipping Size (WxDxH)(mm) | 590x550x750 | 704x620x814 | 739x700x889 | |
| Optional | Vacuum pump filter, silica gel connecting pipe, vacuum pump | |||
