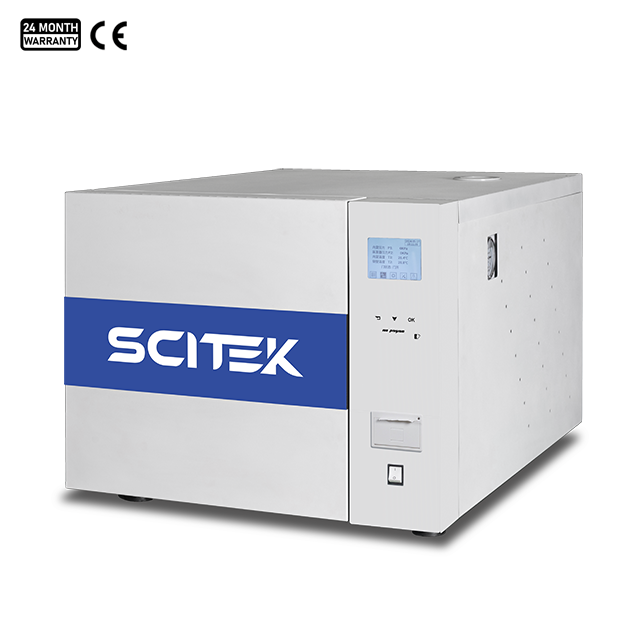

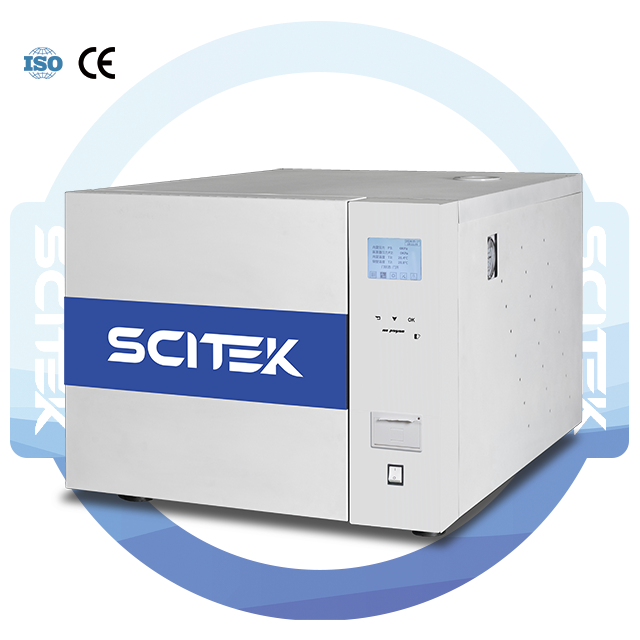

Benchtop Class B Autoclave Feature:

Overheat protection: Stops heating with alarms when overheated.
Interlock safety: Prevents cycle start if door isn’t locked or chamber is pressurized.
Anti-burning protection: Stops heating with alarms if water is low.
Steam pressure valve: Activates if chamber pressure exceeds limits.
Automatic operation: Pre-vacuum, heating, sterilization, steam discharge, and drying controlled via LCD touchscreen.
Built-in vacuum pump: 3-time pulsed vacuum removes air from medical items efficiently.

Benchtop Class B Autoclave Specification:

Model	ST-B45B
Capacity	45L
External Size(WxDxH)	870x600x520mm
Chamber Size(ØxH)	Ø316x590mm
Chamber Material	SUS304
Sterilization Temperature	105~136 ℃
Designed Temperature	150℃
Max.Working Temperature	136 ℃
Temp.Accuracy	0.1℃
Temp.Uniformity	≤±0.5℃
Designed Pressure	-0.1/0.3Mpa
Sterilization Pressure	0.23Mpa
Pressure Resoluiton	0.1KPa
Ultimate Vacuum	-0.096MPa
Temp. Controller	PID control by microprocessor
Display	LCD touch screen
Drying Function	YES
Drying Time	15min
Sterilization Program	●Medical instrument program
	●Luminal instruments
	●Dressings program
	●Rubber program
	●Liquid program
	●BD Test program
	●Vacuum Test progrm
	Sterilization of medical dressing, medical Instruments, Instruments with cavity,
	Rubber, liquids plus 4 user-customized programs BD Test and vacuum test.
Water Injection Method	Built-in water tank
Power Consumption	3.6KW
Power Supply	220V 50Hz
Standard Sterilization Shelf	1pcs SS shelf
Optional Accessories	Printer
Net Weight	65kg
Gross Weight	120kg
Shipping Size(WxDxH)	1150x700x700mm
