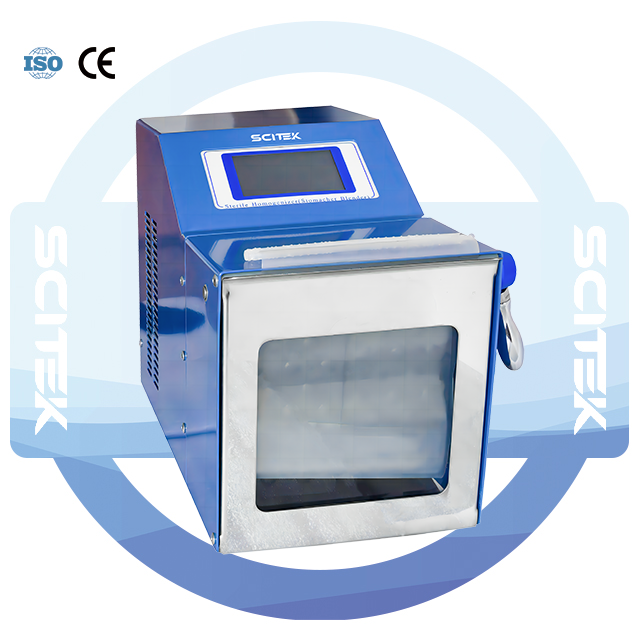

Beating Type Aseptic Homogenizer

The beating type aseptic homogenizer enables powerful, quiet homogenisation in sample preparation.

Model : HMG-BHS11; HMG-BS09; HMG-BG08
Control Mode : Microcomputer control
Parameter Storage : 8-segment combination programming
Slap Speed : 3-12 times/s
External Size (WxDxH)(mm) : 460×250×330; 460×250×330; 460×250×330

Share the product

Beating type aseptic homogenizer is widely used in homogenization treatment of animal tissues and biological samples. It can be used in food, drug, cosmetics, clinical, molecular, toxin and bacterial detection fields, especially for the preparation of microbial test samples.

Beating Type Aseptic Homogenizer Features:

The aseptic homogenizer can effectively separate the surface of solid sample and the microorganisms contained in it.
The sample is packed in a disposable sterile homogenization bag without contacting with the instrument.
It has the characteristics of soft homogenization, no pollution, no damage, no temperature rise, no sterilization and no washing of utensils.
The aseptic homogenizer meets the requirements of fast, accurate results and good repeatability.
Beating type aseptic homogenizer is also suitable for homogenization of tumor tissues (such as liver cancer, colorectal cancer, gastric cancer and breast cancer). It can not only obtain a large number of single cells (up to 2 * 105 in 2 minutes). If necessary, homogenizer can extend the homogenization time and accelerate the homogenization speed, so as to achieve soft fragmentation of tissue cells (such as liver, etc.).

Beating Type Aseptic Homogenizer Specification:

Model No	HMG-BHS11 （Heating sterilization type）	HMG-BS09 （Sterile type）	HMG-BG08 （Standard type）
Control Mode	Microcomputer control
Parameter Storage	8-segment combination programming
Display Mode	4.3 inch touch screen display
Slap Time	1s-99h59m59S or continuous operation
Clapper Material	Stainless steel with special extrusion protective cover
Slap Speed	3-12 times / s
Heating Function	Yes	–	–
Temperature Range	Room temperature – 80 ℃	–	–
Disinfection Function	Yes,the disinfection wavelength is 253.7nm		–
Effective Volume	3～400ml
Aseptic Bag Size	17*30cm
Tank Body	Stainless steel with anticorrosive plastic spraying
Slap Spacing	0～50mm
Startup Mode	slow-start
Pause Function	Yes
Anti Pinch Function	With automatic stop anti pinch function
Other Function	Removable window with terpering glass
Voice Prompt Function	Yes
Power Supply	220V/50Hz	220V/50Hz	220V/50Hz
Consumption	500W	220W	200W
External Size (WxDxH)(mm)	460×250×330	460×250×330	460×250×330
Shipping Size (WxDxH)(mm)	540×310×410	540×310×410	540×310×410
Weight G W/N.W (KG)	23/19	22.5/18.5	22/18

Details of Beating Type Aseptic Homogenizer (HMG-BS09):

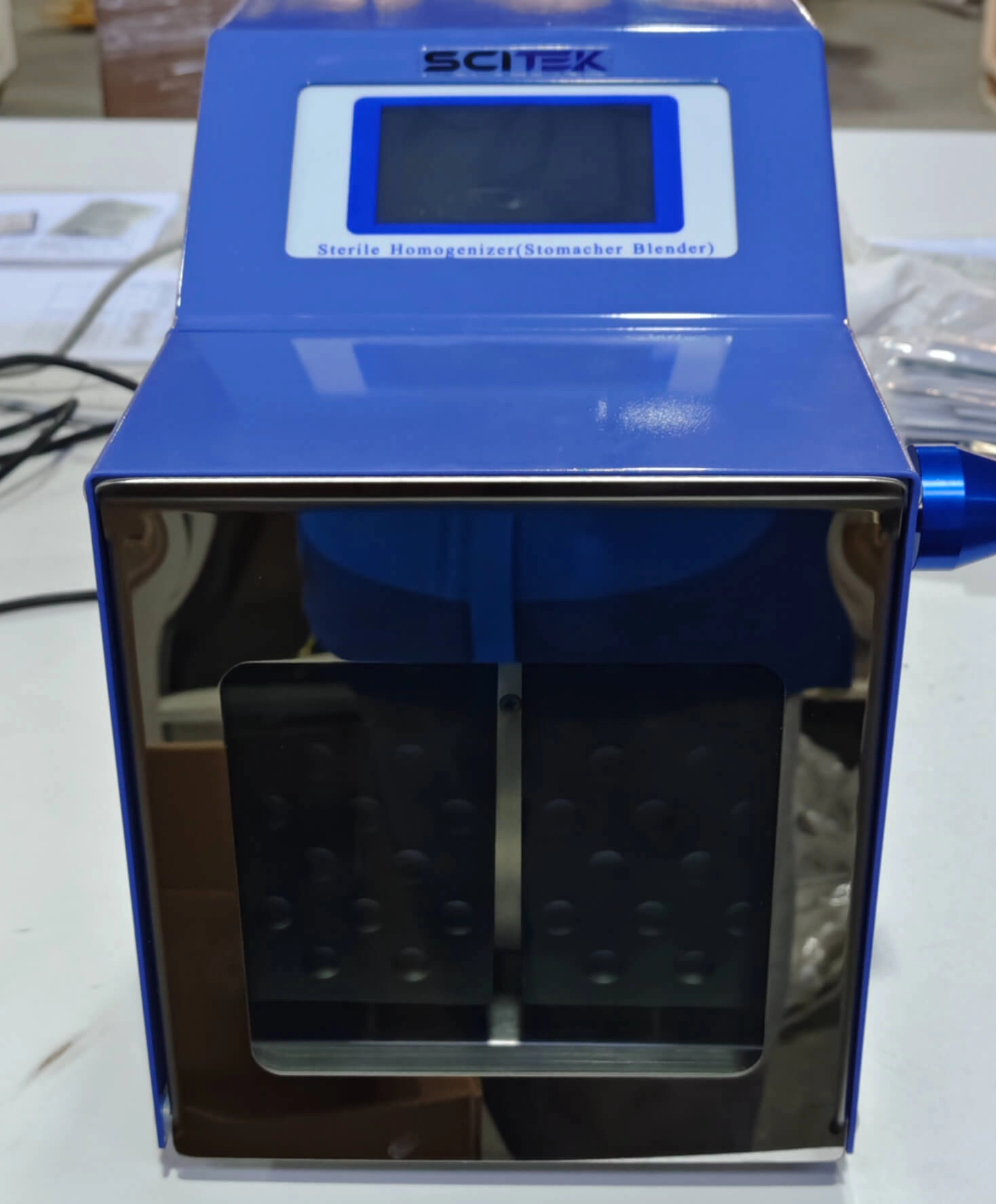

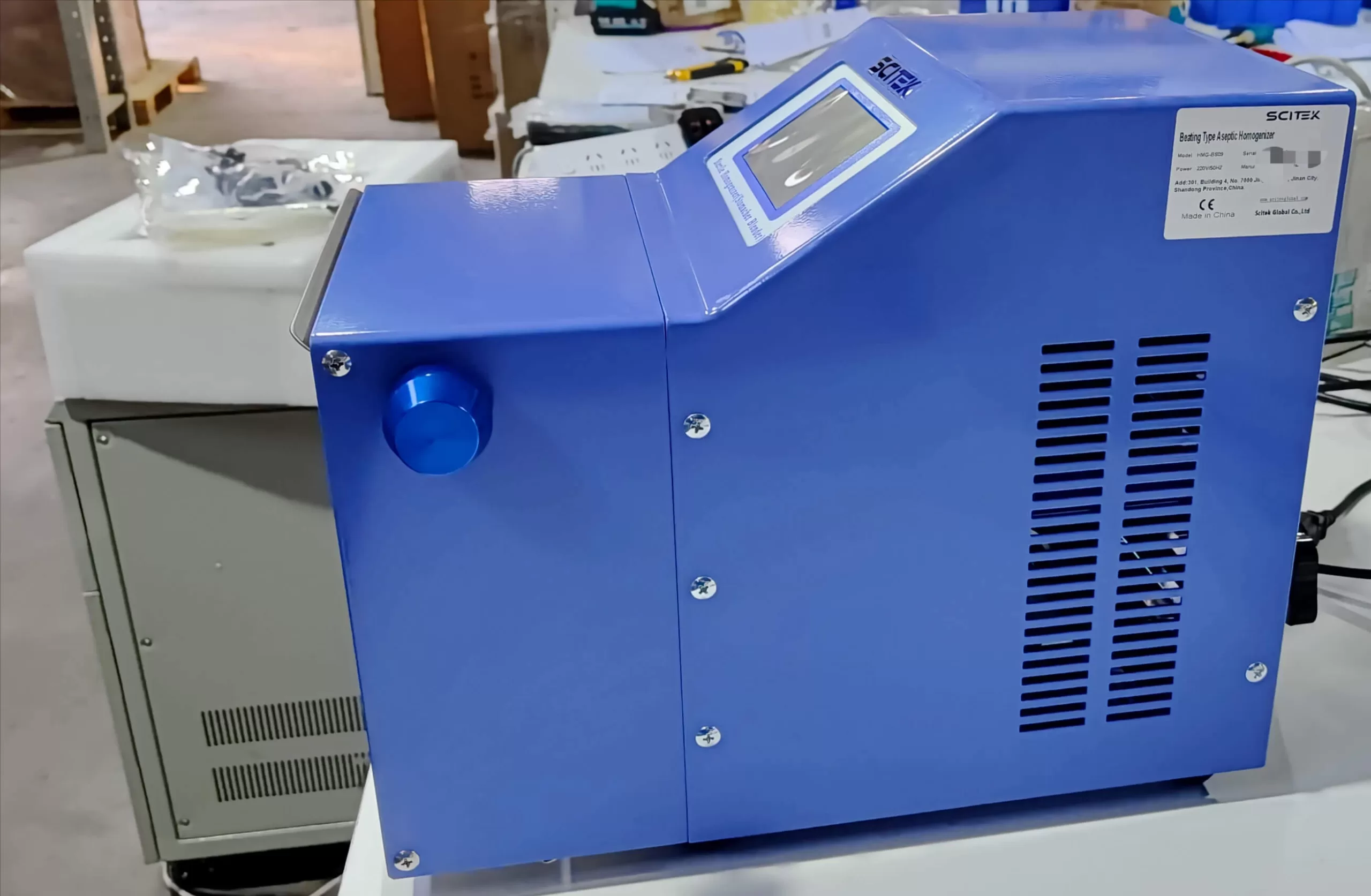

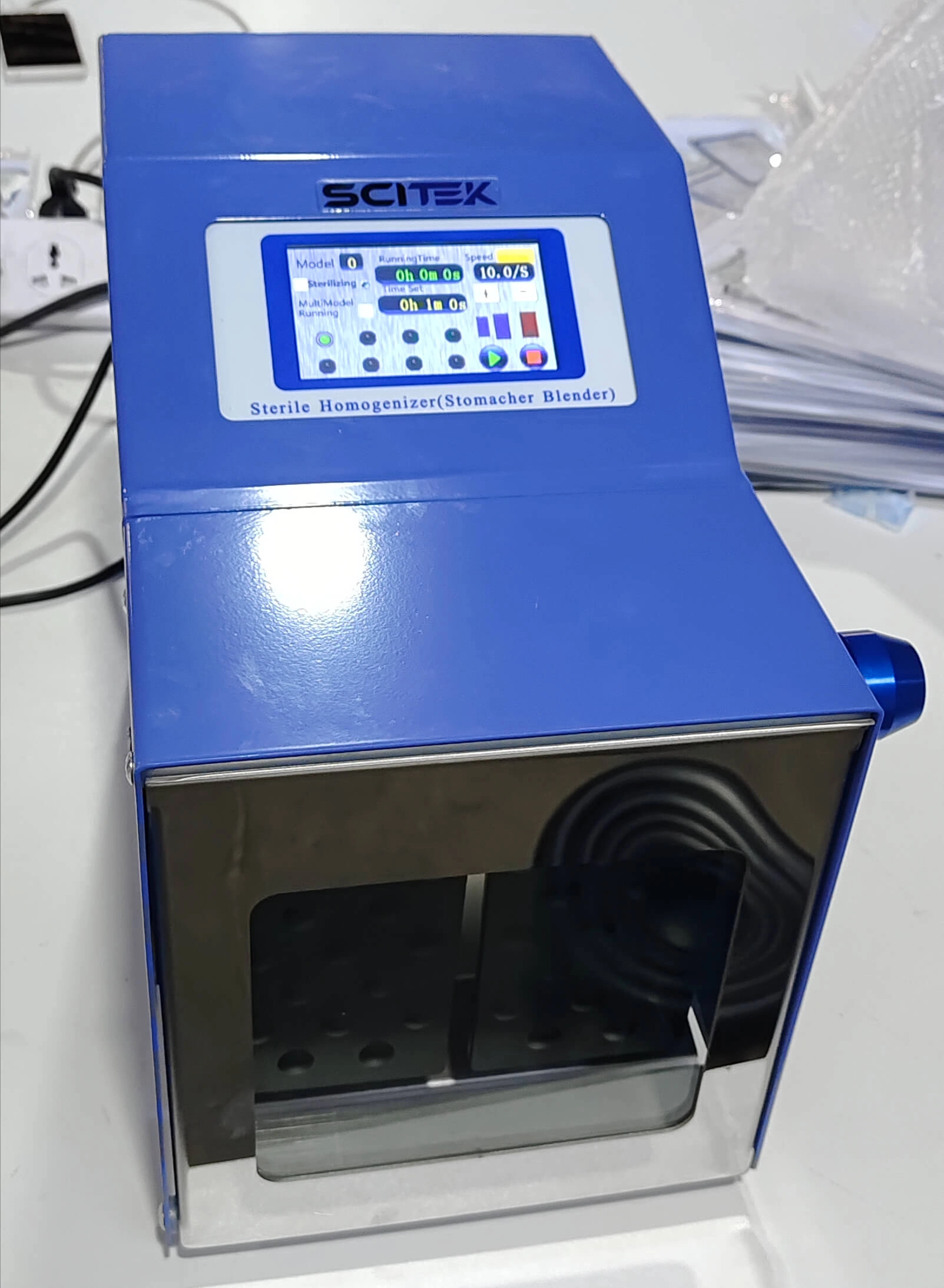

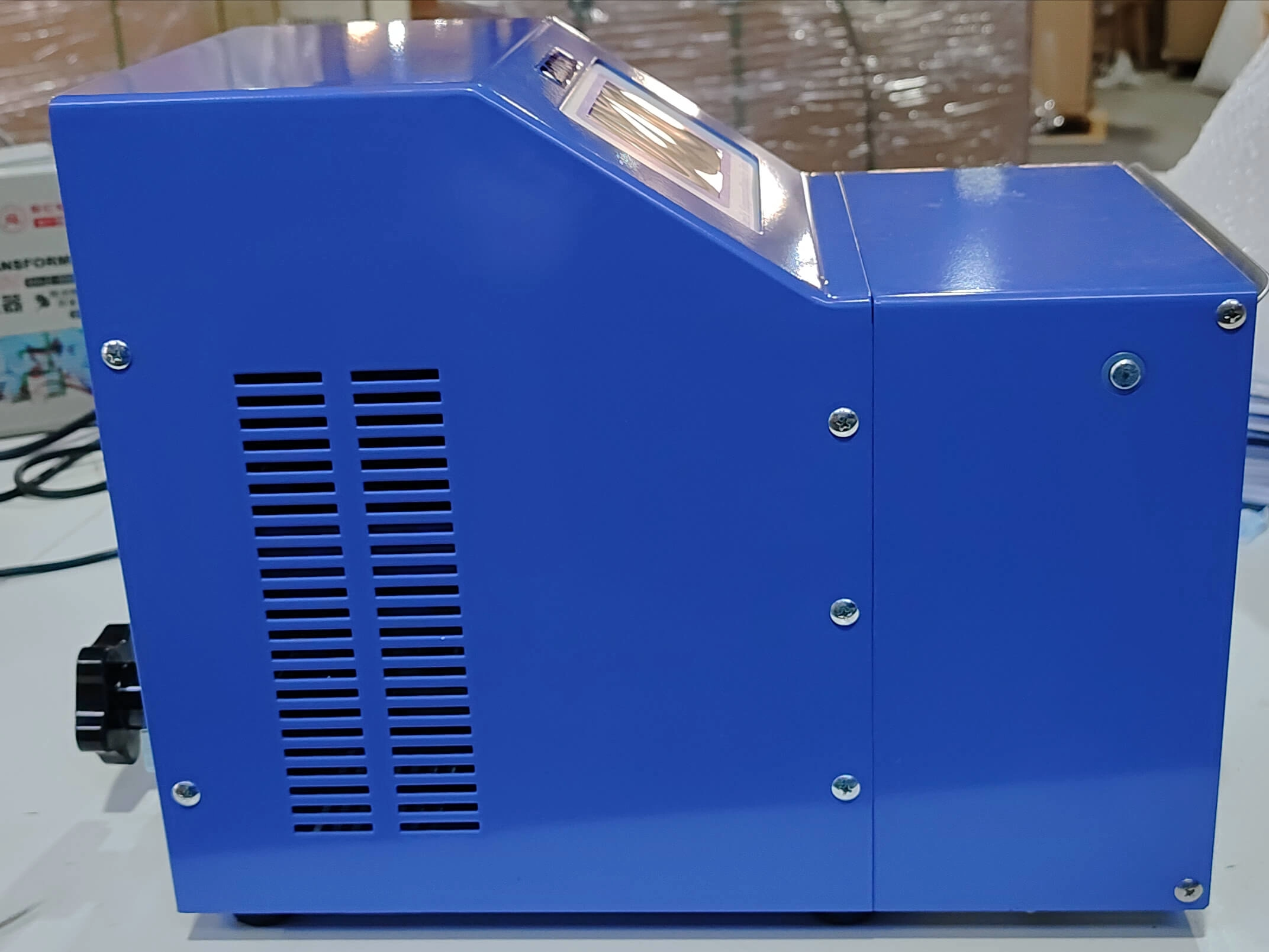

The beating type aseptic homogenizer features a stainless steel body with a transparent door, allowing users to monitor the homogenization process. The sterile, sealed homogenization chamber accommodates various sample bags, preventing cross-contamination.
