Automatical Dissolution Tester

Dissolution Tester Features:

The dissolution tester determines the speed and extent of drug dissolution in tablets, capsules and other solid preparations in a defined solvent.

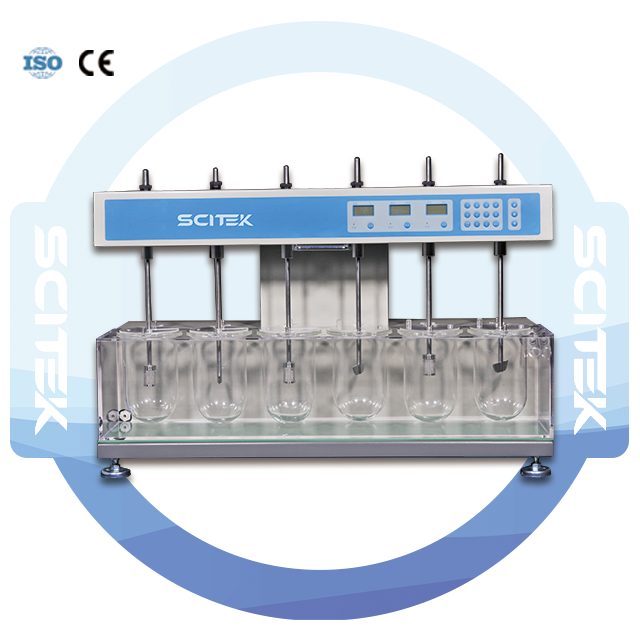

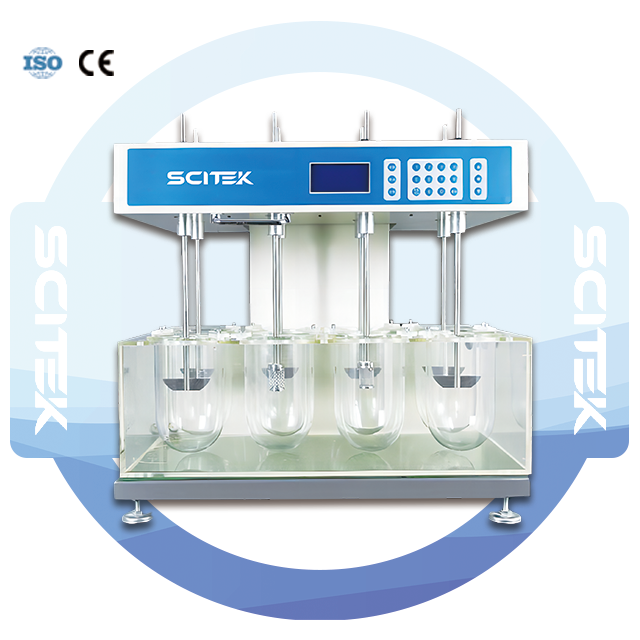

DT-STVI and DT-STVIII dissolution testers adopt a high-resolution touch screen and a real-time display of running time, speed, waiting times, etc.
Intelligent temperature correction function eliminates measurement errors and ensures the user can reliably complete the temperature correction through interactive operation.
Provides timer shutdown, timer automatic preheating function, but also has a self-test and automatic protection function, which can give a variety of fault alarm prompts and secondary overheating protection.
No gap design between dissolving cup and water tank to ensure automatic centring and positioning, eliminating systematic errors.
Dissolving cover prevents evaporation of dissolving medium.
Motorized lifting of the head section, stable and flexible operation.

Dissolution Tester Specifications:

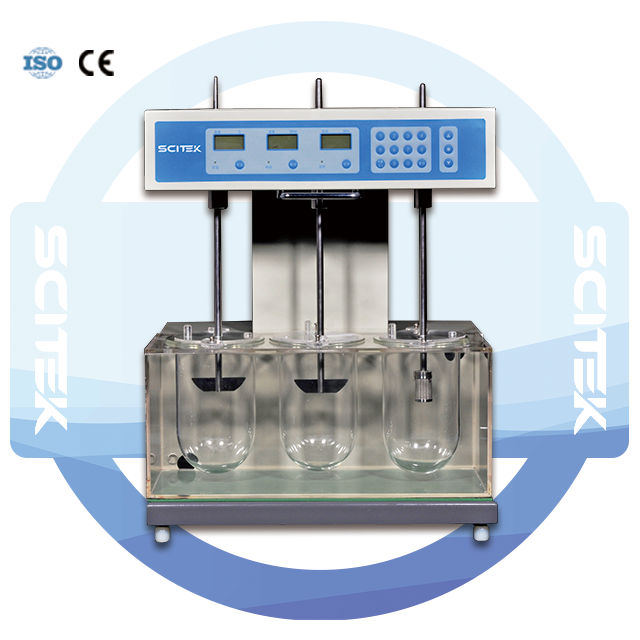

Model	DT-XII	DT-STIII	DT-STVI	DT-STVIII
Amplitude of Swing of Stirring Paddle	≤0.3mm
Amplitude of Swing of Rotation Basket	≤0.8mm
Deviation of Rotating Rod and Axle of Dissolution Cup	≤1mm
Speed Adjustable Range	20-200 rpm			20-250 rpm
Rotating Speed Resolution	1 time/min
Water Bath Temperature Adjustment Range	RT~45ºC
Temperature Resolution	0.1ºC
Temperature Control Accuracy	≤±0.3ºC
Number of Sampling Periods	9 different sampling periods can be preset.
Time of Sampling Period	1-999min optional for each period, 9 sampling periods can be counted down by sections.
Timing Error	±0.5min
Pharmacopoeia Parameter Calling	The instrument saves 300 dissolution test parameters in Chinese Pharmacopoeia, which can be called randomly.
Standard Configuration	12 paddles and 12cups	3 paddles and 3 cups	6 paddles and 6 cups	8 paddles and 8 cups (Small cup accessories can be optional.)
Electrical Heating Power	1100W	500W	1100W	1100W
Note	Large screen liquid crystal display and intelligent menu operation. The head can lift and descend automatically and attaches overturn function (a model whose control is very convenient). Electronic sensor can monitor the temperatures of various point of water bath case.
Shipping Size (W×D×H)(mm)	1130×730×650	730×490×630	1130×530×650	850×640×670
G.W. (kg)	130	60	85	90
