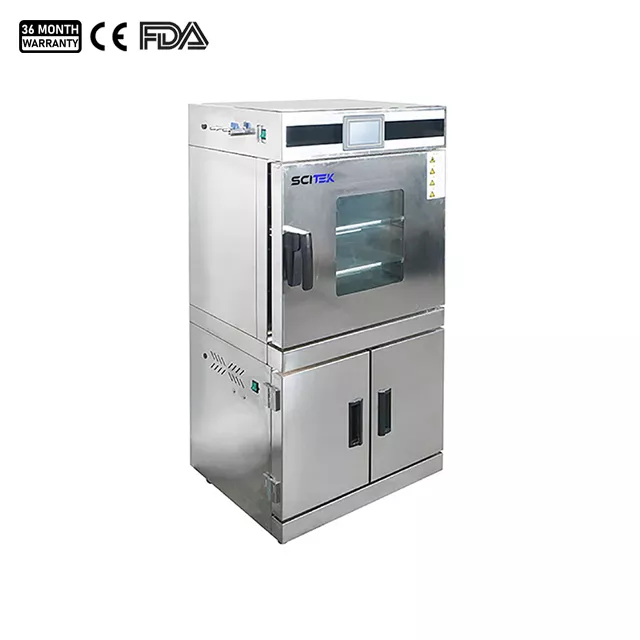

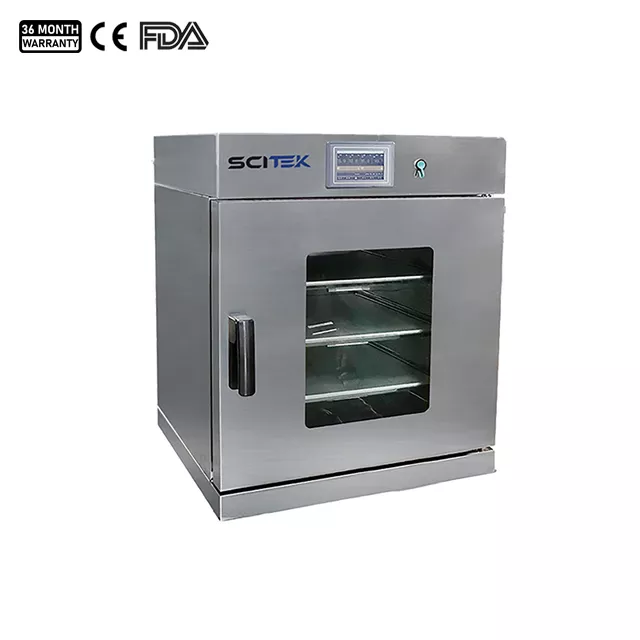

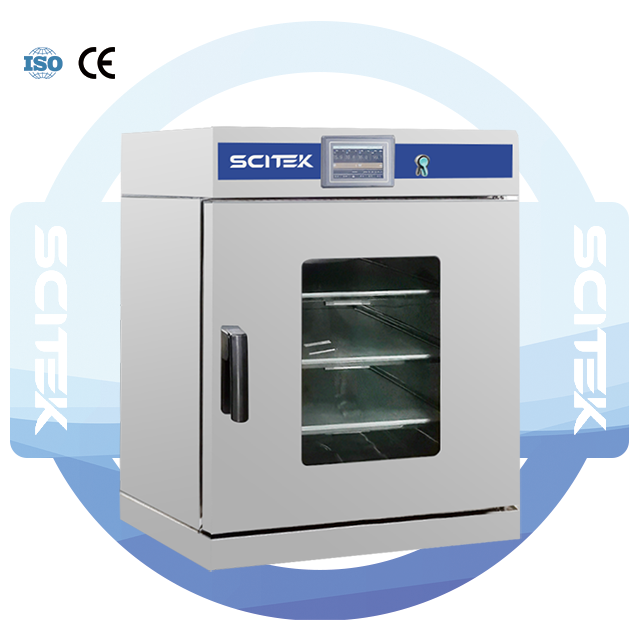

Automatic Vertical Vacuum Oven (Precision Model)
Automatic Vertical Vacuum Oven (Precision Model) - Image 2

Automatic Vertical Vacuum Oven (Precision Model)

  • Model : VO-55P; VO-55PI; VO-90P; VO-90PI
  • Capacity : 52L / 52L / 91L / 91L
  • Heating Mode : Shelf direct heating
  • Temperature Range: RT+10~250℃
  • Timer : 0~9999min

Share the product

Category:

Automatic Vertical Vacuum Oven Feature:

  1. 7-inch touch screen PID controller for precise temperature control.
  2. Real-time temperature curve for monitoring the heating process.
  3. Program mode supports multi-stage temperature and vacuum settings.
  4. Automatic vacuum control maintains the set vacuum level.
  5. Integrated vacuum pump and air filter system (VO-55PI, VO-90PI).

Automatic Vertical Vacuum Oven Specifications:

Model VO-55P VO-55PI VO-90P VO-90PI
Capacity (L) 52 91
Heating Mode Shelf direct heating
Size(WxDxH) Internal (mm) 415x370x340 415x370x341 450x450x450 450x450x451
External (mm) 635x565x796 635x565x1296 670x645x906 670x645x1406
Temperature Range (℃) RT+10~250
Fluctuation (℃) ±1
Resolution (℃) 0.1
Sensor PT100
Controller Multi-stage PID
Vacuum Degree Range <133Pa
Vacuum Nozzle Diameter (mm) Φ10
Display 7.0 inches LCD color touch screen
Timer 0~9999min / 0~9999h, convertible
Material Internal SUS304 mirror stainless steel
External SUS304 embossed stainless steel
Shelves (Standard) 2
Safety Device Over temperaure visible & audible alarm,sensor fault alarm, vacuum overvalue alarm
Electricity Voltage/Frequency AC 220/110V, 50/60Hz
Consumption (W) 1200 1600 1600 2000
N.W./G.W. (kg) 67/92 87/112 82/105 102/125
Shipping Size (WxDxH) (mm) 804x705x957 804x705x1457 840x785x1062 840x785x1562
Optional Spare shelf (independent temperature control), RS485 transfer to USB communication interface, Printer, Control module of WiFi

WHY SCITEK

  1. 36 Months Limited Warranty
  2. CE & FDA Standards
  3. 1-2 Days Handling and 7-30 Days Shipping
