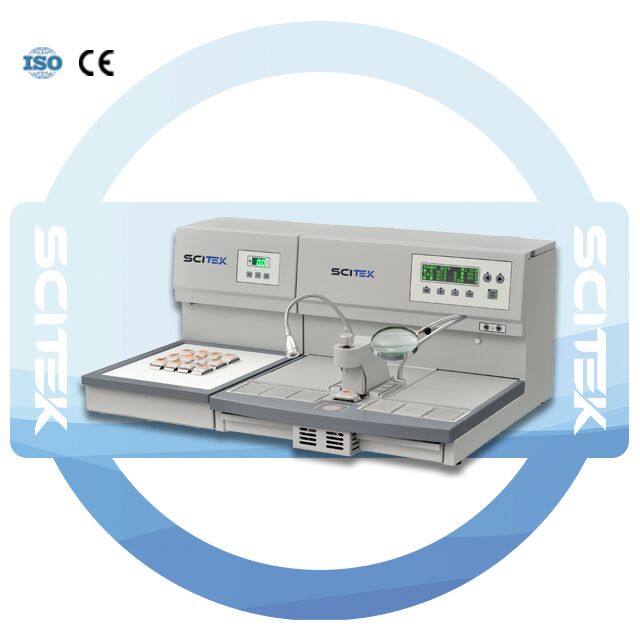

Automatic Tissue Embedding Center & Cooling System, TE-IV&CS-IV

This automatic tissue embedding center & cooling system features large capacity. And its precise temperature control technology ensures the consistent and reliable progression of tissue embedding procedures.

Model: TE-IV&CS-IV
Paraffin Chamber Capacity: 6 L
Temperature Range (Forceps Holder, Left & Right Thermal Chamber, Paraffin Chamber & Distributor, Working Table): RT-85 ℃
Temperature Range (Cold Plate): +5 to -20 ℃ (Ultra-refrigeration mode: Lowest -28℃)
Working Area Sizes (Working Table): 540×93 mm
Working Area Sizes (Cold Plate): 315×380 mm
Small Cooling Plate: YES

Share the product

Advantage:

Imported OLED module display screen, energy-saving, clear handwriting, clear vision at any angle without blind spots.
Fully computerized automatic program control, can be preset to start and shut down at any time every week.
Adopt flexible heating mechanism and PID technology to achieve rapid heating and precise temperature control.
The seven working areas are controlled individually and work independently without interfering with each other.
With memory and automatic recovery function, the preset temperature is automatically retained after operation.
The lighting adopts a universal metal hose design, which can adjust the lighting angle and brightness at will, and is convenient for observing specimens.
The imported valve adjusts the flow of the paraffin nozzle, which is suitable for various tissue embedding processes, and it has the automatic soft-touch and foot-operated switch dual-control paraffin flow design.
Double overheat protection device, safe and reliable.
Two modes of operation, manual mode with instant start and stop, automatic mode with power-off memory and power-on self-start function.

Speciﬁcation:

Model		TE-IV&CS-IV
Paraffin Chamber Capacity		6 L
Temperature Range	Forceps Holder	RT – 85°C
	Paraffin Chamber
	Left Thermal Chamber
	Right Thermal Chamber
	Working Table
	Paraffin Distributor
	Cold Plate (Temperature control mode)	+5 to -20 ℃
	Cold Plate （Ultra-refrigeration mode）	Lowest -28℃
	Small Cooling Plate	＜- 5 ℃
Temperature Control Precision		± 1℃
Paraffin Flow Control		Automatic soft-touch switch, foot-operated switch
Fully Programmable ON/OFF Control		Allows automatic system start and stop anytime weekly
Safety Protection		Double overheat protection device
Automatic Memory Recovery Function		Yes
Working Area Size	Thermal Chamber	240×160×55 mm
	Working Table	540×93 mm
	Small Cooling Plate	60×50 mm
	Cold Plate	315×380 mm
Power Supply		AC 220 V ± 10%, 50 Hz (standard model); AC 110 V ± 10%, 60 Hz
Power		1000 W (TE-IV)
Power		300 W (CS-IV)
Dimensions Size (W×D×H)		680×580×400 mm (TE-IV)
Dimensions Size (W×D×H)		710×350×400 mm (CS-IV)
Shipping Size (W×D×H)		780×700×500 mm (TE-IV)
Shipping Size (W×D×H)		790×480×560 mm (CS-IV)
N.W./G.W.		38/60 kg (TE-IV)
N.W./G.W.		30/39 kg (CS-IV)
