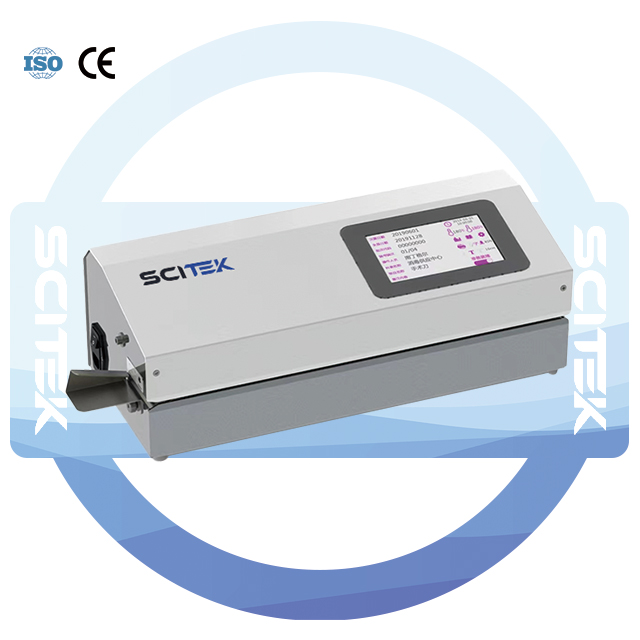

Automatic Sealing Machine, Touch Screen

Automatic Sealing Machine Features:

• LCD color touch screen, graphical operation interface, English display and print switching, keyboard input control, built-in clock and parameters that can be set, and automatic storage function.
• Positive sequence (descending sequence) sealing counter; it can count the number of seals within 0–9999; it has special functions such as printing margin and printing interval symbol.
• Rapid heating and auxiliary cooling design: it is equipped with a microcomputer-controlled heating and cooling mechanism to reduce the waiting time when the sealing temperature changes quickly from low to high or high to low.
• Computer intelligent temperature control design; working temperature: 60–220℃ arbitrarily set; temperature control accuracy is less than ±1%; preset four common temperatures: 60℃, 120℃, 180℃, 220℃; it can switch quickly according to users’ daily needs, facilitating users to select the sealing temperature rapidly.
• When the sealing temperature exceeds the working temperature setting range by ±4℃, the machine will stop working automatically, effectively ensuring sealing quality and safe operation of the equipment.
• Floating constant pressure pressing structure design is adopted to meet the sealing needs of three-dimensional bags and paper bags of different thicknesses.
• Automatic fault alarm indication can realize automatic detection during the working process, and various faults can trigger automatic alarm or prompt.
• Standby time and standby temperature are adjustable; the intelligent standby recovery function can make the machine return to the working temperature at high speed, reducing waiting time.
• Advanced flat-plate ceramic heating components have the characteristics of fast temperature rise, uniform heating, high temperature resistance, long service life and high thermal efficiency.
• The sealing machine has its own operation identification function, which can print test time, sealing temperature, pressure, speed, sealing time, equipment number, etc. in Chinese and English.
• Optional stainless steel special sealing machine workstation with paper cutter, roller conveying platform and other peripheral configurations.

Functions of printing system:

It has an English dual operating system, which can be switched freely. In the English operating state, English and symbols can be printed.

It can print English, numbers, special characters, sterilization date, expiration date, sterilization batch, sterilizer number, operator code, etc.

The sterilization date and expiration date can be adjusted as required.

The built-in sealing machine is equipped with a Chinese and English printing system and a built-in 24-pin printer. The printing is clear, and the setting of printing items is simple and quick. The width of the printed font is adjustable, which is convenient for printing more content on relatively narrow bags. The printing function can be closed for an item as needed by pressing the Close key.

The system will provide the printing width value based on the selected printing content, automatically calculate the minimum printing bandwidth, help the operator determine the number of items before printing to select the appropriate paper-plastic bag, and issue a reminder before sealing when the width of the paper-plastic bag is insufficient.
