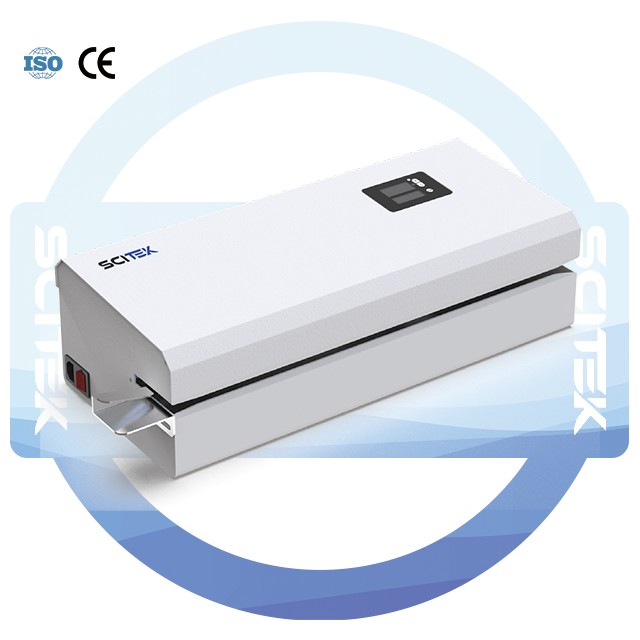

Automatic Sealing Machine, SM-A Series

The SM-A series automatic sealing machine enables continuous and consistent pouch sealing with precise temperature control accurate to ±1°C.

  • Model: SM-A10; SM-A40
  • Sealed Seam Width: 12 mm
  • Sealing Speed: ≥10 m/min
  • Margin: 0–35 mm; 0–40 mm
  • Sealing Temperature Range: RT to 220 ℃

Share the product


Warning: call_user_func_array() expects parameter 1 to be a valid callback, function 'wpb_pcf_contact_form_button' not found or invalid function name in /www/wwwroot/www.scitekuae.com/wp-includes/class-wp-hook.php on line 341

The SM-A series automatic sealing machine enables continuous and consistent pouching, features a much faster sealing velocity, and has no limit on the width of pouches to be sealed.

Automatic Sealing Machine Feature:

  • Capable of sealing both PE/paper and Tyvek pouches.
  • Employs automatic, high-speed continuous heat sealing to enhance packaging efficiency.
  • Features a concise and intuitive digital display with push-button controls.
  • Precision temperature control ensures compliance with relevant regulatory requirements; temperature range spans from ambient to 220 °C, with operational accuracy maintained within ±1 °C.
  • Integrated overheating protection activates automatically upon exceeding the preset upper temperature limit.
  • Standby mode extends equipment service life and reduces energy consumption; standby duration and temperature are independently adjustable.
  • High-temperature ceramic heating plate offers exceptional thermal resistance, rapid and uniform heat-up performance.

Automatic Sealing Machine Specification:

Model SM-A10 SM-A40
Sealed Seam Width 12 mm
Sealing Speed ≥10 m/min
Margin 0–35 mm 0–40 mm
Display Digital tube 7-inch touch screen
Control Button Touch Screen
Printer NA Yes, Double line dot-matrix printing (can be disa-bled)
Shell Powder coated carbon steel
Sealing Temperature Range RT to 220 ℃
Sealing Temperature accuracy ±1 ℃
Heating Speed Heat to 180 ℃ within 40s (only for 220 V power supply)
Power Supply 220 V, 50 Hz; 110 V, 60 Hz
Power 400 VA
Size (W×D×H) 535×232×188 mm
N.W. 14 kg
