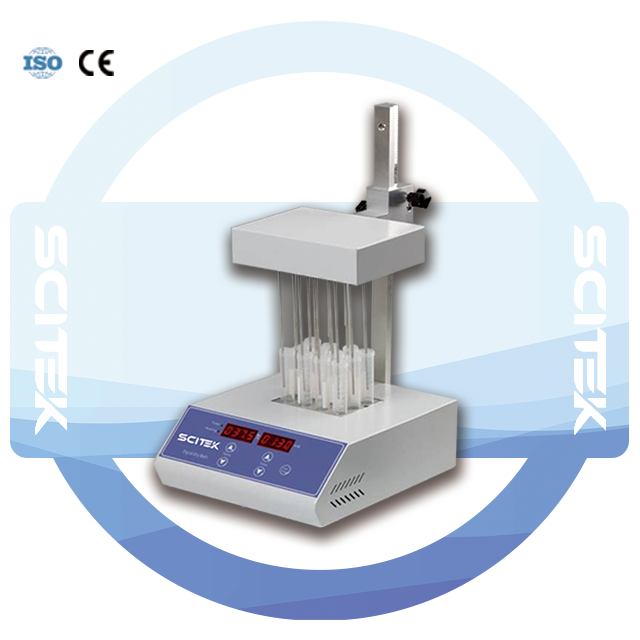

The sample concentrator is suitable for a wide range of sample types, including cell culture supernatants, solutions and suspensions.
| Model | SC-1001 | SC-1002 |
| Temp. Setting Range | 0℃-160℃ | |
| Temp. Range | RT.+5°C-160°C | |
| Temp. Accuracy | ±0.5℃ (At 40℃), ±1℃ (At 120℃) | |
| Temp. Uniformity | ±0.5℃ | |
| Display Accuracy | 0.1℃ | |
| Time Range | 1-99h59min | |
| Heating Time | ≤15min (From 25℃ to 160℃) | |
| Needle Length | 150mm | |
| Nitrogen Flow Rate | 15L/min | |
| Max Gas Pressure | 0.02Mpa(Gas pin≤16pcs), 0.05Mpa(Gas pin＞1pcs) | |
| Block Qty | 1 | 2 |
| Max Consumption | 300W | 500W |
| Power Supply | AC220/110V, 50/60Hz | |
| Size (W×D×H)(mm)(Without the Heating Block) | 260x220x450 | |
| Shipping Size(W×D×H)(mm) | 450x440x360 | |
| N.W./G.W. (kg) | 7/10 | 7/11 |
| Optional Blocks | ||
| Model | Tube diameter | Tube quantity |
| MD03 | 10mm | 24 |
| MD04 | 12mm | 24 |
| MD05 | 13mm | 24 |
| MD06 | 15mm | 16 |
| MD07 | 16mm | 16 |
| MD08 | 19mm | 12 |
| MD09 | 20mm | 12 |
| MD10 | 26mm | 8 |
| MD11 | 28mm | 4 |
| MD12 | 40mm | 3 |
| MD15 | 1.5ml(centrifuge tube) | 24 |
| MD16 | 2.0ml(centrifuge tube) | 24 |
