Automatic Rotary Evaporator

The rotary evaporator integrates advanced functionality with user-centric design, ideal for efficient and safe solvent recovery, concentration, and distillation processes in laboratories.

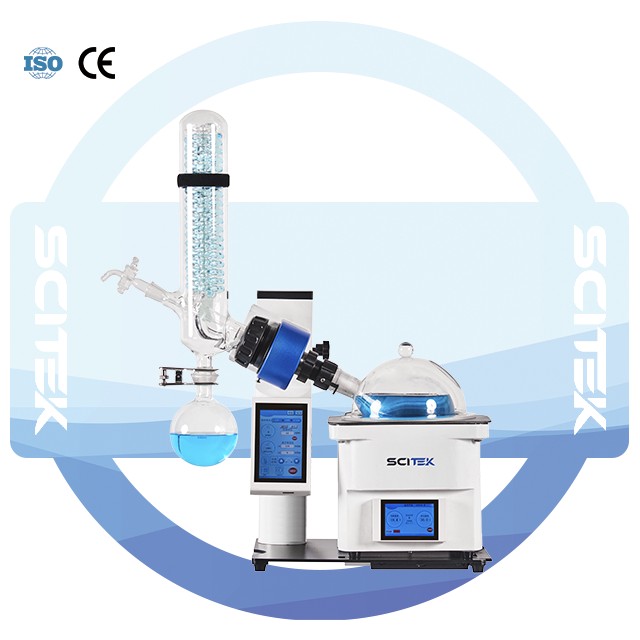

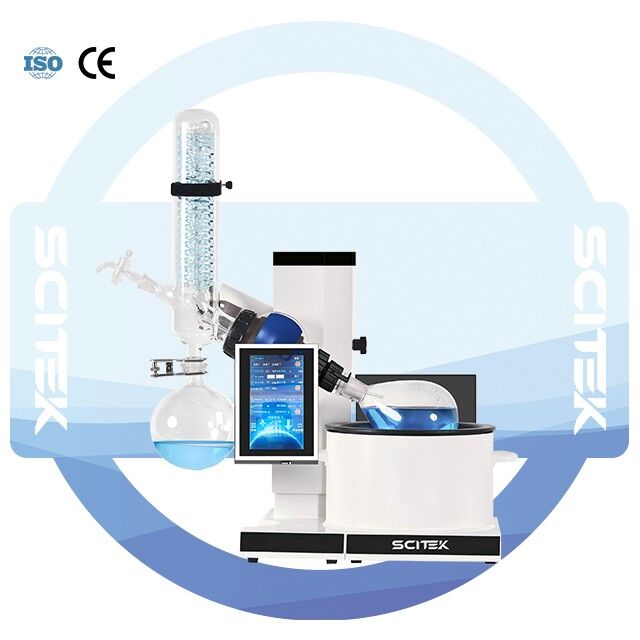

Model : RE-1000H; RE-2000H
Flask Capacity : 1000; 2000 mL
Rotation Speed : 0–310 rpm/min
Evaporation Capacity : Max. 25 mL/min
Temperature Range : Water bath: RT–99 °C ±0.5 °C; Oil bath: RT–210 °C ±2 °C

Share the product

Application:

The rotary evaporator is an advanced laboratory instrument designed for the efficient evaporation, concentration and distillation of solvents under controlled conditions. Suitable for use in research, pharmaceutical, food science and chemical industries, it is particularly useful for the precise and gentle evaporation of heat-sensitive substances. Offering both high performance and safety, this instrument streamlines laboratory workflows and improves productivity.

Advantage:

Common experimental data storage, one-button start, fast distillation, equipped with USB interface for data export and printing function.
Heating pot with Teflon coating, easy to clean, corrosion-resistant, high-temperature resistant, vertical design, condenser tube equipped with drip point and anti-backflow device.
Unattended safe operation mode, automatic standby after experiment completion, integrated glass rotating shaft, smooth start, capable of forward and reverse rotation.
Dedicated bottle removal knob design, simple and convenient bottle removal, dry-burn protection, overtemperature power-off warning, automatic standby protection.
Built-in vacuum control system, automatic pressure relief, convenient and quick setting, heating pot designed with safety handle to prevent scalding.
Compact and space-saving structure, sealing components: sealed imported PTFE special process mold synthesis.

Specification：

Model	RE-1000H	RE-2000H
Flask Capacity (mL)	1000	2000
Rotation Speed	0–310 rpm/min
Vacuum Control	0 to –0.1 MPa
Evaporation Capacity	Max. 25 mL/min
System Vacuum	2 mbar
Temperature Range	Water bath: RT–99 °C ±0.5 °C; Oil bath: RT–210 °C ±2 °C
Bath Material/Size	Teflon-coated Φ20×11.5 cm (approx. 3.5 L)
Lifting Stroke (mm)	130	150
Temperature Control	LCD Touchscreen
Temperature Setting	Rotary Type
Package Dimensions (mm)	670×500×465	710×645×510
G.W. (kg)	34	30
