- Model : WD-160; WD-190; WD-230; WD-230H; WD-320I; WD-320H; WD-680
- Capacity(L) : 158L/185L/223L/317L/317L/680L
- Standard Program : 30/10
- Drying System : Injection drying
- Size(W×D×H)(mm) : 640x726x778; 670×691×940; 670×760×1400; 670×757×1650; 1560×790×1980

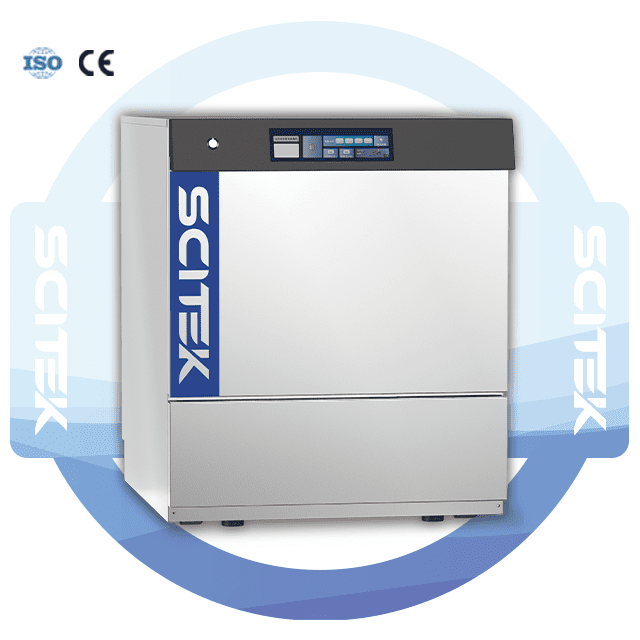

Automatic Glassware Washer, WD-160
Laboratory Glassware Washer provides a standardized cleaning solution, with a traceable cleaning process,protect the safety of operators. Start standardizing cleaning process in your laboratory.
Application:
Laboratory glassware washers can effectively clean a wide range of glassware, including beakers, flasks, test tubes, pipettes, burettes, and more. They can remove residues, contaminants, and other substances that may affect the accuracy and reliability of laboratory experiments.
Lab Glassware Washer Feature:
- Real-time graphical and digital display of water inflow, cleaning progress, stages, time/temperature changes, pipeline pressure, and other parameters.
- Customizable system software to meet specific customer needs, supporting hundreds of applications.
- Quick-launch programs can be configured on the desktop for easy access.
- Three optional password protection settings: Fingerprint, Password, or No Password.
Automatic Glassware Washer Specification:
| Model | WD-160 | WD-190 | WD-230 | WD-230H | WD-320I | WD-320H | WD-680 | |
| Capacity(L) | 158L | 185L | 223L | 223L | 317L | 317L | 680L | |
| Display | 8.8inch LCD Touch screen | 7inch LCD Touch screen | ||||||
| Standard Program | 30 | 10 | ||||||
| Self-defined Program | 120 | 10 | ||||||
| Searchable Data Files | Cleaning program files; Cleaning record files; Monitor files | |||||||
| Storage | No | SD card(32G) | SD card and USB disk (32G) | |||||
| Permission Management System | Three level | Four Level | ||||||
| Printer | No | Printer interface | Built in printer | |||||
| Drying | Drying System | No | Double spray and heat exchange system with air inlet HEPA filter | |||||
| Drying Time Range | No | 0 to 300mins | ||||||
| Drying Temp Range | No | RT to 120℃ | ||||||
| Drying Method | Chamber Forced Air Drying | Hot air injection via sprinkler (Circulation of hot air is not less than 110 m³/h) | ||||||
| Water Inlet pipe | Quantity | 2 | ||||||
| Length | Standard: 2m (Customizable) | |||||||
| Material | PVC | |||||||
| Water Pump | Brand | Sweden | ||||||
| Flow Rate | 0-400 L/min | 0-500 L/min | 0-600L/min | 0-800 L/min | 0-800 L/min | 0-1600 L/min | ||
| Consumption | 0.37kW | 0.75kW | 0.75kW | 0.75kW | 1.5kW | 1.5kW | ||
| Pipeline Pressure Monitoring | No | Yes | ||||||
| Structure Material | External | 304 stainless steel | ||||||
| Cleaning Chamber | 316 stainless steel | |||||||
| Door | Automatic multi-touch intelligent door. | |||||||
| In standby mode, there is a gap between the front door and the cavity to facilitate water vapor evaporation. Automatically locks when cleaning starts. | ||||||||
| Caster | Four universal casters at the bottom of the instrument for easy movement | |||||||
| Cleaning Rack | 1 layer | 2 layer | 2 layer | 2 layer | 3 layer | 3 layer | 6 layer | |
| Air Heating Consumption | 0.5kW | 3kW | 3kW | 3kW | 4kW | 4kW | 8kW | |
| Power Supply | 220/110, 50/60Hz | 220/110, 50/60Hz | 380/220V, 50/60Hz | 220/110V, 50/60Hz | 380/220V, 50/60Hz | |||
| Total Consumption | 5kW | 5kW | 5kW | 10kW | 5kW | 10kW | 21kW | |
| External Size(W×D×H)(mm) | 640x726x778 | 670×691×940 | 670×760×1400 | 670×760×140 | 670×757×1650 | 670×757×1650 | 1560×790×1980 | |
| Shipping Size (W×D×H)(mm) | 970x840x1350 | 990x860x1370 | 930x820x1620 | 890x880x1800 | 1680x910x2100 | |||
| N.W./G.W. (kg) | 135/150 | 135/160 | 200/230 | 240/270 | 630/750 | |||
