- Model : WD-120
- Capacity(L) : 120
- Dry Power(KW) : 2.1
- Water Consumption/Cycle(L) : 15
- Tank internal temperature (℃) : 0~99
- Water Supply Pressure (Mpa) : 0.3-1.0
- Chamber Size (WxDxH)(mm) : 629x600x465

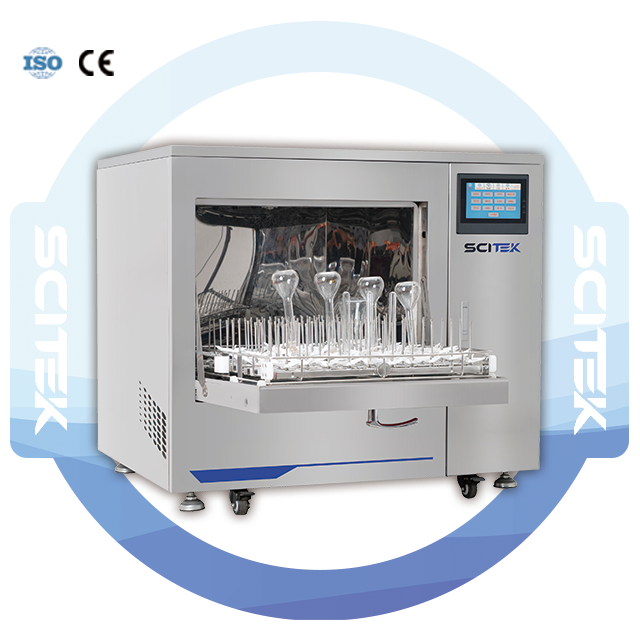

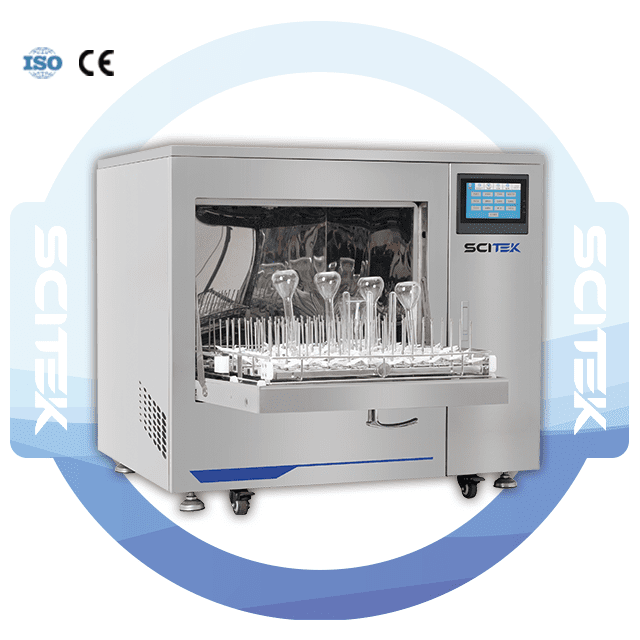

Automatic Glassware Washer WD-120
Laboratory Glassware Washer Features:
- Automated high-temperature, high-pressure water cleaning effectively removes organic residues and metal ions.
- Compact, lightweight design with corrosion-resistant stainless steel, ideal for small labs.
- Microcomputer control system with LCD screen for easy operation and customizable cleaning modes/parameters.
- Powerful imported pump ensures efficient cleaning, even water distribution, secure sealing, and rotating spray arms.
- Secure door lock with emergency release, alarms, and English prompts for safe operation.
Lab Glassware Washer Specifications:
Model | WD-120 | ||
Capacity(L) | 120 | ||
Display | 7inch LCD touch screen | ||
Standard Program | 12 (can free upgrade to 40 units) | ||
Self-defined Program | 99 (can free upgrade to 200 units) | ||
Data Files | Cleaning program files, cleaning record files, Monitor files | ||
Storage | Yes | ||
Permission management system | Three level | ||
Printer | No, with USB interface | ||
Drying | Drying system | Heat exchange system | |
Drying Time Range | 0 to 30 mins | ||
Drying Temp Range | RT to 120℃ | ||
Drying Method | Hot air injection via prinkler | ||
Water inlet pipe | Quantity | 2 | |
Length | 3m | ||
Material | PVC | ||
Flow Rate | 0-430L/min | ||
Consumption | 0.4kW | ||
Pipeline Pressure Monitoring | Yes | ||
Structure | Material | External | 304 stainless steel |
Cleaning chamber | 316 stainless steel | ||
Door | Dual-Point Electronic Control Door Lock | ||
Foot | Four universal casters | ||
Cleaning Layer | 1 layer | ||
Air Heating | 3kW | ||
Power Supply | 220/110V, 50/60Hz | ||
Consumption | 6kW | ||
Internal Size(W×D×H)(mm) | 600x629x539 | ||
External Size(W×D×H)(mm) | 980x740x870 | ||
Shipping size(W×D×H)(mm) | 1110×940×1075 | ||
N.W./G.W. (kg) | 169/200 |
