- Model : ST-EO80; ST-EO120; ST-EO120I; ST-EO220; ST-EO220I; ST-EO330
- Capacity : 21L/67L/103L/196L/294L/126L/192L
- Sterilizing Temp. : 36-55℃
- Product Form : Manual door vertical
- Heating Method : Electric heating
- Internal Size : Φ246×450; 585x275x422; 585x375x472; 705x505x552; 760x545x712; 700x450x400; 820x510x460

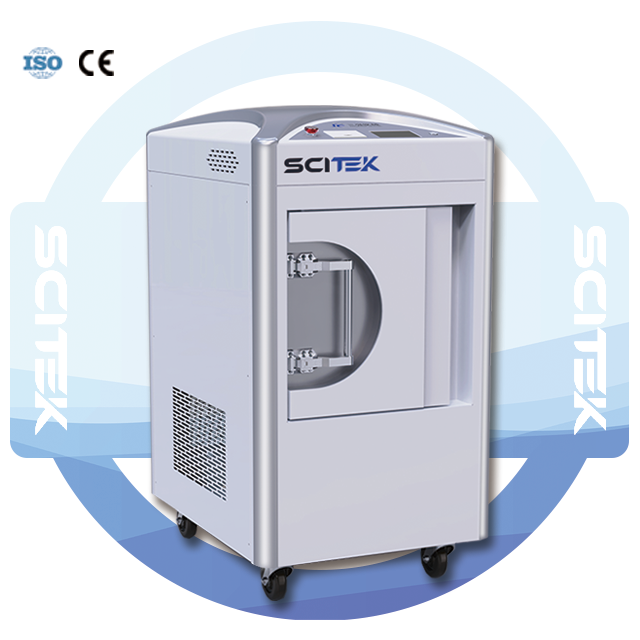

Automatic Ethylene Oxide Sterilizer
Ethylene oxide sterilization is the most efficient gas sterilization method, offering broad-spectrum efficacy, deep material penetration, item safety, low environmental impact, reliable testing, and easy post-sterilization storage.
Ethylene Oxide Sterilizer Features:
- The fully automatic control system enables one-click operation, managing the entire process seamlessly.
- The display provides real-time data on temperature, humidity, pressure, disinfection time, and gas treatment.
- Built-in sensors autonomously regulate chamber temperature, humidity, and pressure for optimal sterilization.
- The 5052 aluminum sealing door ensures durability with a strong 200Kpa pressure resistance.
Ethylene Oxide Sterilizer Specifications:
| Model | ST-EO80 | ST-EO120 | ST-EO220 | ST-EO330 | ST-EO120I | ST-EO220I |
| Capacity | 67 L | 103 L | 196 L | 294L | 126L | 192L |
| Sterilizing Temp. | 36-55℃ | |||||
| Product Form | Manual door vertical | |||||
| Heating method | Electric heating | |||||
| Display | 5’’ LCD Touch Screen | 7’’ LCD Touch Screen | ||||
| Controller | PLC | |||||
| Sterilizing Time | Adjustable 0-99 hour | |||||
| Sterilizer Pressure | -60kpa | |||||
| Sterilization Method | Low temperature, 100% Pure EO gas sterilization | |||||
| Safety Protection | Temperature and Pressure protection | |||||
| Tray | 2 stainless net steel | |||||
| Printer | Built-in Thermal mini-printer | |||||
| USB Port | Yes | |||||
| Internal Material | SS304 Stainless Steel | 5052 Aluminium, has better thermal conductivity than stainless steel | ||||
| External Material | Carbon steel | |||||
| Vacuum system | High-performance, low-noise, oil-free vacuum pump | |||||
| Humidity System | Use saturated steam to humidify the sterilization chamber, and the air humidity is more uniform | |||||
| Timing System | EO gas diffusion time and residual EO aeration timing settable | |||||
| Pre-set | Standard Sterilization Mode and Residual Washing | |||||
| Power Supply | 220V, 50Hz | |||||
| Consumption | 2.6KW | 3.0KW | 3.3KW | 3.6KW | 3.0KW | 3.6KW |
| Internal Size (mm) | 585x275x422 | 585x375x472 | 705x505x552 | 760x545x712 | 700x450x400 | 820x510x460 |
| External Size (mm) | 795x615x1140 | 795x615x1140 | 968x800x1240 | 968x800x1400 | 976x790x1715 | 976x790x1715 |
| Net Weight | 124kg | 147kg | 207kg | 227kg | 227kg | 247kg |
| Package Size (mm) | 970x770x1310 | 940x750x1310 | 1120x920x1400 | 1020x930x1530 | 1130x920x186 0 | 1130x920x1860 |
| Gross Weight | 150kg | 177kg | 237kg | 277kg | 274kg | 297kg |
Ethylene Oxide Sterilizer Packing:
The packaging of the ethylene oxide sterilizer is protected against impact to ensure safe and reliable transportation of the sterilization equipment to its destination. International standard transport packaging minimizes the risk of impact-related problems. Protects the sterilizer from any potential damage during transport.
WHY SCITEK
- 24 Months Limited Warranty
- Help meet CE quality assurance guidelines
- 1-2 Days Handling and 7-30 Days Shipping
