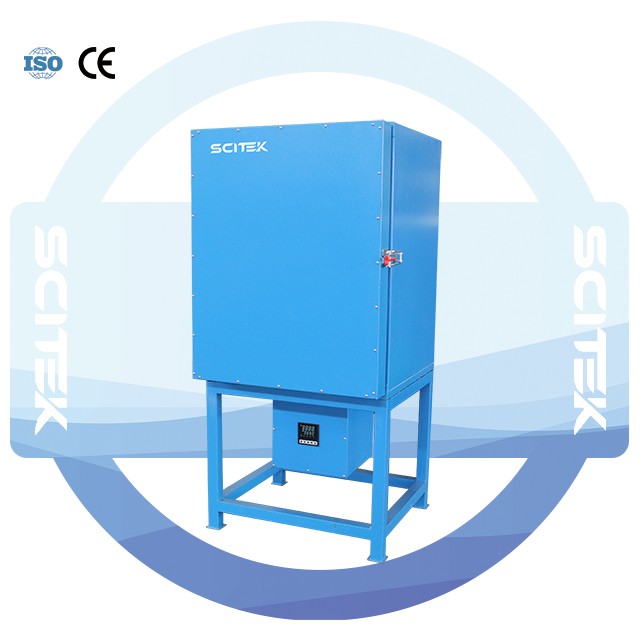

Ashing Calcining And Roasting Furnace

It was used for heating during processes such as quenching, annealing and tempering.

Model : RF-50
Temperature : 1000 ℃
Tray Material : 304 stainless steel
Consumption : 10.5 kW, Three-phase current.
Temperature Control : K-type thermocouples.
Quantity : 6 pcs with a pitch of 125 mm

Share the product

Application:

Ashing Calcining And Roasting Furnace is available in a range of sizes.It can be used for elemental analysis and determination in laboratories, industrial and mining enterprises, scientific research and other institutions and heating during quenching, annealing, tempering and other heat treatment.

Advantage:

Annealing with steel insulated cathodes.
Large capacity.
Adaptation to industry standards.
Easy to maintain and operate.
The chamber is built with refractory brick with high-temperature refractory mortar. It has the characteristics of less heat storage, less pollution and less heat dissipation. Compared with traditional refractory clay materials, it has the advantages of light weight and fast temperature rise.

Specification:

Model	RF-50
Construction	Cabinet	2 mm stainless steel grade 304, lined with fire bricks door covered vermiculite insulation
Construction	Exterior	Outer blue color Hammerdin enamel, installed on the floor of porcelain tiles 51×51×2.6 mm. dimensions
Inner Dimension (W×D×H)	600×600×810 mm
Heating Element	Elements	“A1” Kanthal spiral elements laid in the recesses of the furnace walls. The elements consume
Heating Element	Consumption	10.5 kW, Three-phase current.
Temperature Control	Electronic automatic control 1000 ℃, K-type thermocouples.
	Solid State Relays with Proportional-Integral-Derivative (PID) regulation.
	Countdown timer for 24 hours
Racks	Material	Made of a 25×25×3 mm 304 stainless steel corner
Racks	Quantity	6 pcs with a pitch of 125 mm
Tray	Material	Made of 2 mm sheet
		304 stainless steel
	Size	500×500×50 mm (W×D×H)
Overall Dimensions (W×D×H)	800×840×1700 mm
Power Supply	AC 380 V, 50/60 Hz
Package Size (W×D×H)	1030×1100×1930 mm, 450 kg
