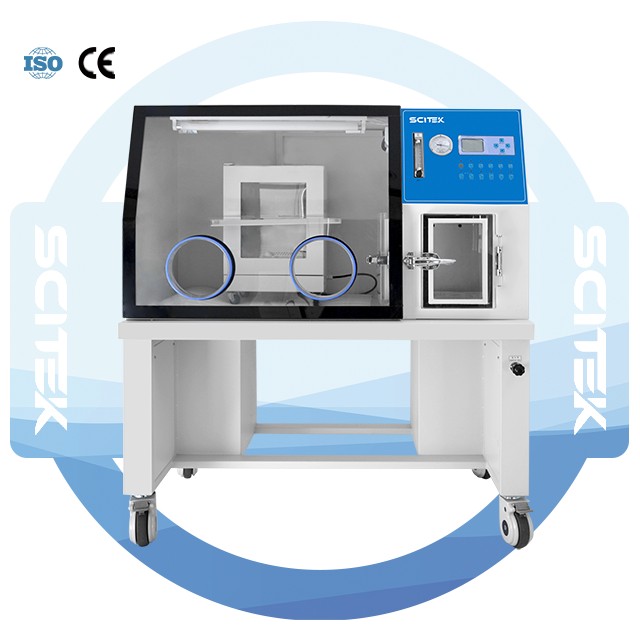

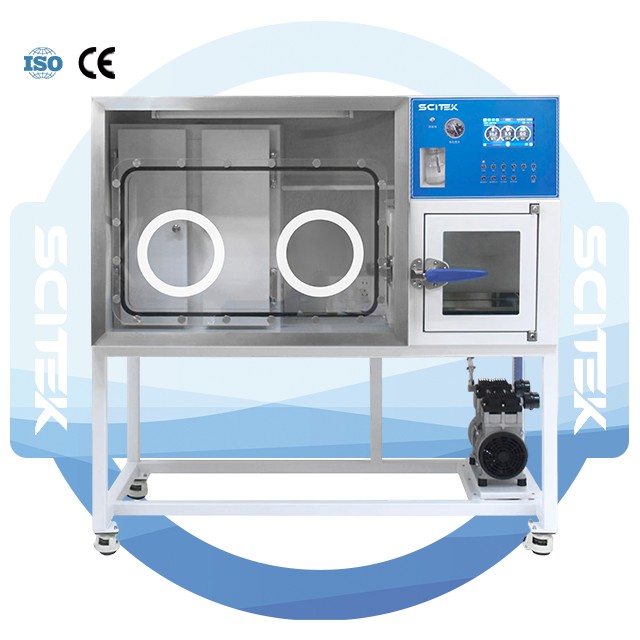

Anaerobic Incubator ICB-3AM, ICB-3AF

Anaerobic incubator is a specialized device for bacterial cultivation and operation under anaerobic conditions.

Model : ICB-3AM; ICB-3AF
Temperature Range : RT+3°C to 50°C; RT+3°C to 60°C
Temperature Stability : ≤±0.3°C
Temperature Uniformity : ≤±1°C
Display Resolution : 0.1°C

Share the product

Advantage:

This product consists of a constant temperature incubator, anaerobic operating room, sampling room, gas and circuit control system, box rack, bottle rack, wax melting sterilizer, and etcs.
By combining different components of mixed gases, stable extreme anaerobic, microaerophilic, and hypoxic environments can be formed, flexibly creating different environments for microbial cultivation and use.
A microcomputer-based intelligent P.I.D. temperature controller ensures precise temperature control.
The material of the constant temperature incubator is SUS304 stainless steel.
Equipped with a foot switch allows for direct control of the operating room’s air supply and exhaust.
The operating room is equipped with a special inoculation rod sterilizer, wax melting disinfection device, and deoxygenation catalyst.

Economical Anaerobic Chamber Specifications:

Model	ICB-3AM	ICB-3AF
Time for Creating Anaerobic State in Sample Chamber	≤ 5 minutes	≤ 15 minutes
Time for Creating Anaerobic State in Operation Chamber	≤ 1 hour	≤ 1.5 hours
Operating Room and Sampling Room Form An Anaerobic Mode of Operation	Manual button switching	One click automatic execution
Temperature Range	RT+3°C~50°C	RT+3°C~60°C
Temperature Stability	≤±0.3°C
Temperature Uniformity	<±1℃
Display Resolution	0.1℃
Anaerobic Grade	Operating room O₂ content ≤ 1%	Operating room O₂ content ≤ 0.5%
Sampling Room Forms Anaerobic (Microaerophilic) Mode	Vacuum+gas displacement type (99.99% N₂ or a mixture of 5% H₂ + 10% CO₂ + 85% N₂)
Sampling Room Forms Anaerobic (Microaerophilic) Mode	Vacuum+gas displacement type (99.99% N₂ or a mixture of 5% O₂ + 10% CO₂ + 85% N₂)
Operating Room Forms Anaerobic (Microaerophilic) Mode	Vacuum+gas displacement type (99.99% N₂ or a mixture of 5% H₂ + 10% CO₂ + 85% N₂)	Gas displacement type (99.99% N₂ or a mixture of 5% H₂ + 10% CO₂ + 85% N₂)+microflow control
Operating Room Forms Anaerobic (Microaerophilic) Mode	Vacuum+gas displacement type (99.99% N₂ or a mixture of 5% O₂ + 10% CO₂ + 85% N₂)	Gas displacement type (99.99% N₂ or a mixture of 5% O₂ + 10% CO₂ + 85% N₂)+microflow control
Sterilization Method	UV sterilization lamp × 1
Consumption(W)	730	1500
Standard configuration	Oil pump, 2.5-inch LCD screen	Oil free pump, O₂ sensor, CO₂ sensor,7-inch LCD touch screen, USB interface
O₂ Concentration Display Range	/	0~21%
CO₂ Concentration Display Range	/	0~20%
Gas Supply Requirement	Gas purity 99.99%, 0.05Mpa, continuous supply
Working Environment Temperature	Applicable ambient temperature: 5~35°C; Optimal ambient temperature for performance: 15°C~30°C
Power Supply	AC 220/110V, 50/60Hz
Sampling Room Size (W×D×H)(mm)	330×230×320	400×330×320
Operating Room Size(W×D×H)(mm)	814×664×668	944×670×744
Cultivation Room Size(W×D×H)(mm)	250×194×285	420×290×475
Cultivate Indoor Volume（L)	13	57
External Size (W×D×H)(mm)	1200×730×1370	1400×688×1418
Packing Size (W×D×H)(mm)	1280×820×1510	1490×820×1590
G.W(kg)	194	270
